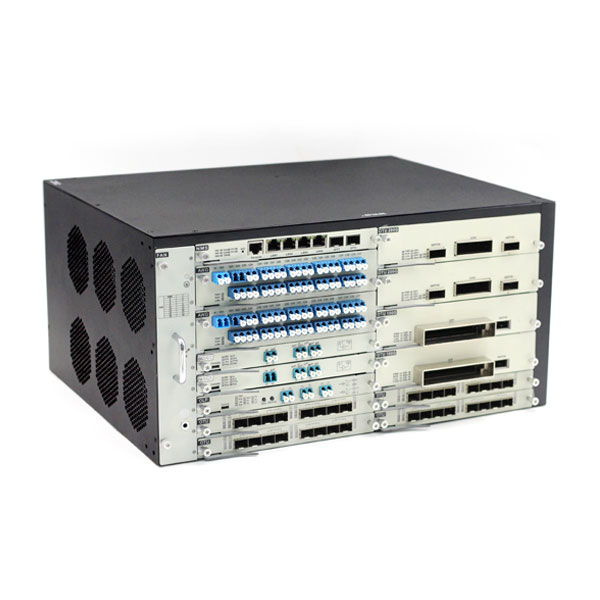

HTFuture HT6000-5U- DWDM, 5U DWDM Chassis Optical Networking platform

High-capacity optical networks need a platform that can handle multiple services, support network protection, and provide room for future expansion. The HTFuture HT6000-5U-DWDM is a 5U DWDM Chassis Optical Networking Platform designed for high-capacity optical transmission applications. It supports transmission capacity of up to 96x10Gbps or 96x100Gbps and provides support for OTU, MUX/DEMUX, EDFA, DCM, and OLP functions. If you need a flexible optical platform for managing different transmission services in one chassis, this solution gives you the capacity and service support needed for demanding DWDM network environments.

HTFuture HT6000-5U-DWDM, 5U DWDM Chassis Optical Networking Platform

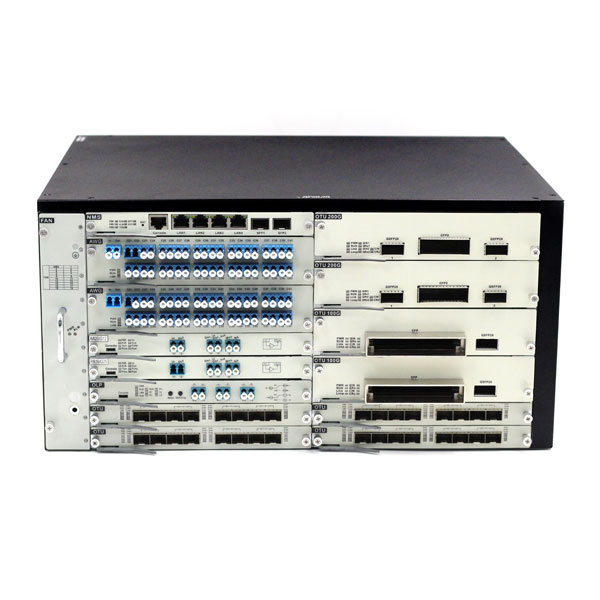

Managing several optical transmission services can become difficult when your network requires different data rates, fiber technologies, and protection functions. The HTFuture HT6000-5U-DWDM helps bring these functions together in a single 5U, 20-slot chassis. It supports 8-channel, 16-channel, 40-channel, and 48-channel MUX/DEMUX configurations, giving you flexibility for different optical network designs. The platform also supports a wide range of OTU services, including 1.25G to 10Gbps and 100Gbps transmission, Fibre Channel, CPRI, Ethernet LAN or WAN PHY, and STM-4/16/64 SONET/SDH. With optional AC220V or DC-48V dual power supply support and optical protection through OLP, it is designed for reliable operation in professional optical networking environments.

Benefits

• High transmission capacity: Supports up to 96x10Gbps or 96x100Gbps to handle high-bandwidth optical traffic.

• Flexible service support: Supports multiple protocols and transmission rates for different network requirements.

• Expandable chassis: The 20-slot design provides space for multiple service cards and network functions.

• Optical protection: OLP support helps provide an additional protection option for optical network links.

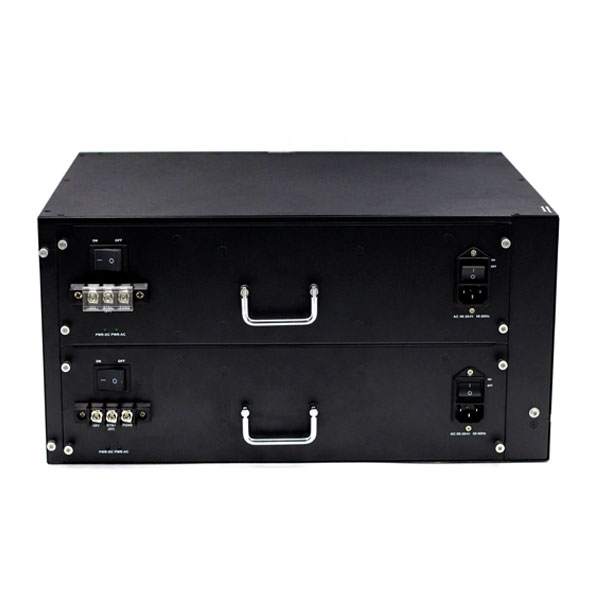

• Flexible power options: Dual power supply with AC220V or DC-48V options supports different installation requirements.

Usages

The HTFuture HT6000-5U-DWDM can be used in DWDM optical transport networks, telecom infrastructure, and high-capacity communication systems. It is suitable for environments where multiple optical services need to be managed through one centralized chassis. You can use it for Ethernet, Fibre Channel, CPRI, SONET/SDH, and other supported transmission services. The platform can also be used in network environments that require MUX/DEMUX, optical amplification, dispersion compensation, and optical protection.

Key Features

• 5U DWDM chassis design

• 20-slot chassis

• 96x10Gbps / 96x100Gbps transmission capacity

• EMS network management disk

• Supports 1.25G to 10Gbps and 100Gbps OTU

• Supports 1/2/4/8/10Gbps Fibre Channel

• Supports CPRI 2/3/4/5/6/7

• Supports 1G/10G Ethernet LAN or WAN PHY

• Supports STM-4/16/64 SONET/SDH

• Supports 8ch/16ch/40ch/48ch MUX/DEMUX

• EDFA erbium doped fiber amplifier

• DCM for G.652/G655 dispersion compensation

Specifications:
