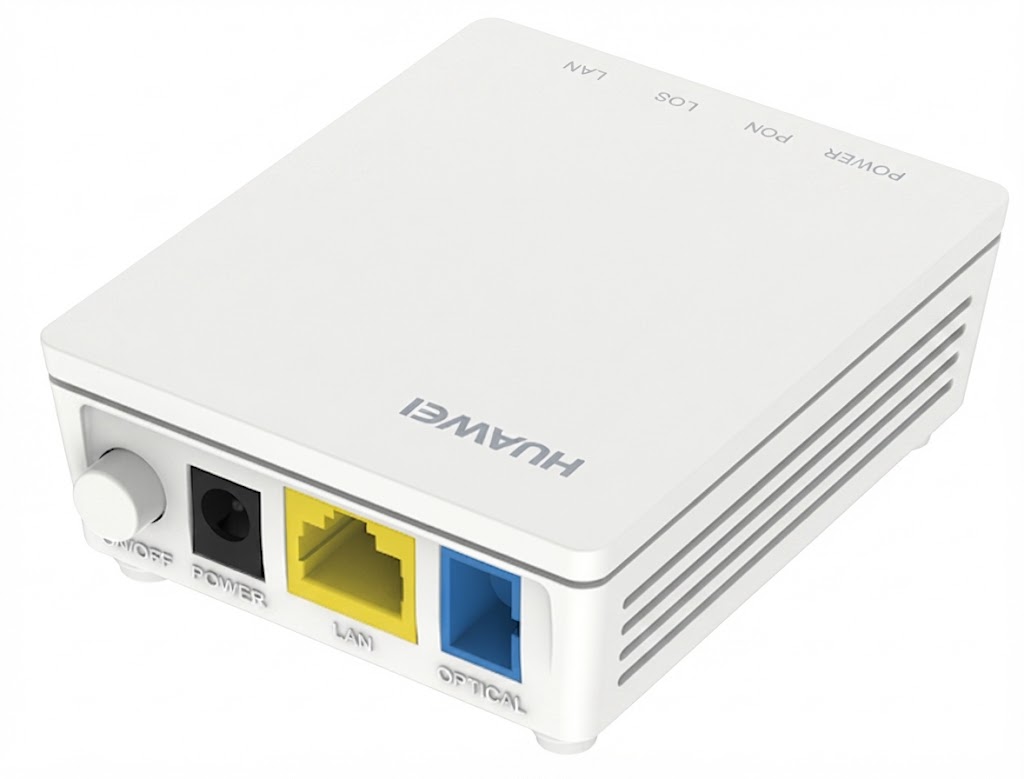

Huawei EchoLife HG8310M 1GE Bridging-type Optical Network Terminal with VOIP
Huawei EchoLife HG8310M is a compact bridging-type Optical Network Terminal designed for GPON fiber access and Ethernet connectivity. It provides a 1GE Ethernet port and supports GPON Class B+ optical access, making it suitable for broadband deployments requiring a simple and efficient fiber-to-Ethernet connection.
The HG8310M supports GPON upstream and downstream wavelengths of 1310 nm and 1490 nm, respectively, along with flexible GEM Port and TCONT mapping, GPON authentication, bidirectional FEC, and SR-DBA and NSR-DBA. These capabilities support efficient optical network access for residential and small-scale broadband applications.
Its Ethernet functionality includes VLAN tagging, 1:1 VLAN, N:1 VLAN, QinQ VLAN, VLAN transparent transmission, MAC address learning, and Ethernet port-based switching or isolation. QoS features such as Ethernet port rate limitation, 802.1p priority, SP/WRR/SP+WRR scheduling, and broadcast packet rate limitation help manage network traffic efficiently.
The Huawei EchoLife HG8310M includes MAC address filtering and power-saving functions that reduce power consumption through indicator and idle-component management. Its multicast capabilities include IGMP v2/v3 snooping, MLD v1/v2 snooping, and fast leave, supporting efficient multicast traffic handling in compatible network environments.
For network management and maintenance, the HG8310M supports OMCI and Web UI management, dual-system software backup and rollback, Ethernet OAM, optical link measurement and diagnosis, loopback checks, and rogue ONT detection and isolation. Its compact design and low power consumption make it suitable for indoor fiber broadband installations.
Key features
-
1GE Ethernet port for fiber-to-Ethernet connectivity
-
GPON Class B+ optical interface
-
1310 nm upstream and 1490 nm downstream wavelengths
-
Supports 1:1 VLAN, N:1 VLAN, QinQ, and VLAN transparency
-
Ethernet QoS with 802.1p and SP/WRR/SP+WRR
-
MAC address filtering and learning support
-
IGMP v2/v3 and MLD v1/v2 snooping
-
OMCI/Web UI and optical link diagnosis support
Specifications:
| Model |
EchoLife HG8310M |
| Dimensions (H x W x D) |
115 mm x 94 mm x 27 mm (V300R015C00 and earlier), 82 mm x 90 mm x 27 mm (V300R015C10) |
| Weight |
< 500 g |
| Operating Temperature |
0°C to +40°C |
| Operating Humidity |
5% RH to 95% RH (non-condensing) |
| Power Adapter Input |
100–240 V AC, 50/60 Hz |
| Static Power Consumption |
3 W (V300R015C00), 2 W (V300R015C10) |
| Maximum Power Consumption |
3.5 W (V300R015C00), 2.5 W (V300R015C10) |

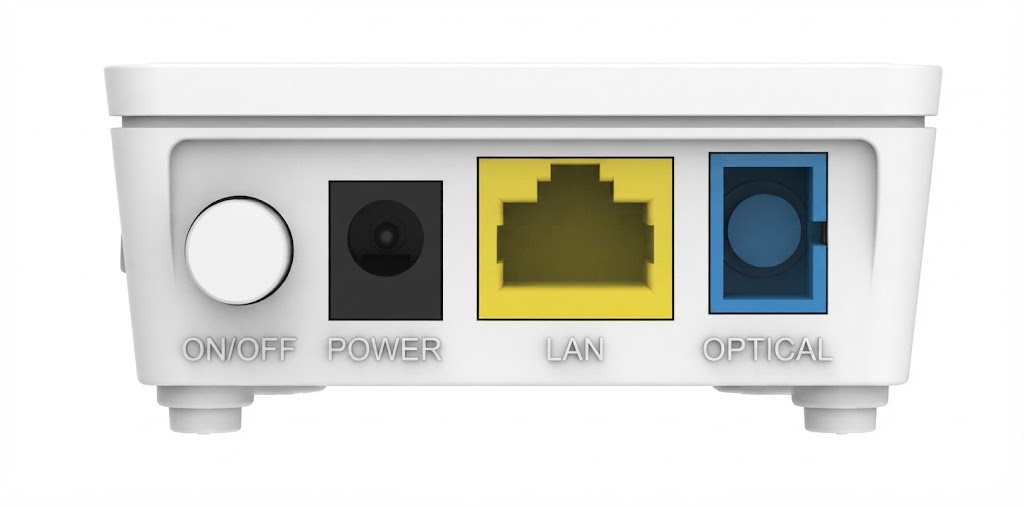

| Ports |
1GE |

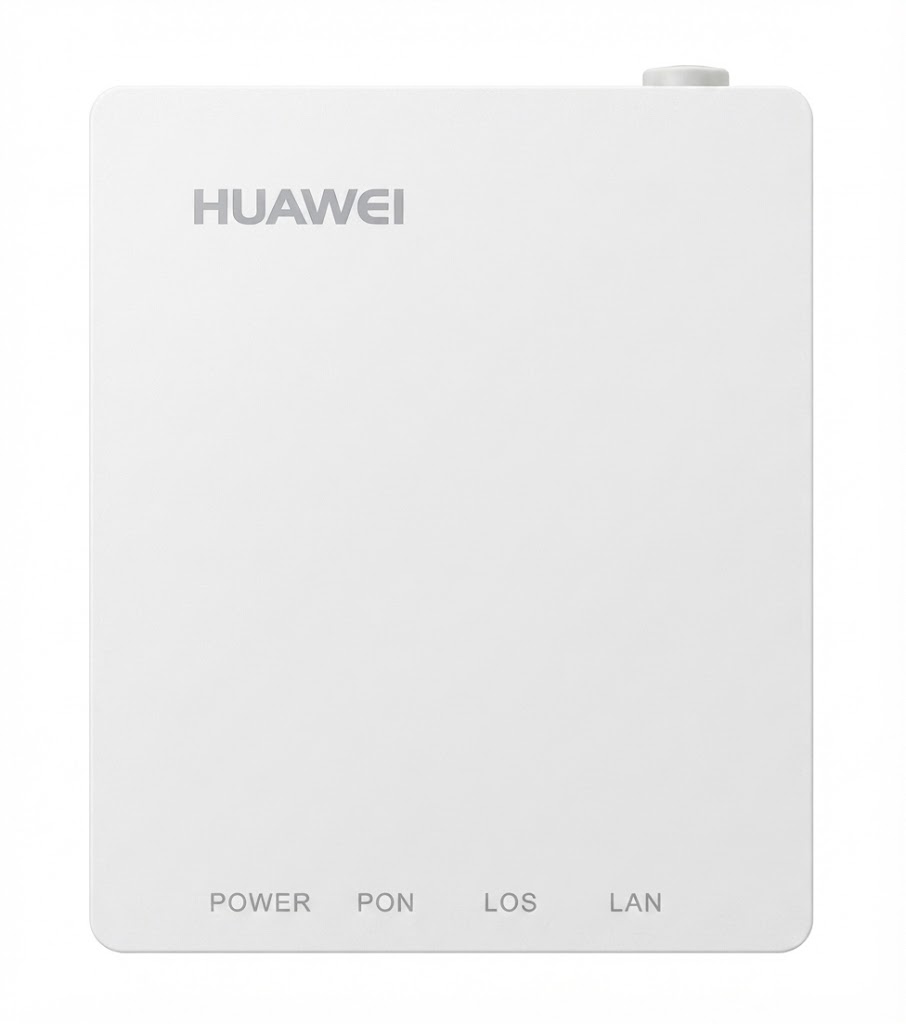

| Indicators |
POWER/PON/LOS/LAN |
| GPON Port |
● Class B+
● Receiver sensitivity: -27dBm
● Wavelengths: US 1310 nm, DS 1490 nm
● Wavelength blocking filter (WBF)
● Flexible mapping between GEM Port and TCONT
● GPON: consistent with the SN or password authentication defined in G.984.3
● Bi-directional FEC
● SR-DBA and NSR-DBA |
| Ethernet Port |
● Ethernet port-based VLAN tags
● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
● QinQ VLAN
● Limit on the number of learned MAC addresses
● MAC address learning
● Local switching/isolation based on Ethernet ports
● Transparent transmission of IPv6 packets at Layer 2 |
| QoS |
● Ethernet port rate limitation
● 802.1p priority
● SP/WRR/SP+WRR
● Broadcast packet rate limitation
● Flow mapping based on the VLAN ID, port ID, or/and 802.1p |
| Security |
MAC address filtering |
| Power Saving |
● Indicator power saving
● Power consumption reduction of idle components in power-saving state |
| Smart O&M |
● Variable-length OMCI messages
● Active/Passive rogue ONT detection and isolation
● PPPoE/DHCP simulation testing |
| Common O&M |
● OMCI/Web UI
● Dual-system software backup and rollback
● 802.1ag Ethernet OAM
● Optical link measurement and diagnosis
● Loopback check |
| Multicast |
● IGMP v2/v3 snooping
● MLD v1/v2 snooping
● Fast leave
|
