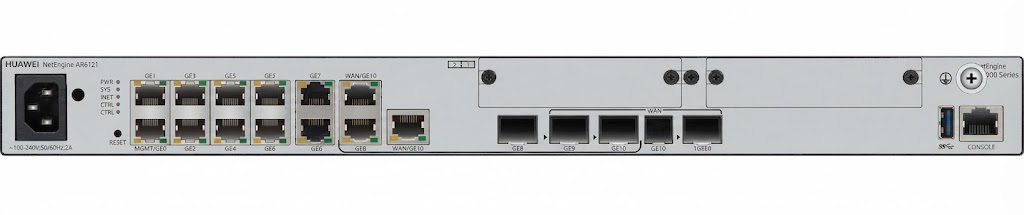

Huawei NetEngine AR6121 Router, 2Gbps SD-WAN Gateway, 1x10GE SFP+, 8xGE LAN
The Huawei NetEngine AR6121 is a 1U enterprise router and SD-WAN gateway designed for branch and business network connectivity. It combines Gigabit Ethernet interfaces with a 10GE SFP+ WAN port, providing flexible options for high-speed WAN and LAN deployments.
The AR6121 features one 10GE SFP+ WAN port, two GE combo WAN ports, eight GE electrical LAN ports, and one GE combo LAN port. It also provides two SIC slots for service expansion, along with a console port for device management.
Powered by a 1.4 GHz quad-core CPU, the router includes 2GB memory and 1GB NAND Flash. It supports rack, workbench, and wall installation while maintaining a compact 1U chassis with a depth of approximately 220.4 mm.
The router uses a built-in AC power supply supporting 100V to 240V rated input voltage and 90V to 264V input range. Its air-cooling system uses left-to-right airflow, while the operating temperature range is 0°C to 45°C under standard conditions.
Key Features
-
1U enterprise router and SD-WAN gateway
-
1x 10GE SFP+ WAN port
-
2x GE combo WAN ports
-
8x GE electrical LAN ports
-
1x GE combo LAN port
-
2x SIC expansion slots
-
1.4 GHz quad-core CPU with 2GB memory
-
1GB NAND Flash storage
-
Built-in AC power supply
-
Left-to-right air cooling
-
Rack, workbench, and wall installation support
Specifications
| Product |
|
| Description |
AR6121, 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB, 2*SIC |
| Part Number |
02353BVK |
| Model |
AR6121 |
| Installation |
|
| Installation Type |
Rack; Work bench; Against the wall |
| Chassis Height |
1 U |
| Dimensions |
|
| Dimensions Without Packaging |
Basic dimensions: 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) |
| |
Maximum dimensions: 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.) |
| Dimensions With Packaging |
90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.) |
| Weight |
|
| Weight With Packaging |
4.6 kg (10.12 lb) |
| Weight Without Packaging |
3.2 kg (7.04 lb) |
| Processor & Memory |
|
| CPU |
1.4 GHz, 4 Cores |
| Memory |
2 GB |
| NAND Flash |
1 GB |
| Interfaces |
|
| Console Port |
RJ45 |
| RTC |
Supported |
| LAN Ports |
8 x GE electrical, 1 x GE combo |
| WAN Ports |
1 x 10GE SFP+, 2 x GE combo |
| Expansion |
|
| Number of Service Board Slots |
2 |
| MIC Slots (Default/Maximum) |
0/0 |
| SIC Slots (Default/Maximum) |
2/2 |
| WSIC Slots (Default/Maximum) |
0/1 |
| XSIC Slots (Default/Maximum) |
0/0 |
| System Features |
|
| Redundant MPUs |
Not supported |
| RPS Input |
Not supported |
| PoE |
Not supported |
| IP Rating |
IP20 |
| MTBF |
30.50 years |
| MTTR |
2 hours |
| Power |
|
| Typical Power Consumption |
27 W |
| Maximum Power Consumption |
31 W |
| Power Supply Mode |
AC built-in |
| Number of Power Modules |
1 |
| Rated Input Voltage |
100 V to 240 V, 50 Hz/60 Hz |
| Input Voltage Range |
90 V to 264 V, 47 Hz to 63 Hz |
| Maximum Input Current |
2 A |
| Maximum Output Power |
60 W |
| Redundant Power Supply |
Not supported |
| Cooling |
|
| Types of Fans |
Built-in |
| Number of Fan Modules |
1 |
| Heat Dissipation Mode |
Air cooling |
| Airflow |
Left-to-right airflow |
| Noise at Normal Temperature |
49.6 dB(A) |
| Operating Environment |
|
| Long-term Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Long-term Operating Relative Humidity |
5% RH to 95% RH, non-condensing |
| Long-term Operating Altitude |
< 5000 m (16404.2 ft.) |
| Storage Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Overtemperature Alarm |
Supported |
