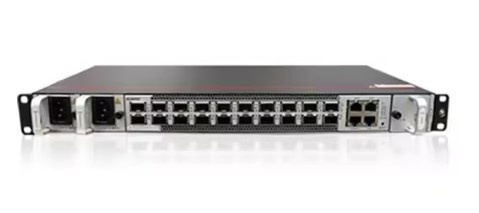

Huawei OptiXaccess EA5801E-FL16 Box-shaped Optical Line Terminal (OLT)
Huawei OptiXaccess EA5801E-FL16 is a box-shaped Optical Line Terminal designed for high-capacity fiber access networks. With 16 Flex-PON service ports and 4 GE/10GE upstream ports, it provides a flexible platform for deploying GPON and XG(S)-PON access services in enterprise, broadband, and telecom environments.
The EA5801E-FL16 delivers a system switching capacity of 240 Gbit/s and supports access for up to 2048 ONTs. It also provides 32,768 MAC addresses, an IPv4 routing table of 8192 entries, an IPv6 routing table of 4096 entries, and an ARP table of 16,384 entries to support large-scale network deployments.
Its 16 Flex-PON ports allow network operators to build flexible fiber access infrastructure while the 4 GE/10GE upstream ports provide high-speed connectivity toward the aggregation or core network. The combination makes the Huawei OptiXaccess EA5801E-FL16 suitable for broadband access, enterprise connectivity, and other high-density optical networking applications.
The OLT supports both AC and DC power supply modes with dual backup, helping improve power availability in network deployments. It is designed to operate across an ambient temperature range of –40°C to +65°C and supports environments with 5%–95% RH humidity and altitudes below 4000 m.
The Huawei OptiXaccess EA5801E-FL16 also provides high system reliability, with typical configuration system availability above 99.999%. Its compact box-shaped design supports flexible installation while offering a maximum fully-loaded weight of 5 kg, making it suitable for space-conscious fiber access deployments.
Key features
-
16 Flex-PON service ports
-
4 GE/10GE upstream ports
-
240 Gbit/s system switching capacity
-
Supports up to 2048 access ONTs
-
32,768 MAC address capacity
-
Dual-backup AC or DC power supply
-
Up to 99.999% typical system availability
-
Operating temperature from –40°C to +65°C
Specifications:
| Parameters |
Huawei OptiXaccess EA5801E-FL16 |
| Dimensions (W x D x H) (mm) |
Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6
Including ETSI mounting ears: 535 x 220 x 43.6 |
| Maximum fully-loaded weight |
5 kg |
| Power supply mode |
• DC power supply (dual backup)
• AC power supply (dual backup) |
| Working voltage range |
• DC power supply: –38.4 V to –72 V
• AC power supply: 100–240 V |
| Rated voltage |
• DC power supply: –48 V/–60 V
• AC power supply: 110 V/ 220V |
| Maximum input current |
• DC power supply: 6 A
• AC power supply: 2.5 A |
| Ambient temperature |
–40°C to +65°C
The device can start up at a lowest temperature of –25°C.
NOTE
The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
| Ambient humidity |
5%–95% RH |
| Atmospheric pressure |
70–106 kPa |
| Altitude |
< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude. |
| System switching capacity |
240 Gbit/s |
| MAC addresses |
32768 |
| Access ONT |
2048 |
| IPv4 routing table |
8192 |
| IPv6 routing table |
4096 |
| ARP table |
16384 |
| Bit error rate (BER) in full load |
When FEC is enabled, the GPON BER is less than 10 e-10, and the XG(S)-PON BER is less than 10 e-12. |
| 10GE/GE upstream ports |
4 GE/10GE |
| Service ports |
16 Flex-PON |
| System reliability specifications |
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years
NOTE
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the EA5801E is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers. |
| Power consumption |
DC power supply:
• Static power consumption: 72W
• Typical power consumption: 127W
• Maximum power consumption: 228W
AC power supply:
• Static power consumption: 73W
• Typical power consumption: 128W
• Maximum power consumption: 229W |
