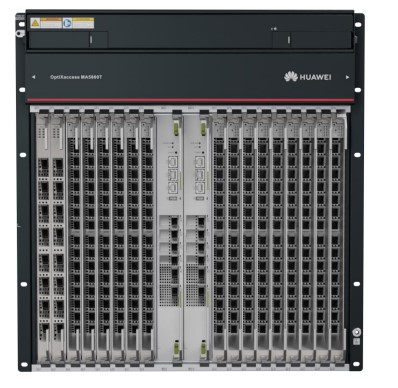

Huawei OptiXaccess MA5800T-X17 Standard 10G Optical Line Terminal (OLT)
The Huawei OptiXaccess MA5800T-X17 Standard is a high-capacity Optical Line Terminal designed for broadband access networks. It provides a modular platform with dedicated slots for control boards, service boards, upstream boards, GPIO boards, and power interface boards.
The MA5800T-X17 supports GPON, XG-PON, XGS-PON, and combo PON configurations, providing flexible options for deploying different optical access technologies. It supports up to 272 GPON ports, 272 XG-PON ports, and 272 XGS-PON ports.
For high-capacity network aggregation, the OLT provides upstream options including 4 x 10GE or 8 x GE, with dual control transmission. It supports a payload switching capacity of 4.16 Tbit/s in single frame mode and a maximum payload bandwidth per slot of 40 Gbit/s in service board mode.
The platform supports up to 34,816 connected ONTs and 786,432 MAC address entries, making it suitable for large-scale access deployments. It also provides up to 65,536 IPv4 routing entries and supports multiple multicast user configurations.
The Huawei MA5800T-X17 uses a redundant 1+1 DC power supply configuration with an operating voltage range of -38.4 V DC to -72 V DC. Its operating temperature range extends from -40°C to 65°C, with temperature derating considerations above 55°C depending on air temperature.
Key Features
-
Modular Huawei OptiXaccess MA5800T-X17 OLT platform
-
Supports GPON, XG-PON and XGS-PON technologies
-
Up to 272 GPON ports
-
Up to 272 XG-PON and XGS-PON ports
-
4.16 Tbit/s payload switching capacity
-
Up to 34,816 connected ONTs
-
Up to 786,432 MAC address entries
-
Redundant 1+1 DC power supply
Specifications:
| Supported cabinet |
A63E, N63E-22 |
| Slots |
Slots for control boards: 9 and 10
Slots for service boards/upstream boards: 1–8 and 11–19
Slot for the general-purpose input/output (GPIO) board: 0
Slots for power interface boards: 20 and 21 |
| H x W x D (mm) |
Without mounting ears: 554.00 x 493.00 x 287.00
With mounting ears: 554.00 x 535.00 x 287.00 |
| Maximum weight (with mounting ears) |
73.51 kg |
| Maximum input current |
Single-channel 60 A power supply for the entire subrack (1+1 backup) |
| Power supply mode |
DC power supply (1+1 backup) |
| Operating voltage range |
-38.4 V DC to -72 V DC |
| Rated voltage |
-48V/-60V |
| Operating temperature range |
-40°C to 65°C. The minimum startup temperature is -25°C.NOTE: If the air temperature is below 65°C,
the maximum operating temperature is 55°C.
|
| Operating humidity range |
5%–95% |
| Atmospheric pressure |
70–106 kPa |
| Altitude |
Below 4000 m. The air density varies with the altitude, which affects the heat dissipation capability of the device.
Therefore, if the operating altitude is above 2000 m, the temperature derating must be considered when configuring th
device.
|
| Payload switching capacity of the control board (single frame mode) |
UPL: 4.16 Tbit/s |
| Maximum payload bandwidth per slot (in service board mode) |
UPLAG: 40 Gbit/s |
| MAC address entries |
786432 |
| Connected ONTs |
34816 |
| Multicast users |
IPv4: 17408
IPv6: 17408 (VLAN/P2C: 0)
IPv6: 17408 (VLAN/P2C: 0) |
| IPv4 routing entries |
65536 |
| Upstream ports (dual control transmission) |
4 x 10GE/8 x GE 10GE/10GE+ |
| GPON ports |
272 |
| XG-PON ports |
272 |
| XGS-PON ports |
272 |
| XG-PON & GPON combo ports |
272 |
| Symmetric 50G-PON & XG-PON combo ports |
16 |
| Symmetric 50G-PON & GPON combo ports |
16 |
| 10GE/2.5GE/GE ports |
408 |
| GE/FE ports |
816 |
