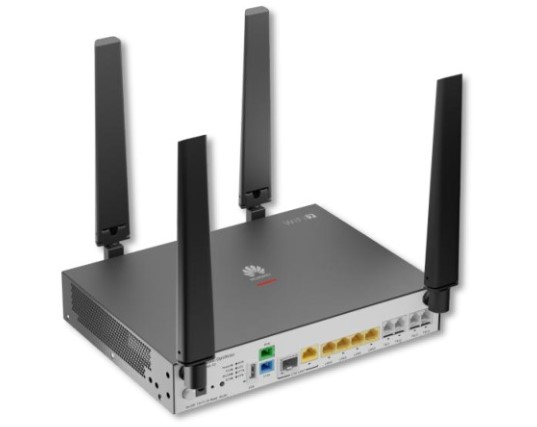

Huawei OptiXstar B866G-S2 Main FTTR XGS-PON/GPON Combo Optical Network Unit
Huawei OptiXstar B866G-S2 is a Main FTTR Optical Network Unit designed to provide flexible fiber connectivity through XGS-PON/GPON Combo network-side access. It combines high-speed fiber networking with Wi-Fi 7, Ethernet, POTS, PON, and USB connectivity for advanced indoor broadband deployments.
The Huawei OptiXstar B866G-S2 supports 2.5GE Combo interfaces, 4 GE ports, 4 POTS ports, 1 PON port, Wi-Fi 7, and USB 2.0. Its combo interface supports 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, and 2500 Mbit/s auto-sensing optical or electrical connectivity, with only one interface operating at a time.
With XGS-PON and GPON Combo support, the B866G-S2 can provide flexible fiber access for FTTR networks and broadband environments requiring different PON technologies. XGS-PON supports 9.953 Gbit/s upstream and downstream transmission, while GPON provides symmetric and asymmetric transmission options for diverse network requirements.
The integrated Wi-Fi 7 platform supports IEEE 802.11ax/be across 2.4 GHz and 5 GHz bands with 2x2 MIMO, multiple SSIDs, and air interface rates of up to 688 Mbps on 2.4 GHz and 2882 Mbps on 5 GHz. This makes the unit suitable for delivering wireless connectivity across indoor residential and broadband access environments.
The Huawei OptiXstar B866G-S2 also supports Type B single-homing and dual-homing protection on the XGS-PON/GPON upstream interface. Its indoor installation options include desktop, wall, 19-inch cabinet, and indoor network box deployment, providing flexibility for FTTR and fiber access installations.
Key features
-
XGS-PON/GPON Combo network-side interface
-
Wi-Fi 7 with 2.4 GHz and 5 GHz support
-
2x2 MIMO on 2.4 GHz and 5 GHz bands
-
2.5GE Combo plus 4 x GE interfaces
-
4 x POTS and 1 x PON user-side interfaces
-
XGS-PON transmission rate up to 9.953 Gbit/s
-
GPON symmetric and asymmetric transmission support
-
USB 2.0 interface and multiple indoor installation options
Specifications:
| Parameters |
Huawei OptiXstar B866G-S2 |
| Dimensions (H x W x D) |
43.6 mm x 250 mm x 180 mm(excluding antennas) |
| Weight (excluding adapter) |
About 1.25 kg |
| Rated input range of power adapter |
100–240 V AC, 50/60 Hz |
| System power supply |
12 V DC, 2 A |
| Static power consumption |
11 W |
| Typical power consumption |
18W |
| Maximum power consumption |
23 W |
| IP rating |
IP20 |
| Network-side interface |
XGS-PON/GPON Combo |
| User-side interface |
2.5GE(e)/2.5GE(o) COMBO+4*GE+4*POTS+1*PON+ Wi-Fi 7 +USB 2.0 |
| Operating temperature |
–10°C to + 40°C |
| Operating humidity |
5%–95% RH, non-condensing |
| Installation mode |
Indoor desktop, wall, 19-inch cabinet, or indoor network box
NOTE
• Do not install the device outdoors
• Do not install the device in an indoor environment with water intrusion risks |
| Fiber port |
Network side: SC/APC
User side: SC/UPC |
| Upsteam port |
Port type: SC/APC
XGS-PON
• Class N1, Na
• Receiver sensitivity: –28 dBm
• Overload optical power: –9 dBm
• Transmission rate: 9.953 Gbit/s upstream and 9.953 Gbit/s downstream
GPON
• Class B+;
• Receiver sensitivity: -27dBm;
• Overload optical power: -8dBm;
• Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s
Type B single-homing protection
Type B dual-homing protection |
| Downstream GPON port |
Port type: SC/UPC
GPON symmetric:
• Receiver sensitivity: -22dBm
• Overload optical power: 0dBm
• Transmission rate: 2.488 Gbit/ downstream and 2.488 Gbit/s upstream
GPON asymmetric:
• Receiver sensitivity: -23.5dBm
• Overload optical power: 0dBm
• Transmission rate: 2.488 Gbit/ downstream and 1.244 Gbit/s upstream |
| USB port |
USB2.0 |
| Wi-Fi |
• IEEE 802.11 ax/be (2.4GHz&5GHz)
• 2x2 MIMO (2.4 GHz & 5 GHz)
• Multiple SSIDs
• Air interface rate: 688 Mbps (2.4 GHz), 2882 Mbps (5 GHz)
• Antenna gain: 5 dBi (2.4 GHz), 7 dBi (5 GHz) |
| Combo port |
Supports 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, and 2500 Mbit/s auto-sensing optical/electrical Combo
interfaces. Only one interface can work at a time.
|
| LAN Port |
• 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s autonegotiation
• Standards compliance: IEEE802.3 |
| TEL Port |
• Transmission rate: 64 Kbit/s
• Standards compliance: ITU-T G.552 |
