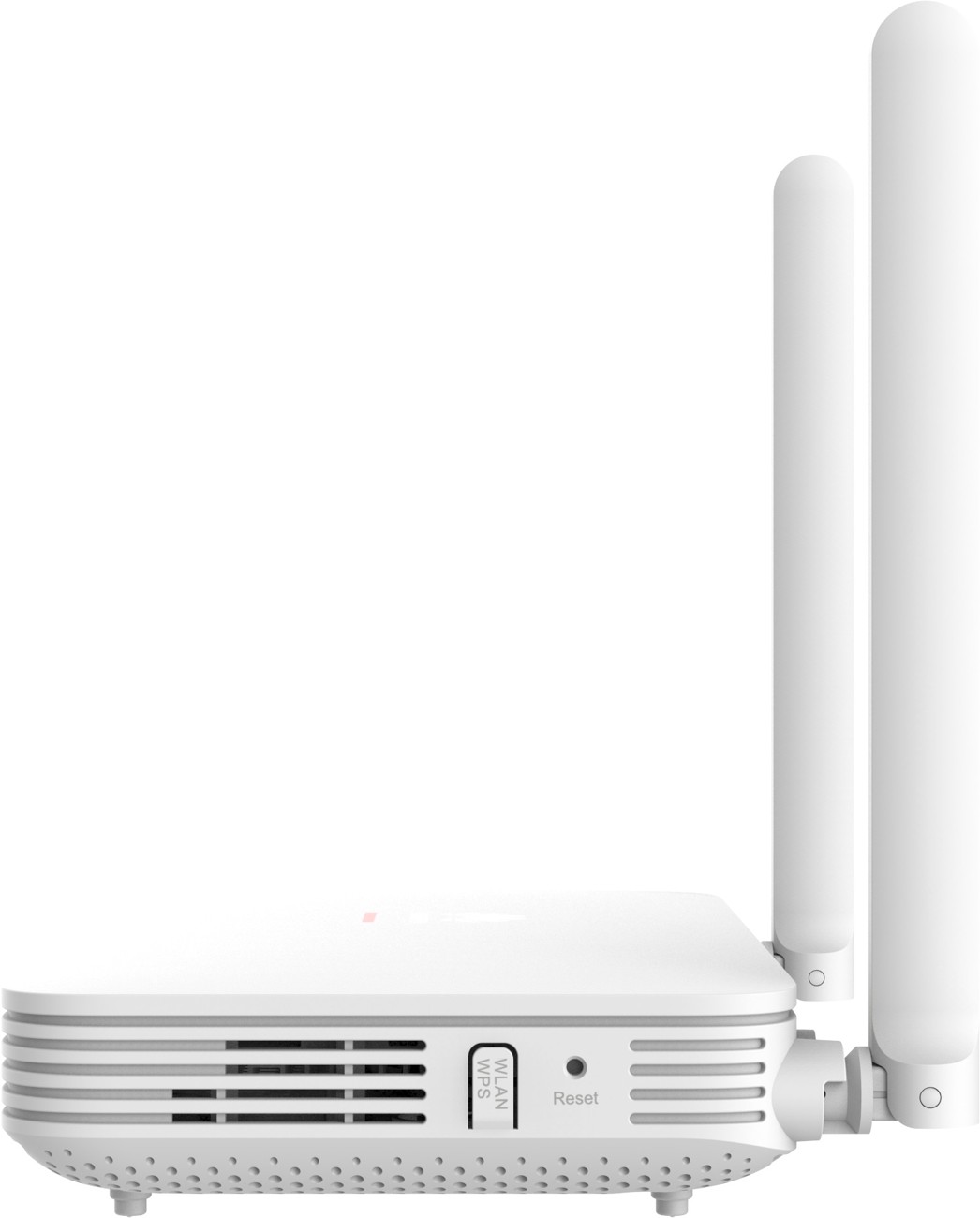

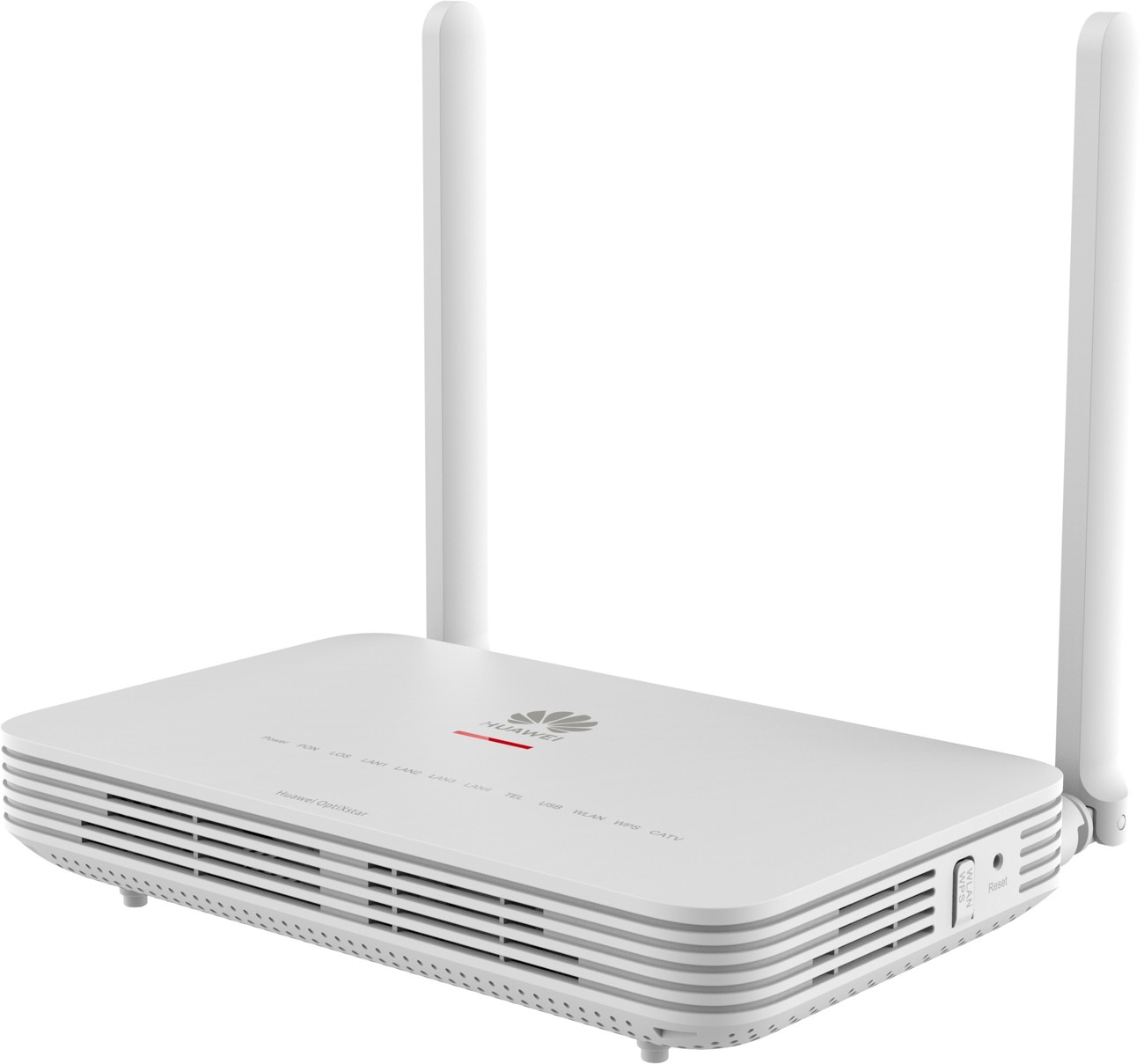

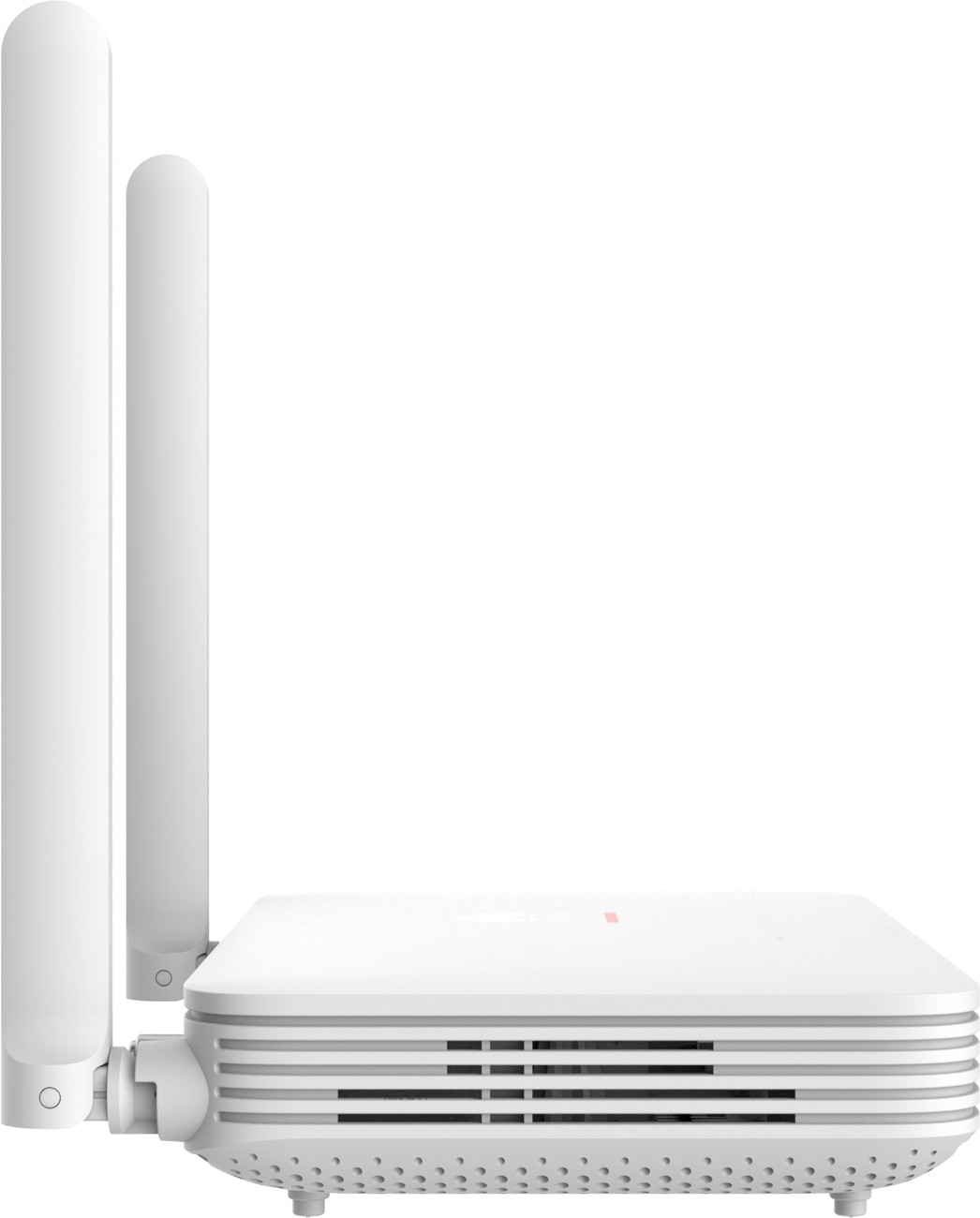

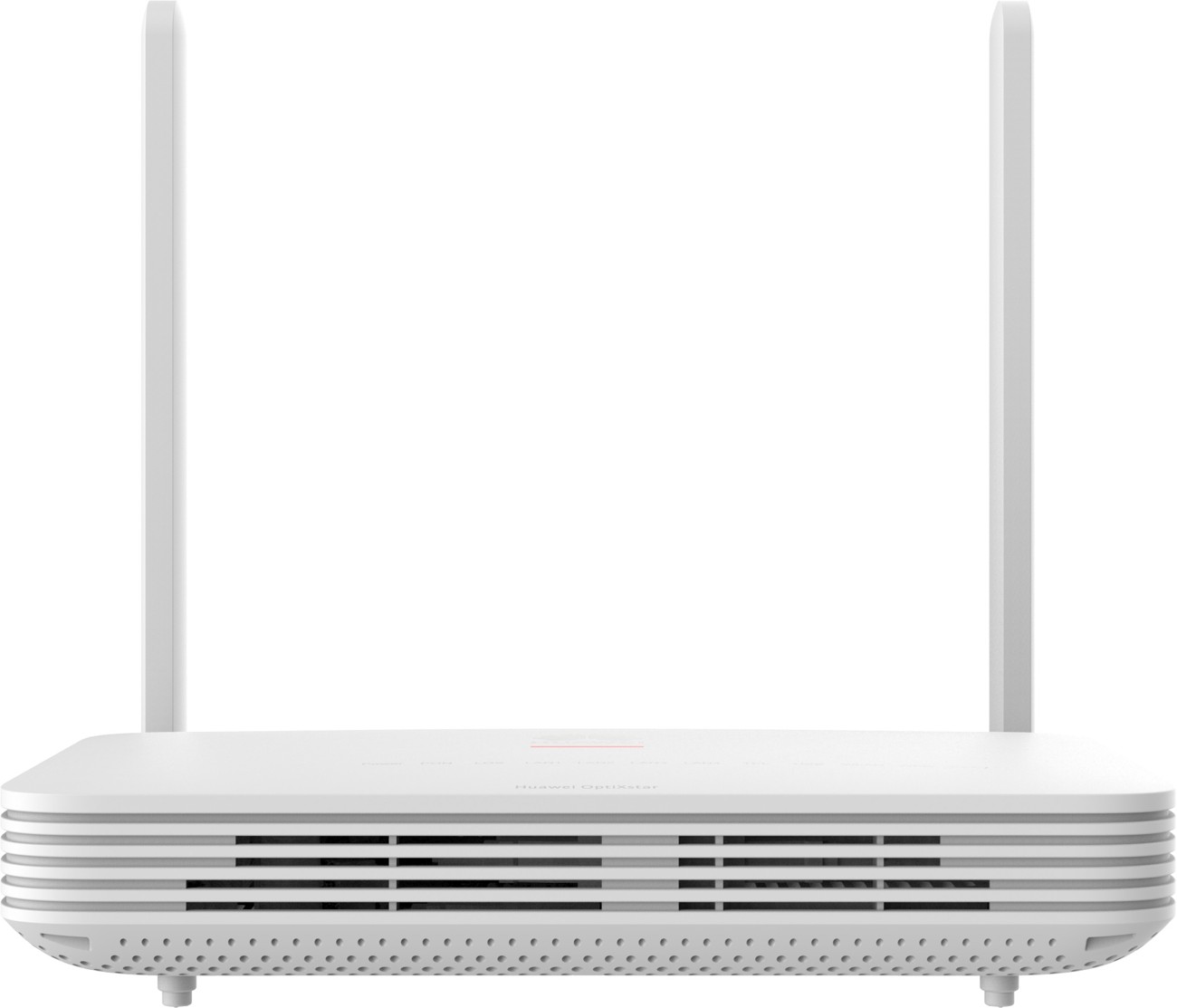

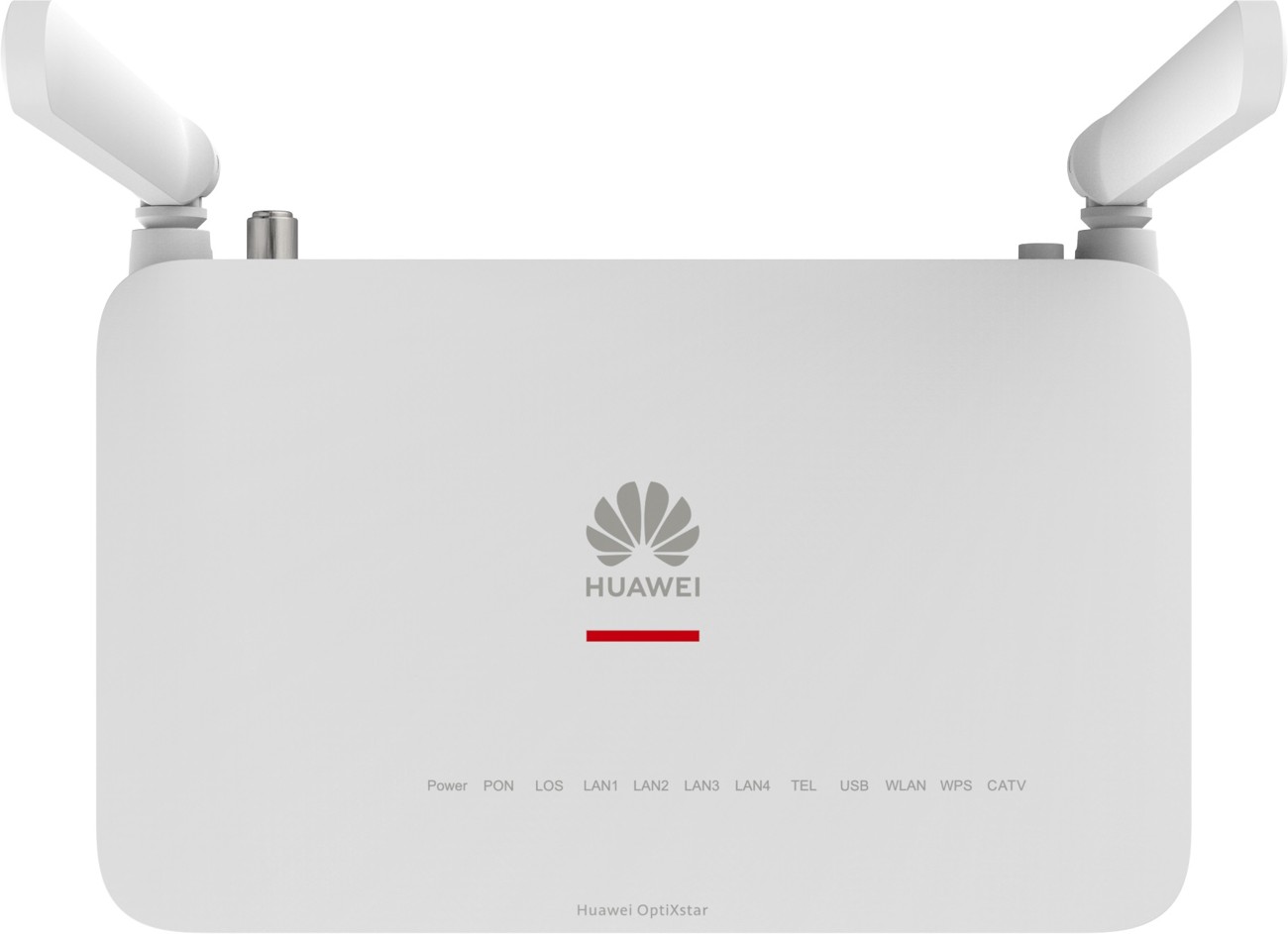

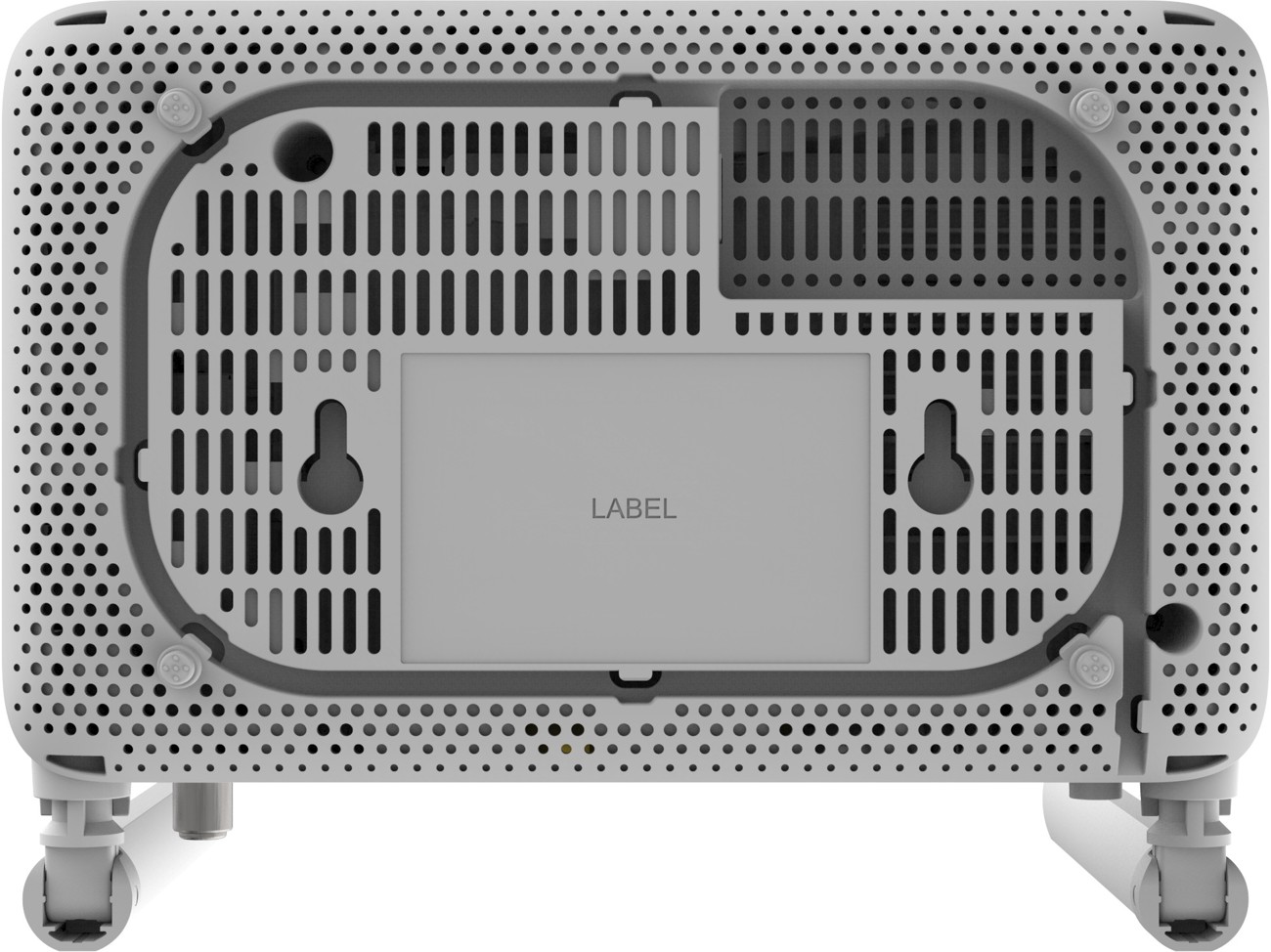

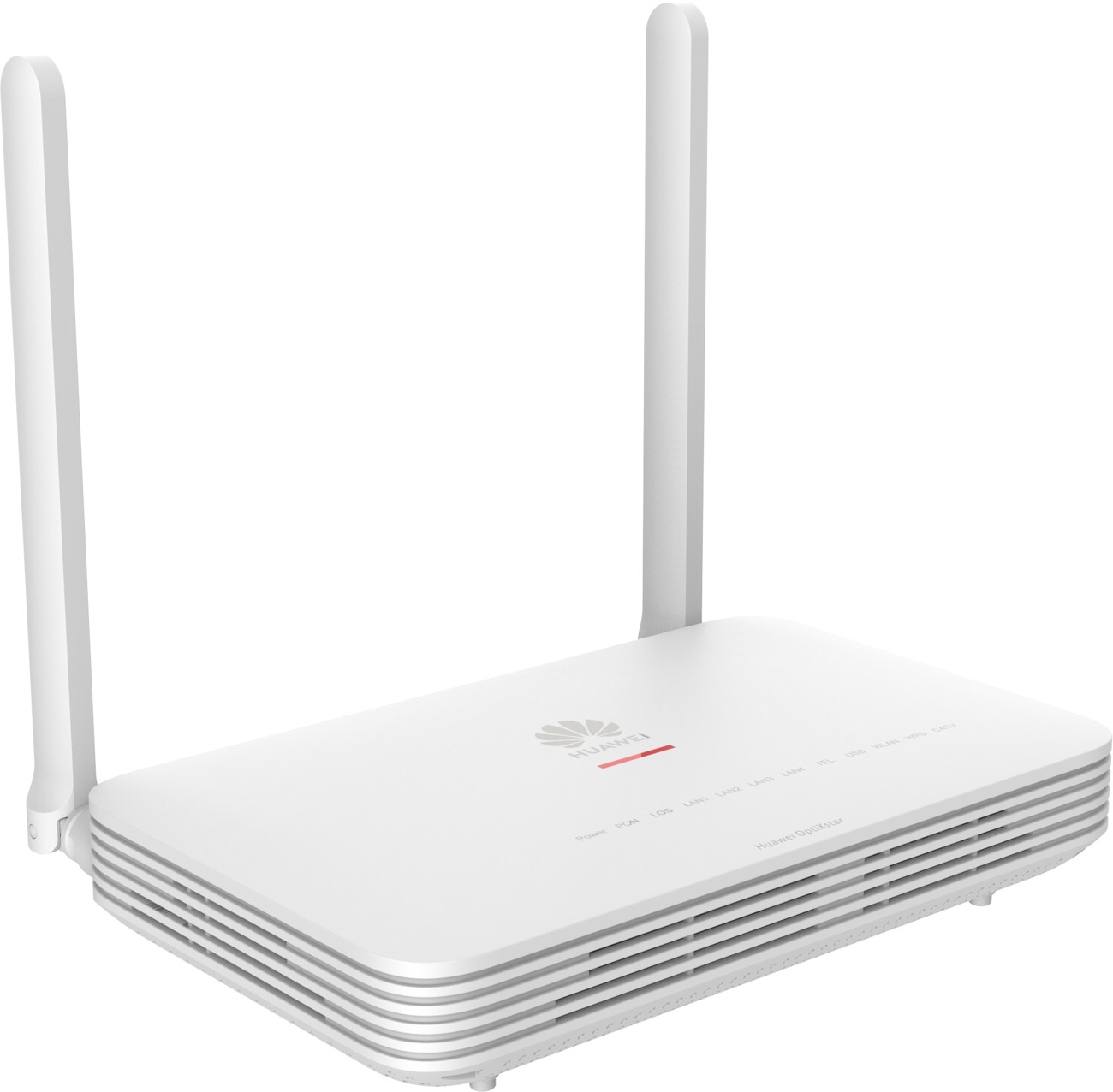

Huawei OptiXstar EG8147X6-10 GPON, Wi-Fi 6 Routing-type ONT

Huawei OptiXstar EG8147X6-10 GPON Wi-Fi 6 Routing-type ONT

The Huawei OptiXstar EG8147X6-10 is a GPON Wi-Fi 6 routing-type Optical Network Terminal designed for broadband access and intelligent home networking. It combines GPON connectivity, dual-band Wi-Fi, Ethernet interfaces, CATV, POTS, and USB connectivity in a compact terminal.

The EG8147X6-10 features next-generation Wi-Fi 6 technology with 2 × 2 MIMO, 1024QAM modulation, and 160 MHz frequency bandwidth. These technologies provide efficient wireless connectivity and support high-performance broadband applications across connected devices.

For smart service management, the Huawei OptiXstar EG8147X6-10 supports scheduled Wi-Fi shutdown, smart Wi-Fi sharing with Portal or 802.1x authentication, and SoftGRE-based sharing. Smart interconnection features include smart Wi-Fi coverage, SIP/H.248 auto-negotiation, any port any service, and parental control.

The ONT provides smart operation and maintenance functions including IPTV video quality diagnosis, eMDI, rogue ONT detection and isolation from the OLT, call emulation, circuit and loop-line testing, PPPoE/DHCP simulation testing, and WLAN emulation.

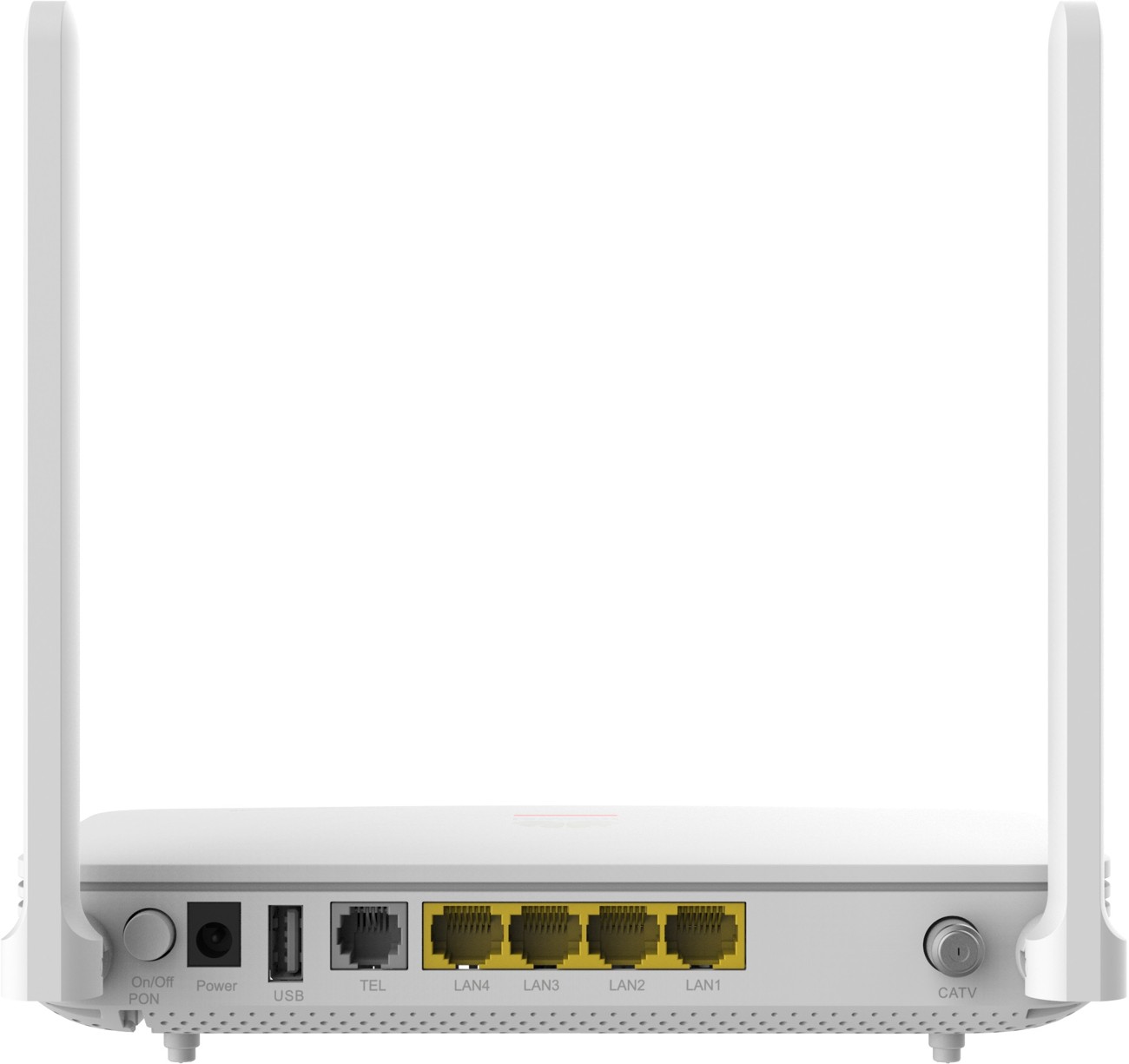

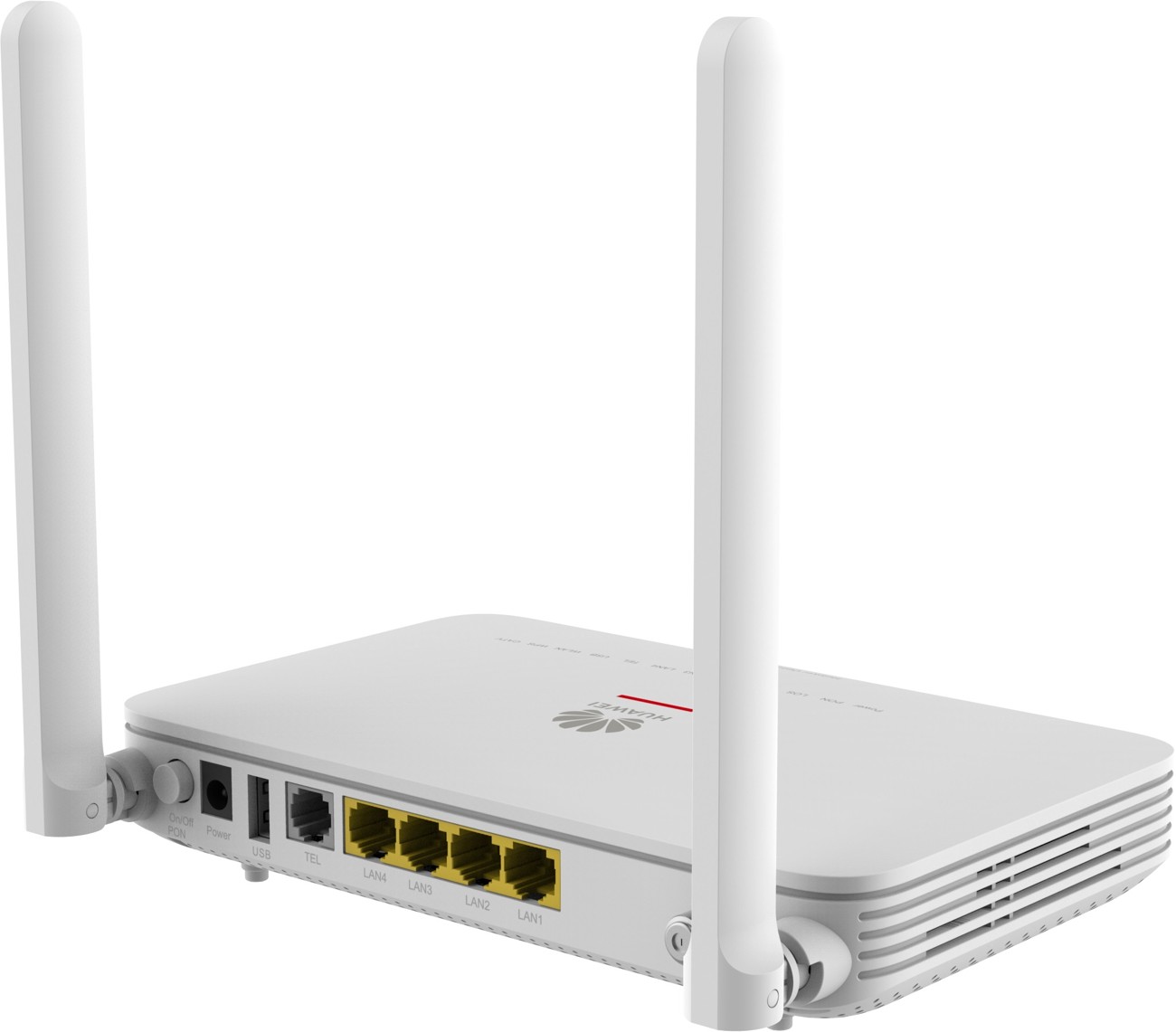

The Huawei OptiXstar EG8147X6-10 provides 4 × GE ports, 1 × POTS, 1 × CATV, Wi-Fi, and 1 × USB 2.0 interface. It uses an SC/APC optical connector, operates from 0°C to 40°C, supports 5% RH to 95% RH non-condensing humidity, and has 128MB Flash and 256MB RAM.

Key features

• GPON Wi-Fi 6 routing-type Optical Network Terminal

• 2 × 2 MIMO with 1024QAM modulation

• Supports 160 MHz frequency bandwidth

• 4 × GE, 1 × POTS, and 1 × CATV interfaces

• 1 × USB 2.0 and SC/APC optical connector

• Supports scheduled Wi-Fi shutdown and smart Wi-Fi sharing

• Rogue ONT detection and isolation from the OLT

• IPTV diagnosis, eMDI, WLAN emulation, and simulation testing

Specifications:
