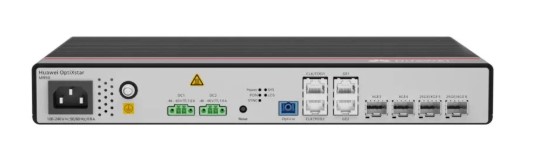

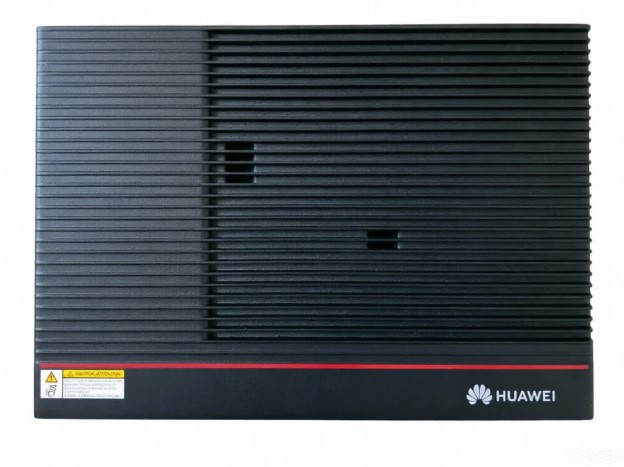

Huawei OptiXstar M990, 50G PON Optical Network Unit (ONU)
Huawei OptiXstar M990 is a high-capacity 50G PON Optical Network Unit designed for next-generation optical access networks. It provides 1 × 50G-PON network-side port and multiple high-speed user-side interfaces, making it suitable for demanding broadband, enterprise, and access network deployments.
The OptiXstar M990 provides 2 × 25GE/XGE/GE optical ports, 2 × XGE/GE optical/electrical ports, 2 × GE electrical ports, and 2 × clock ports. This combination offers flexible connectivity for high-speed network equipment while supporting different Ethernet interface requirements through a single 50G PON ONU.
Its 50G-PON interface supports symmetric transmission rates of 49.7664 Gbit/s upstream and downstream, as well as asymmetric transmission of 24.8832 Gbit/s upstream and 49.7664 Gbit/s downstream. The upstream interface uses an SC/UPC connector with Class N1 optics, providing a receiver sensitivity of −24 dBm and overload optical power of −3 dBm.
The Huawei OptiXstar M990 supports 25GE, XGE, and GE user-side connectivity for flexible network deployment. Its 25GE/XGE optical interface supports 1000/10000/25000 Mbit/s, while XGE optical/electrical interfaces support 1000/10000 Mbit/s. The electrical GE ports provide 10/100/1000 Mbit/s autonegotiation and IEEE 802.3 compliance.
Designed for reliable access network operation, the M990 supports Type B single-homing and Type B dual-homing protection. Its AC and dual DC power options, compact 320 × 220 × 43.6 mm chassis, and multiple interface configurations make it suitable for high-speed optical access and network aggregation environments requiring scalable connectivity.
Key Features
-
50G-PON Optical Network Unit for next-generation access
-
1 × 50G-PON BOB network-side port
-
2 × 25GE/XGE/GE optical user-side ports
-
2 × XGE/GE optical/electrical ports
-
2 × GE electrical RJ-45 ports
-
2 × electrical clock ports
-
Up to 49.7664 Gbit/s symmetric transmission
-
Type B single-homing and dual-homing protection
Specifications:
| Parameters |
OptiXstar M990 |
| Network-Side Port |
1 x 50G-PON (BOB) |
| User-Side Port |
2 * 25GE/XGE/GE (optical) + 2 *XGE/GE (optical/electrical) + 2 * GE(electrical) + 2 * clock ports |
| Dimensions (W x D x H) |
320 mm x 220 mm x 43.6 mm |
| Weight |
2.54Kg |
| AC power supply |
100 V to 240 V AC, 50/60 Hz; 0.8A |
| DC power supply |
2 x DC, –48 V to –60 V, 1.0 A |
| Static power consumption |
AC: 14 W; DC: 17 W |
| Max. power consumption |
AC: 26.5 W; DC: 28.5 W |
| Typical power consumption |
AC: 20 W; DC: 22.8 W |
| IP rating |
IP20 |
| Operating temperature range |
5%–95% RH, non-condensing |
| Surge protection |
GE electrical ports: 4 kV in common mode and 1.5 kV in differential mode
AC power supply: 6 kV in common mode and 6 kV in differential mode |
| Upstream port |
• Transmission rate (symmetric): 49.7664 Gbit/s upstream and 49.7664 Gbit/s downstream
• Transmission rate (asymmetric): 24.8832 Gbit/s upstream and 49.7664 Gbit/s downstream
• Port type: SC/UPC
• Class N1
• Receiver sensitivity: –24 dBm
• Overload optical power: –3 dBm |
| Downstream port |
25GE/XGE port (optical)
• Transmission rate: 1000/10000/25000 Mbit/s
• Optical module type: SFP
XGE interface (optical/electrical)
• Transmission rate: 1000/10000 Mbit/s
• Optical/Electrical module type: SFP
GE port (electrical)
• RJ-45 port
• 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s autonegotiation
• Standard compliance: IEEE802.3
Clock port (electrical)
• RJ-45 port
• 2 MHz output
• 1 PPS+TOD |
| Networking Protection |
• Type B single-homing protection
• Type B dual-homing protection |
