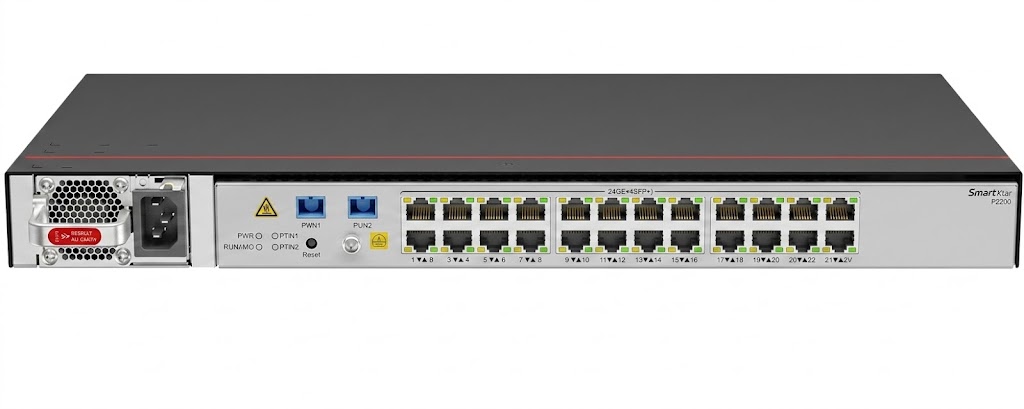

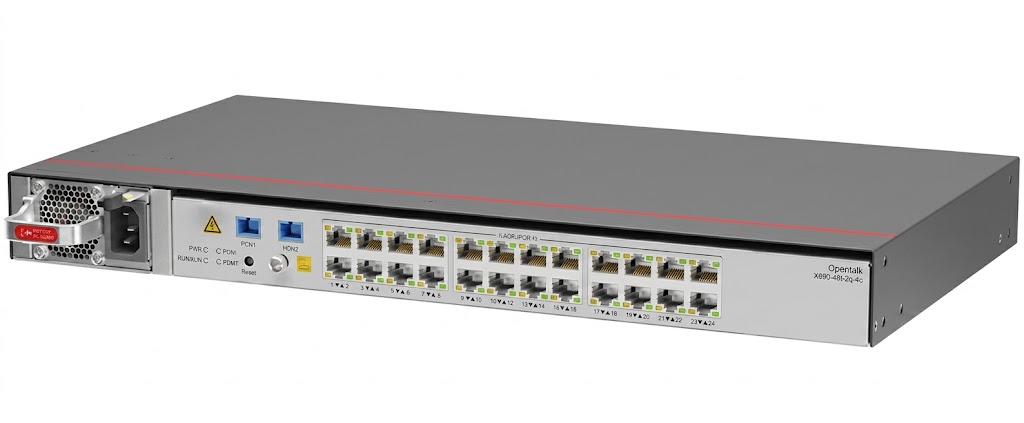

Huawei OptiXstar P885E-10 XGS-PON Pro PoE Optical Network Unit
Huawei OptiXstar P885E-10 is an XGS-PON Pro PoE Optical Network Unit designed for high-speed fiber access and advanced Ethernet connectivity. It provides 2 XGS-PON Pro NNI ports and 24 2.5GE UNI ports, supporting PoE, PoE+, and PoE++ for connected network devices.
The 2.5GE RJ-45 ports support automatic 10/100/1000/2500 Mbit/s speeds and Ethernet features including VLAN tagging, tag removal, transparent transmission, and VLAN filtering. PoE++ ports can deliver up to 60 W per port, making the unit suitable for powering compatible network equipment directly through Ethernet connections.
With support for up to 520 W total PoE output using a 600 W power supply at 200–240 V AC, the Huawei OptiXstar P885E-10 can support deployments requiring high-density powered Ethernet connectivity. Its applications include enterprise access networks, fiber-based campus networks, business connectivity, and network environments with multiple PoE-powered devices.
The unit provides multiple security functions, including MAC authentication, 802.1x authentication, MAB authentication, DoS and ARP attack protection, MAC and IP address binding, device access control, and ONU port-level hard isolation. These capabilities help support secure network access and controlled connectivity across different ports and networks.
Designed for rack-based deployment, the Huawei OptiXstar P885E-10 supports 19-inch cabinet or rack installation and uses fan-based heat dissipation. Its XGS-PON Pro interface provides RX and TX transmission rates of 12.44 Gbit/s, while Type B and Type C protection options and PON upstream load sharing support network resilience and availability.
Key features
-
2 x XGS-PON Pro NNI ports
-
24 x 2.5GE RJ-45 UNI ports
-
Supports PoE, PoE+, and PoE++
-
Up to 60 W PoE++ output per port
-
Up to 520 W total PoE output at 200–240 V AC
-
12.44 Gbit/s RX and TX XGS-PON transmission rate
-
Supports Type B and Type C networking protection
-
19-inch cabinet and rack installation support
Specifcations:
| Parameters |
Huawei OptiXstar P885E-10 |
| Dimensions (H x W x D) |
43.6mm×440mm×420mm (Without Mounting Brackets) |
| NNI |
2 x XGS-PON Pro |
| UNI |
24 x 2.5GE, supports PoE++/PoE+/PoE |
| Power Rating |
100–130 V AC, 50 Hz/60 Hz
200–240 V AC, 50 Hz/60 Hz |
| PoE output power |
• Maximum output power of a PoE++ port: 60 W
• Maximum total output power:
520 W (1 x 600 W power supply, 200–240 V)
220 W (1 x 600 W power supply, 110–130 V) |
| Static power consumption |
44 W |
| Maximum power consumption |
• 318 W (220 W over PoE, 1 x 600 W power supply, 110–130 V)
• 636W (520 W over PoE, 1 x 600 W power supply, 200–240 V)
• 71 W (without PoE, 1 x 600 W power supply, 110-130 V)
• 67 W (without PoE, 1 x 600 W power supply, 200–240 V) |
| Operating Temperature |
-10°C to +55°C |
| Weight |
5.72 kg (1 x 600W power supply) |
| Surge Protection |
GE: common mode 4 kV; differential mode 0.5 kV.
AC power: common mode 6 kV; differential mode 6 kV. |
| Heat dissipation mode |
Fans heat dissipation |
| Power Supply |
• 1 x 600W
Supports hot swap. |
| Installation Mode |
Support 19-inch cabinet, or rack installation |
| PON |
Port mode: XGS-PON Pro
Port type: SC/UPC
Transmission rate: RX 12.44 Gbit/s, TX 12.44 Gbit/s
Optical receiver sensitivity: -22 dBm
Overload optical power: -7 dBm |
| 2.5GE |
• Port type: RJ-45
• Complying with IEEE 802.3
• Auto ports speed (10/100/1000/2500 Mbit/s)
• Half duplex/full duplex auto-negotiation and configuration
• VLAN tag/tag removal, VLAN transparent transmission, and VLAN filtering based on Ethernet ports
• Support PoE/PoE+/PoE++ |
| Security |
• MAC authentication, 802.1x authentication, MAB authentication, and dynamic delivery of user policies (VLAN and ACL)
• DoS/ARP anti-attacks
• MAC address and IP address binding
• Device access control
• ONU Port-Level Hard-Isolated. Different ports of an ONU can be securely connected to multiple networks through the hard-isolated technology |
| Networking Protection |
• Type B single-homing protection
• Type B dual-homing protection
• Type C single-homing protection
• Type C dual-homing protection
• PON upstream load sharing |
