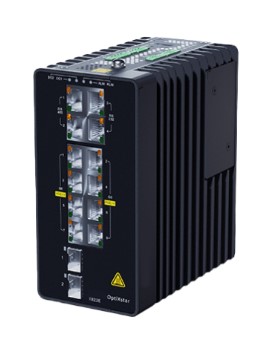

Huawei OptiXstar T823E-D Industrial Optical Network Unit (ONU)
Huawei OptiXstar T823E-D is an industrial Optical Network Unit designed to provide fiber-based connectivity for industrial networking and automation environments. It supports 2 x GPON/XGS-PON NNI interfaces and 8 x GE PoE++ ports, combining optical access, powered Ethernet, and industrial interfaces in a DIN guide rail installation design.
The T823E-D supports XGS-PON and GPON through its SC/UPC PON port, with a maximum transmission distance of 20 km. XGS-PON provides RX and TX transmission rates of 9.953 Gbit/s, while GPON supports 2.488 Gbit/s RX and 1.244 Gbit/s TX, providing flexible optical access for different network requirements.
Its 8 GE Ethernet ports support PoE++ and comply with IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards. Each GE port can consume up to 60 W, with a total maximum PoE power consumption of 220 W, making the Huawei OptiXstar T823E-D suitable for powering compatible industrial network devices directly over Ethernet.
The industrial ONU also integrates 2 RS485 ports, 2 RS232 ports, 2 digital inputs, 1 digital output, and 1 USB 2.0 Type-A host port. These interfaces support connections to industrial equipment, sensors, alarm devices, and other field devices, helping consolidate communication and control connectivity within industrial networks.
Designed for industrial deployment, the T823E-D uses DIN guide rail installation and supports 802.1X authentication. Its Ethernet and DC power ports include surge protection, while the combination of GPON/XGS-PON access, PoE++, serial interfaces, and DI/DO connectivity provides a versatile platform for industrial communication and network applications.
Key features
-
2 x GPON/XGS-PON NNI interfaces
-
8 x GE Ethernet ports with PoE++ support
-
Up to 60 W power consumption per GE port
-
Up to 220 W total PoE power consumption
-
XGS-PON transmission rate up to 9.953 Gbit/s
-
GPON transmission rate up to 2.488 Gbit/s RX
-
2 x RS485, 2 x RS232, 2 x DI, and 1 x DO
-
DIN guide rail installation with 802.1X authentication
Specifications:
| Parameters |
Huawei OptiXstar T823E-D |
| Rated Voltage and Current |
Power scenario: 48 V, 5.5 A
Industrial scenario: 56 V, 4.5 A |
Maximum PoE Power
Consumption |
220 W (total power consumption)
60 W (each GE port power consumption) |
| Surge Protection |
Ethernet port: common mode 6 kV; differential mode 1.5 kV
DC power port: common mode 4 kV; differential mode 2 kV |
Maximum Power
Consumption |
Approximately 240 W |
| NNI |
2 x GPON/XGS-PON |
| UNI |
8 x GE (PoE++) + 2 x RS485 + 2 x RS232 + 2 x DI + 1 x DO + 1 x USB 2.0 |
| Installation Mode |
DIN guide rail |
| Authentication |
802.1X |
| PON Port |
Port type: SC/UPC
Maximum transmission distance: 20 km
XGS-PON
− SFP+, complies with ITU-T G.9807.1, class N1/N2
− Transmission rate: RX: 9.953 Gbit/s, TX: 9.953 Gbit/s
− Optical receiver sensitivity: –28 dBm
− Overload optical power: –8 dBm
GPON
− SFP, complies with ITU-T G.984, class B+
− Transmission rate: RX: 2.488 Gbit/s, TX: 1.244 Gbit/s
− Optical receiver sensitivity: –27 dBm
− Overload optical power: –8 dBm |
| Ethernet Electrical Port |
Port type: RJ-45
PoE++, complies with IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Auto port speeds (10/100/1000 Mbit/s) |
| RS485 Port |
Port type: RJ-45
Complies with TIA/EIA-485, ITU-T V.24, ITU-T V.28 |
| RS232 Port |
Port type: RJ-45
Complies with TIA/EIA-232, ITU-T V.24, ITU-T V.28 |
| DI/DO Port |
The DI is connected to devices such as the door status sensor, infrared sensor or other devices.
The DO is connected to the external alarm device or other devices.
DI port type: 4-pin Phoenix terminal
DO port type: 3-pin Phoenix terminal |
| USB Port |
USB 2.0
Port type: Type-A
Work mode: Host |
