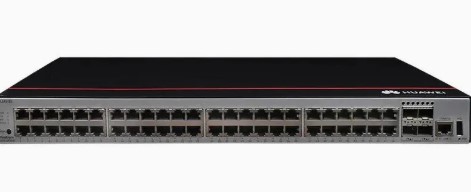

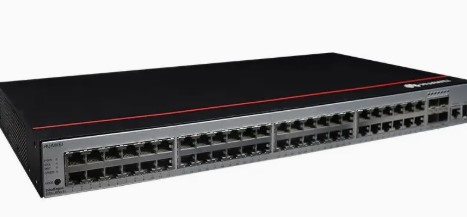

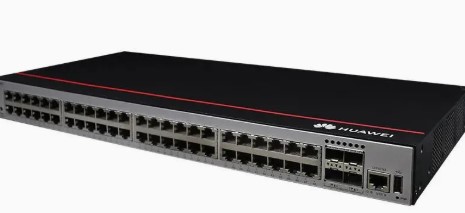

HUAWEI S5735-L48P4X-A1 48-Port Gigabit PoE+ Network Switch
The HUAWEI S5735-L48P4X-A1 is a 48-port Gigabit Ethernet PoE+ network switch designed for enterprise and network access deployments. It provides 48 x 10/100/1000BASE-T PoE+ RJ45 ports along with 4 x 10GE SFP+ optical ports for high-speed uplink connectivity.
This HUAWEI network switch features a 1U metal chassis with built-in AC power. It supports AC input from 100 V to 240 V at 50/60 Hz, as well as high-voltage DC input of 240 V DC, providing flexible power options for supported installations.
The S5735-L48P4X-A1 supports PoE with a maximum PoE power of 380 W. Maximum power consumption is 456.1 W at 100% PoE load, while typical power consumption is 58.7 W, making it suitable for deployments requiring Ethernet connectivity and PoE power delivery.
For management and connectivity, the switch includes an RJ45 console port, USB 2.0 Type-A port, and 4 x 10GE SFP+ optical ports. It provides 512 MB of memory and 512 MB of flash memory, while its built-in fans use intelligent fan speed adjustment for heat dissipation.
The HUAWEI S5735-L48P4X-A1 has a 1U rack-oriented chassis measuring 43.6 mm x 442.0 mm x 220.0 mm without protruding parts and weighs 3.23 kg without packaging. It supports long-term operating temperatures from -5°C to +50°C and long-term operating relative humidity of 5% to 95% non-condensing.
Key features
-
48 x 10/100/1000BASE-T PoE+ RJ45 ports
-
4 x 10GE SFP+ optical ports
-
380 W maximum PoE power
-
1U metal chassis
-
Built-in AC power supply
-
512 MB memory and 512 MB flash memory
-
RJ45 console and USB 2.0 Type-A ports
-
Intelligent fan speed adjustment
Specifications:
| Product Information |
|
| Description |
S5735-L48P4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power) |
| Part Number |
98011343 |
| Model |
S5735-L48P4X-A1 |
| Interfaces |
|
| 10/100/1000BASE-T PoE+ Port |
RJ45 |
| 10GE SFP+ Optical Port |
SFP+ |
| Console Port |
RJ45 |
| USB Port |
USB 2.0 Type A |
| Dimensions & Weight |
|
| Dimensions without Packaging |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
| Maximum Dimensions |
43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with Packaging |
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis Height |
1 U |
| Chassis Material |
Metal |
| Weight without Packaging |
3.23 kg (7.12 lb) |
| Weight with Packaging |
4.28 kg (9.44 lb) |
| Power & Heat |
|
| Typical Power Consumption |
58.7 W |
| Typical Heat Dissipation |
200.29 BTU/hour |
| Maximum Power Consumption |
Not providing the PoE function: 76.1 W, 100% PoE loads: 456.1 W (PoE: 380 W) |
| Maximum Heat Dissipation |
Not providing the PoE function: 259.66, 100% PoE loads: 1556.26 |
| Static Power Consumption |
35.3 W |
| Power Supply Mode |
AC built-in |
| Rated Input Voltage |
AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
| Input Voltage Range |
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum Input Current |
6:00 AM |
| Redundant Power Supply |
Not supported |
| RPS Input |
Not supported |
| Power Supply Surge Protection |
±6 kV in differential mode, ±6 kV in common mode |
| Performance & Reliability |
|
| MTBF |
44.03 years |
| Availability |
> 0.99999 |
| Number of Card Slots |
0 |
| Number of Power Slots |
0 |
| Number of Fan Modules |
2 |
| Environmental Parameters |
|
| Long-term Operating Temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term Operating Temperature |
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Long-term Operating Relative Humidity |
5% RH to 95% RH, non-condensing |
| Long-term Operating Altitude |
0-5000 m (0-16404 ft.) |
| Storage Altitude |
0-5000 m (0-16404 ft.) |
| Noise at Normal Temperature, Acoustic Power |
50 dB(A) |
| Noise at Normal Temperature, Acoustic Pressure |
38.2 dB(A) |
| Memory & Management |
|
| Memory |
512 MB |
| Flash Memory |
512 MB |
| Console Port |
RJ45 |
| Ethernet Management Port |
Not supported |
| USB |
Supported |
| RTC |
Not supported |
| Protection & Construction |
|
| Service Port Surge Protection |
Common mode: ±7 kV |
| Ingress Protection Level |
IP20 |
| Types of Fans |
Built-in |
| Heat Dissipation Mode |
Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow Direction |
Air intake from left and front, air exhaustion from right |
| PoE |
|
| PoE |
Supported |
| Certification |
EMC certification
Safety certification
Manufacturing certification |
