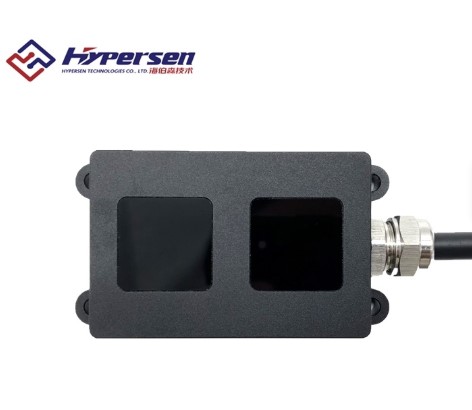

Hypersen HPS-3D160 Pro, ToF Solid-State LiDAR Sensor

Imagine a robot that can see every obstacle even in bright sunlight or dusty warehouses. The Hypersen HPS-3D160 Pro, ToF Solid-State LiDAR Sensor gives you that clear, fast depth vision. If your autonomous system struggles with blind spots, low-light errors, or noisy data, you need a sensor that works reliably in harsh conditions. This LiDAR delivers precise 3-D maps so your device can move safely and efficiently.

Hypersen HPS-3D160 Pro, ToF Solid-State LiDAR Sensor

Many developers find that traditional laser scanners lose accuracy when the scene is bright or when objects have low reflectivity. That loss creates navigation errors, wasted time, and costly redesigns. The Hypersen sensor solves this by using time-of-flight technology with high SNR digital output and three HDR modes that adapt to lighting changes instantly. You get reliable depth data from 0.25 m to 8 m, even in 80,000 lux sunlight, so your robot or drone can trust every measurement without extra calibration.

Key Features

• • 160 x 60 resolution provides detailed point clouds.
  • Supports Simple-HDR, Auto-HDR and Super-HDR measurement modes.
  • Multiple communication options: USB, RS-232, USB-IO, LAN.
  • ROI support for up to 16 groups with customizable regions.
  • IP67 sealed housing protects against dust and water.
  • Measurement range up to 8 m on high-reflectivity targets.
  • Frame rate up to 35 Hz, adjustable for real-time processing.
  • Optional point-cloud and object coordinate output formats.
  • Built-in filtering algorithms clean raw data automatically.
  • Power supply 12-24 V simplifies integration with common systems.

Specifications
