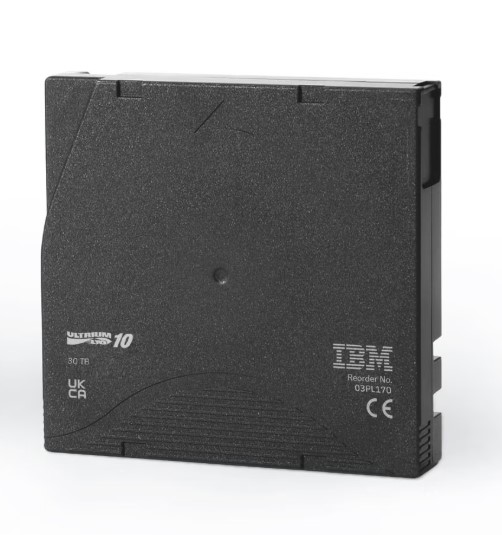

IBM LTO Ultrium-10 (LTO-10) 30 TB Native Capacity Tape Data Cartridge
The IBM LTO Ultrium-10 (LTO-10) 30 TB Native Capacity Tape Data Cartridge is a high-capacity tape storage medium designed for data backup, archiving, and storage applications. It provides 30 TB of native data capacity and up to 75 TB when using 2.5:1 data compression.
This LTO-10 cartridge uses linear serpentine recording technology with Strontium Ferrite magnetic material. The tape has a length of 1035 m (3,395.66 ft) and a total thickness of 5.2 µ (0.00020 in.), providing high-capacity storage in a compact half-inch cartridge format.
The cartridge models include a rewritable LTO Ultrium 10 30 TB data cartridge and a non-erasable, non-rewritable WORM cartridge. The data cartridge is black and measures 102.0 mm x 105.4 mm x 21.55 mm, with a weight of 200 g.
The cartridge is designed for defined operating and storage conditions, with an operating temperature range of 10°C to 45°C and 10% to 80% relative humidity. Recommended storage conditions are 16°C to 25°C with 20% to 50% relative humidity.
The IBM LTO-10 cartridge has nonhazardous toxicity characteristics for anticipated use and is self-extinguishing according to UL94. It is also classified as non-hazardous waste under EPA regulation 40CFR261.
Key Features
-
30 TB native data capacity
-
Up to 75 TB with 2.5:1 data compression
-
LTO Ultrium 10 (LTO-10) format
-
Linear serpentine recording technology
-
Strontium Ferrite magnetic material
-
1035 m tape length
-
Rewritable and WORM cartridge options
-
Compact 102.0 x 105.4 x 21.55 mm size
-
200 g data cartridge weight
-
Self-extinguishing per UL94
Specifications
| General Characteristics |
|
| Media Type |
Linear serpentine recording half-inch cartridge |
| Magnetic Material |
Strontium Ferrite |
| Data Capacity |
30 TB native; 75 TB with 2.5:1 data compression |
| Cartridge Models |
LTO Ultrium 10 30 TB; rewritable data cartridge; non-erasable, non-rewritable WORM cartridge |
| Tape Characteristics |
|
| Total Tape Thickness |
5.2 µ (0.00020 in.) |
| Tape Length |
1035 m (3,395.66 ft) |
| Data Cartridge Characteristics |
|
| Data Cartridge Characteristics |
LTO-10 LA |
| Cartridge Color |
Black |
| Cartridge Size (L x W x D) |
102.0 mm x 105.4 mm x 21.55 mm (4.0 in. x 4.1 in. x 0.8 in.) |
| Data Cartridge Weight |
200 g (0.441 lb) |
| Cleaning Cartridge Weight |
115 g (0.254 lb) |
| Safety Characteristics |
|
| Safety Characteristics |
Toxicity: nonhazardous to human health in anticipated use; Flammability:
self-extinguishing per UL94
|
| Environmental Recommendations |
|
| Operating Conditions |
10°C - 45°C (50°F - 113°F); 10% - 80% RH; 26°C (79°F) wet bulb max |
| Recommended Storage Conditions |
16°C - 25°C (61°F - 77°F); 20% - 50% RH; 26°C (79°F) wet bulb max |
| Allowable Storage Conditions |
16°C - 32°C (61°F - 90°F); 20% - 80% RH; 26°C (79°F) wet bulb max |
| Shipping Conditions |
-23°C - 49°C (-9°F - 120°F); 5% - 80% RH; 26°C (79°F) wet bulb max |
| Cartridge Disposal |
Classified as non-hazardous waste per EPA regulation 40CFR261;
can be disposed of as normal office trash
|
| Machine Type / Model |
|
| Machine Type, Model |
LTO-10 |
