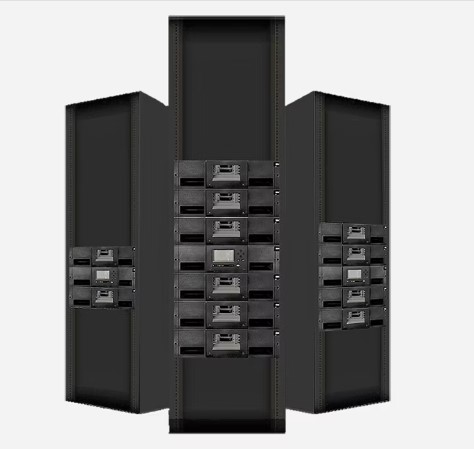

Requirements for secure, long-term data retention especially in the financial services, healthcare and life sciences industries are common and increasingly stringent, with data volumes escalating exponentially. Data stored on offline tape or write-once media, is nearly impervious to hacking. The IBM® TS4300 Tape Library is a high-density, highly scalable, easy-tomanage tape library designed to keep data securely stored long term, while helping reduce the cost associated with data center space and utilities.
The TS4300's modular architecture facilitates scalability of both cartridge and drive capacities according to demand. This library, based on a compact 3Uhigh modular base, supports vertical expansion with up to sixteen modules, incorporating the base, Linear Tape-Open (LTO) Ultrium cartridges, drives, and redundant power supplies. A solitary robot efficiently manages operations across all modules within the stack. In a fully expanded setup, a TS4300 can accommodate up to 640 LTO cartridges.
A user-friendly installation and configuration wizard ensures that users, regardless of their technical expertise, can effortlessly install, expand, and service the library.
To adhere to stringent security and compliance standards, the TS4300 Tape Library incorporates WORM cartridges, bolstering data protection. Furthermore, it integrates library-managed encryption via IBM Security Key Lifecycle Manager for enhanced data security.
In terms of business continuity, the TS4300 offers automatic control-path and data-path failover features, ensuring seamless operation even in the event of a host adapter or control path failure.
Leveraging IBM Storage, the TS4300 provides direct, intuitive, and graphical access to data stored in IBM tape drives and libraries. This is achieved through the utilization of the IBM Linear Tape File System (LTFS) format standard, enabling tape-stored data to be accessed as if it were on disk or flash storage, thereby simplifying data retrieval processes.
The TS4300 base library contains all the necessary robotics and intelligence to manage the base library system, with a maximum of 40 slots of LTO cartridge capacity per module, up to five input/output (I/O) slots, and support for three combinations of full- and/or half-height (FH or HH) LTO drives per module. The TS4300 base library is rack or tabletop mountable. Module expansions are rack mountable only
Specifications:
| IBM TS4300 Tape Drive |
|
| Form factor |
3U |
| Physical capacity |
40 TB native capacity/up to 100 TB compressed capacity (LTO Ultrium 10 PA)
30 TB native capacity/up to 75 TB compressed capacity (LTO Ultrium 10)
18 TB native capacity/up to 45 TB compressed capacity (LTO Ultrium 9)
12 TB native capacity/up to 30 TB compressed capacity (LTO Ultrium 8)
6 TB native capacity/up to 15 TB compressed capacity (LTO Ultrium 7)
2.5 TB nativecapacity/up to 6.25 TB compressed capacity (LTO Ultrium 6)
|
| Network interface |
Ethernet |
| Power supply |
1 standard power supply, optional 2nd redundant supply |
| Hot-swap components |
Power supplies, tape drives |
| Systems management |
Storage Management Initiative Specification (SMI-S) enabled |
| Operating systems supported |
Selected IBM servers and other Linux® and Microsoft Windows open-system servers |
| Limited warranty |
Three-year in-warranty coverage of select parts |
| Weight |
Base module maximum 28 kg (61.5 lb)Expansion module maximum 22.6 kg (49.6 lb) |
| Dimensions (H x W x D) |
133 mm (5.23 in.) x 480 mm (18.89 in.) x 880 mm (34.6 in.) |
| IBM TS4300 Tape Library configurations |
|
| Minimum configuration |
Base module |
| Total physical capacity |
For MT 5544with LTO10PA media720 TB1.6 PB |
| LTO Ultrium cartridge capacity |
40 |
| Reduction in cartridges for I/O slots |
0-5 |
| Tape drives |
1 FH LTO, 3 HH LTO, or 1 FH and 1 HH LTO |
| Logical libraries |
Up to 21 logical libraries in the library (up to the number of drives installed
with a maximum of 21)
|
