Tired of guessing how much liquid is moving through your pipe? The Icon Process Controls UF500 Clamp-On Ultrasonic Flow Meter Sensor gives you instant, accurate flow data without cutting or draining the line. It is built for plants that need reliable numbers to keep production steady and costs low. If you have ever lost time fixing leaks or recalibrating intrusive meters, this sensor solves that problem quickly.

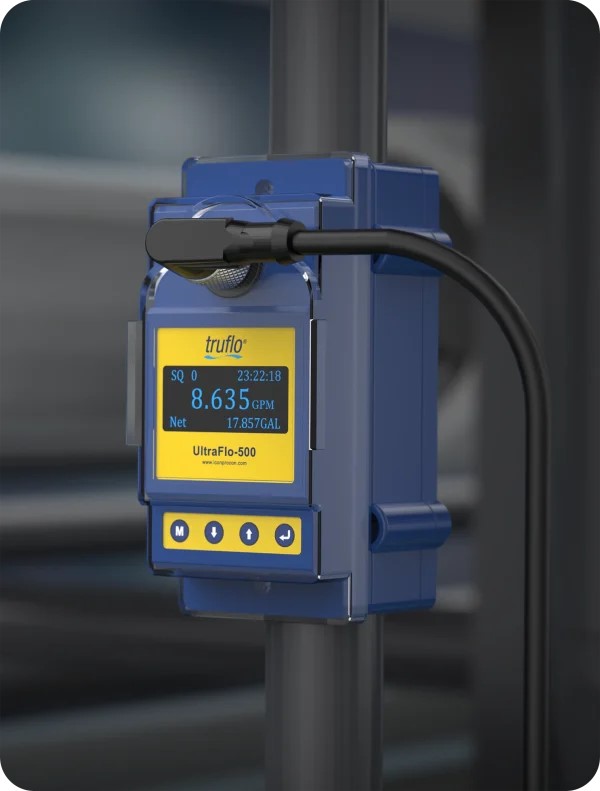

ICON TruFlo UltraFlo UF500 Clamp-On Ultrasonic Flow Meter Sensor
Many facilities struggle with flow meters that require pipe shutdown, cause leaks, or drift in accuracy. When flow data is wrong, you may waste energy, over-process material, or miss compliance limits. The UF500 attaches to the outside of the pipe, reads flow with ultrasonic pulses, and delivers 2 % accuracy across a wide speed range. It eliminates pipe cutting, reduces maintenance, and lets you see real-time flow, totalizer, and daily logs on a clear OLED display.
Applications:
- Liquid Chemical Flow Measurement
- Filtration Systems
- Water & Wastewater Monitoring
- Industrial Chemical Distribution
- Process Chemical Skids
- Liquid Consumption
- Discharge Verification
Key Features
- Simple to Install - No Cutting of Pipe
- Large Blue OLED Low Light Display
- High Accuracy | ± 2.0%
- Pipe Sizes ½ - 10"
- No moving parts - No Maintenance
- Flow Rate + Total | Resettable
- Flow Velocity Range | 0.3 - 15 ft/s | 0.1 - 5 m/s
- Works on PVC | PP | PVDF | PE | SS | Copper Pipe
Specifications
| General Specifications |
|
| Operating Velocity Range |
0.3 – 15 ft/s (0.1 – 5 m/s) |
| Accuracy |
±2.0% (0.5 – 5.0 m/s) |
| Repeatability |
±0.8% |
| Pipe Size Range |
1/4" – 10" (DN8 – DN250) |
| Temperature Range (Standard) |
14 to 122°F (-10 to 50°C) |
| Temperature Range (HT Model) |
14 to 302°F (-10 to 150°C) |
| Viscosity Range |
< 300 cSt (mm²/s) |
| Output Signals |
4-20mA |
| Measurement Functions |
Flow Rate + Totalizer (Resettable) |
| Data Logging |
Day |
| Display |
128 × 64 OLED Dot Matrix (Blue) |
| Totalizer |
6-Digit Accumulator |
| Power Supply |
24 VDC @ 3W |
| Electrical Connection |
M12 Quick Connection |
| Mechanical Specifications |
|
| Sensor Body Material |
Aluminum |
| Optional Coating |
Teflon® Epoxy Coated Aluminum |
| Cover Material |
Chemical-Resistant Polycarbonate |
| Installation |
Clamp-On, No Pipe Cutting Required |
| Installation Time |
Under 2 Minutes |
| Contact with Liquid |
None (Non-Intrusive) |
| Moving Parts |
None |
| Suitable Applications |
RO |
| Standards & Approvals |
|
| Compliance |
CE |
