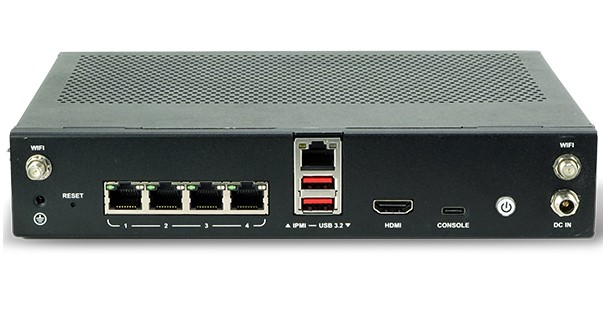

IEI PUZZLE-1100-x7835RE 4-Port 2.5GbE Desktop Network Appliance
The IEI PUZZLE-1100-x7835RE is a compact desktop network appliance powered by an Intel x7835RE processor with a 12W TDP. It provides 4 x LAN ports and is designed for network applications requiring a compact form factor and multi-Gigabit Ethernet connectivity.
This IEI network appliance supports SO-DIMM DDR5-4800 memory with a maximum capacity of up to 16G. The cooling configuration supports a fan with heatsink for a 12W CPU TDP or fanless operation for a 9W CPU TDP.
The PUZZLE-1100-x7835RE provides 1 x eMMC for storage and includes HDMI display output. Its I/O configuration includes 2 x external USB 3.2 Gen1x1 ports, 2 x external USB 3.2 Gen2x1 ports, and a console port.
For expansion, the desktop network appliance features 1 x PCIe Mini Card slot and 2 x M.2 (NGFF) slots. The system is supplied with a 60W power adapter and supports Linux Ubuntu 24.04 for compatible network and computing applications.
The IEI PUZZLE-1100-x7835RE features a 1U rack-height design with dimensions of 224.5 x 42.5 x 170 mm. It operates from 0°C to 40°C with 5% to 90% non-condensing humidity and complies with RoHS and CE/FCC certifications.
Key features
-
Intel x7835RE processor with 12W TDP
-
4 x LAN ports
-
SO-DIMM DDR5-4800 memory
-
Up to 16G memory capacity
-
1 x eMMC storage
-
2 x M.2 (NGFF) slots
-
1 x PCIe Mini Card slot
-
Linux Ubuntu 24.04 compatible
Specifications:
| Hardware Spec. |
|
| CPU |
Intel x7835RE processor Supporting TDP 12W |
| Chipset |
Integrated in CPU |
| Memory |
SO-DIMM DDR5-4800 |
| Memory Max. |
Up to 16G |
| Cooling method / System Fan |
CPU TDP 12W Fan with Heatsink, CPU TDP 9W FAN less |
| Physical Characteristics |
|
| Rack Height |
1U |
| Dimensions (LxWxH) (mm) |
224.5 x 42.5 x 170 mm |
| Storage |
|
| Storage |
1 x eMMC |
| I/O Interface |
|
| Display Output |
HDMI™ |
| Ethernet |
4 x LAN |
| I/O Interface |
2 x External USB 3.2 Gen1x1, 2 x External USB 3.2 Gen2x1, 1 x Console port(s) |
| Expansion |
1 x PCIe mini Card Slot, 2 x M.2(NGFF) |
| Power |
|
| Power Supply |
60W power adapter |
| Environment |
|
| Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-10°C ~ 50°C |
| Humidity |
5% ~ 90% non-condensing |
| Certifications |
|
| Safety & EMC |
RoHS, CE/FCC |
| OS Compatible |
|
| OS Compatible |
Linux Ubuntu 24.04 |
| Ordeing info |
|
| Description |
Desktop Network Appliance with Intel x7835RE Processor, 4x 2.5 GbE, 1x USB Type-C console port, 2x USB 3.2, 1 x HDMI |
| Model |
PUZZLE-1100-x7835RE-R10 |
| Package content |
● 1 x Power adaptor, DC 60W
● 1 x Power cord
● 1 x USB type C to type A console cable
● 1 x Network cable, CAT5e |
