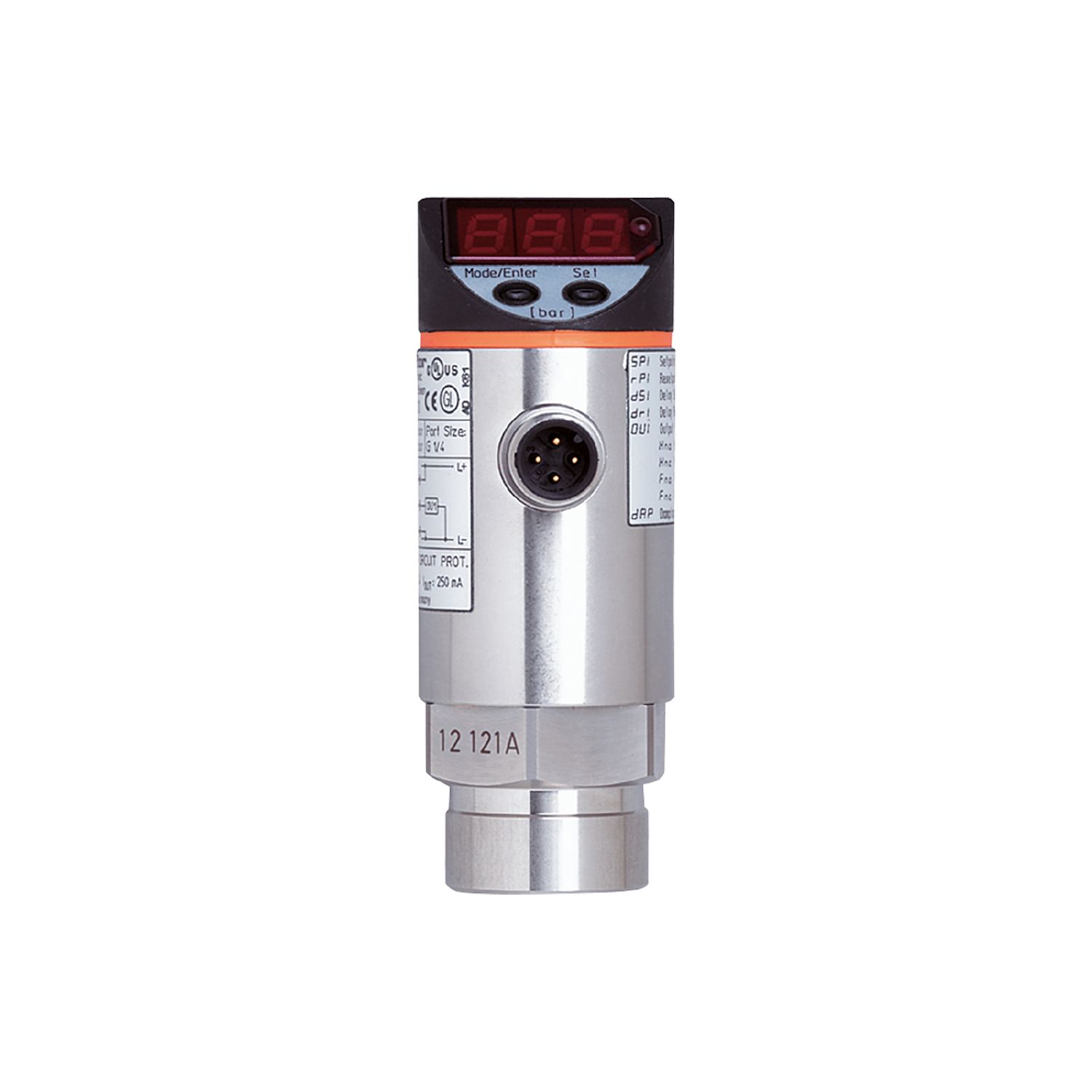

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Measuring range |
0...400 bar / 0...5800 psi / 0...40 MPa |
| Process connection |
threaded connection G 1/4 internal thread |
| Application |
|
| Special feature |
Gold-plated contacts |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Conditionally suitable for |
use in gases at pressures > 25 bar only on request |
| Medium temperature[°C] |
-25...80 |
| Min. burst pressure |
1000 bar / 14500 psi / 100 MPa |
| Pressure rating |
600 bar / 8700 psi / 60 MPa |
| Type of pressure |
relative pressure |
| Electrical data |
|
| Operating voltage[V] |
18...36 DC; (to SELV/PELV) |
| Current consumption[mA] |
< 35 |
| Min. insulation resistance[MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Overvoltage protection |
yes; (< 40 V) |
| Power-on delay time[s] |
0.3 |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] |
2 |
| Permanent current rating of switching output DC[mA] |
250 |
| Switching frequency DC[Hz] |
< 170 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Measuring/setting range |
|
| Measuring range |
0...400 bar / 0...5800 psi / 0...40 MPa |
| Set point SP |
4...400 bar / 60...5790 psi / 0.4...40 MPa |
| Reset point rP |
2...398 bar / 30...5760 psi / 0.2...39.8 MPa |
| In steps of |
2 bar / 30 psi / 0.2 MPa |
| Factory setting |
SP1 = 100 bar / rP1 = 92 bar ; SP2 = 300 bar / rP2 = 292 bar |
| Accuracy/deviations |
|
| Switch point accuracy[% of the span] |
< ± 0,5 |
| Repeatability[% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation[% of the span] |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation[% of the span] |
< ± 0,25 |
| Long-term stability[% of the span] |
< ± 0,05; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] |
0,2; (0...80 °C) |
| Temperature coefficient span[% of the span / 10 K] |
0,2; (0...80 °C) |
| Response times |
|
| Delay time programmable dS, dr[s] |
0; 0,2...50 |
| Software/programming |
|
| Parameter setting options |
hysteresis / window; normally open / normally closed; diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
1 |
| Process data binary |
2 |
| Min. process cycle time[ms] |
2.3 |
| Supported DeviceIDs |
Type of operation: default 307 |
| Operating conditions |
|
| Ambient temperature[°C] |
-20...80 |
| Storage temperature[°C] |
-40...100 |
| Protection |
IP 67 |
| Tests/approvals |
|
| EMC |
EN 61000-4-2 ESD: 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated: 10 V/m; EN 61000-4-4 Burst: 2 kV; EN 61000-4-5 Surge: 0,5/1 kV; EN 61000-4-6 HF conducted: 10 V |
| Shock resistance |
DIN IEC 68-2-27: 50 g (11 ms) |
| Vibration resistance |
DIN IEC 68-2-6: 20 g (10...2000 Hz) |
| MTTF[years] |
219 |
| Pressure Equipment Directive |
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight[g] |
272.5g |
| Housing |
cylindrical |
| Dimensions[mm] |
Ø 34 / L = 94.1 |
| Materials |
stainless steel (304/1.4301); stainless steel (316L/1.4404); PC; PBT; PEI; FKM |
| Materials (wetted parts) |
stainless steel (303/1.4305); ceramics; FKM |
| Min. pressure cycles |
100 million |
| Process connection |
threaded connection G 1/4 internal thread |
| Restrictor element integrated |
no (can be retrofitted) |
| Displays / operating elements |
|
| Display |
Display unit: 3 x LED, green; switching status: 2 x LED, yellow; function display: alphanumeric display, 4-digit; measured values: alphanumeric display, 4-digit |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
