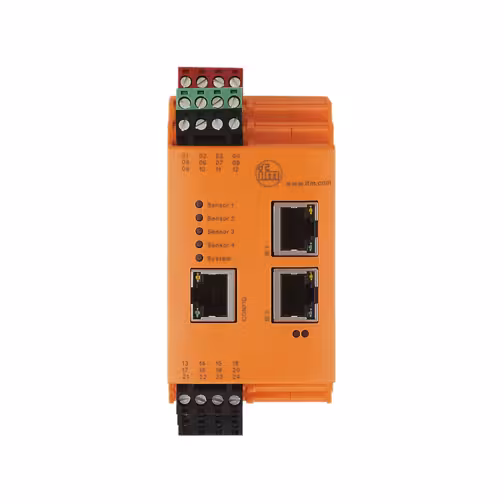

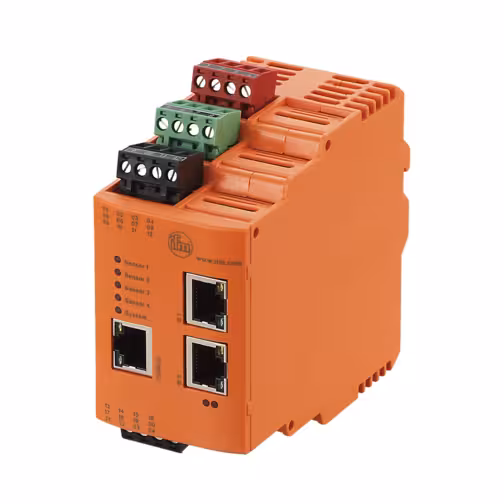

IFM VSE160, Diagnostic Electronics for Vibration Sensors
The IFM VSE160 is diagnostic electronics for vibration sensors designed for continuous vibration monitoring. Its housing is designed for DIN rail mounting, and parameter setting can be performed through PC software VES004. The unit provides a total of 8 parameterisable inputs and outputs for flexible monitoring and control applications.
The device includes 4 dynamic inputs with current, dynamic input functionality and support for 0...10 mA / IEPE / 4...20 mA input ranges. These inputs provide an input frequency of 0,1...12000 Hz, 16 bit resolution, and a sampling rate of 100 kSamples. Two additional process value inputs support pulse and current signals for further monitoring requirements.
For industrial control and communication, the VSE160 provides configurable PNP outputs, including a multifunction output with 4...20 mA analogue output capability. It also provides Ethernet communication through an RJ45 connector with 10/100 MBit/s transmission and TCP/IP protocol. PROFINET communication is supported with 100 MBit/s transmission, along with features including CC-C (Conformance Class C), Netload Class III, SNMP, and MRP.

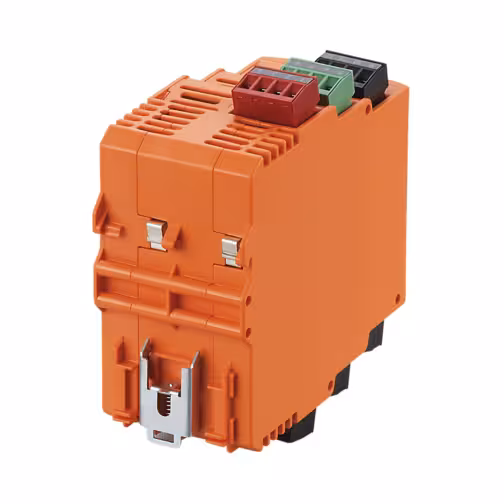

The device is designed for installation in industrial environments with an ambient temperature range of 0...60 °C and IP 20 protection. Its DIN rail mounting design uses TH35 (EN 60715), while the 114.2 x 50 x 105.3 mm housing and 401.9 g weight support practical panel installation. Internal data storage, history memory, buffered data memory, ring memory/FIFO, and a real-time clock provide functions for retaining monitoring data.
Key features
-
Continuous vibration monitoring
-
4 dynamic inputs
-
16 bit resolution and 100 kSamples sampling rate
-
IEPE / 4...20 mA input support
-
Ethernet 10/100 MBit/s communication
-
PROFINET communication
-
DIN rail mounting
-
881664 data records internal memory
Specifications
| Application |
|
| Design |
housing for DIN rail mounting, parameter setting via PC software, VES004 |
| Application |
continuous vibration monitoring |
| Electrical data |
|
| Operating voltage tolerance[%] |
20 |
| Operating voltage[V] |
24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption[mA] |
200; (24 V) |
| Protection class |
III |
| Inputs / outputs |
|
| Total number of inputs and outputs |
8; (parameterisable) |
| Inputs |
|
| Dynamic inputs |
|
| Number |
4 |
| Connection |
S1...S4 |
| Analogue input - function type |
Current, dynamic |
| input range |
0...10 mA / IEPE / 4...20 mA |
| input frequency [Hz] |
0,1...12000 |
| Resolution |
16 bit |
| sampling rate |
100 kSamples |
| Process value inputs, analogue / digital |
|
| Number |
2 |
| Connection |
IN1, IN2 |
| Digital input - function type |
pulse |
| Circuit |
HTL |
| frequency [Hz] |
0,1...100000 |
| Analogue input - function type |
Current |
| input range [mA] |
4...20 |
| Resolution |
12 bit |
| Outputs |
|
| Max. load[Ω] |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Multi-function outputs, analogue / digital |
|
| Number |
1 |
| Connection |
OU1 |
| Digital output - Electrical design |
PNP |
| Output function |
normally open / normally closed (configurable) |
| Analogue output - function type |
Current |
| output range [mA] |
4...20 |
| Digital outputs |
|
| Number |
1 |
| Connection |
OU2 |
| Digital output - Electrical design |
PNP |
| Output function |
normally open / normally closed (configurable) |
| Interfaces |
|
| Communication interface |
Ethernet |
| Number of Ethernet interfaces |
1 |
| Ethernet |
|
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10/100 MBit/s |
| Connector type |
RJ45 |
| Protocol |
TCP/IP |
| Factory settings |
IP address: 192.168.0.1 |
| Ethernet - PROFINET |
|
| Transmission standard |
100Base-TX |
| Transmission rate |
100 MBit/s |
| Protocol |
PROFINET |
| Factory settings |
IP address: 0.0.0.0, subnet mask: 0.0.0.0, gateway IP address: 0.0.0.0 |
| MAC address |
see type label |
| Note on interfaces |
CC-C (Conformance Class C) (IRT switch), Netload Class III, SNMP
(Simple Network Management Protocol), MRP (Media Redundancy Protocol),
supported network topologies: line, ring
|
| Operating conditions |
|
| Ambient temperature[°C] |
0...60 |
| Storage temperature[°C] |
0...60 |
| Protection |
IP 20 |
| Tests / approvals |
|
| EMC |
EN IEC 61000-6-2, EN IEC 61000-6-4 |
| UL approval - Ta |
60 °C |
| Enclosure type |
open type |
| voltage supply |
Limited Voltage/Current |
| UL approval no. |
L001 |
| File number UL |
E251902 |
| Mechanical data |
|
| Weight[g] |
401.9 |
| Type of mounting |
mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] |
114.2 x 50 x 105.3 |
| Materials |
Housing: PA |
| Data memories |
|
| History memory |
yes |
| Data memory buffered |
yes |
| Data memory type |
ring memory; FIFO |
| Real-time clock |
yes |
| Memory location |
internal |
| Memory interval |
min. 1 min |
| Memory size |
881664 data records |
| Accessories |
|
| Accessories (optional) |
cross-over Ethernet patch cable for the direct connection to the PC |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| COMBICON |
; Maximum cable length: 250 m |
| Electrical connection - Ethernet |
|
| Connector |
RJ45; Contacts: 4 |
