Tired of tangled cables and a bulky tower stealing space from your interactive wall? You need a clean, quiet solution that fits right behind the screen. The iiyama mini PC slides into the OPS slot, turning your display into a standalone workstation. It delivers the power of a 12th-gen Intel Core i5, SSD speed, and Wi-Fi 6 without the clutter.

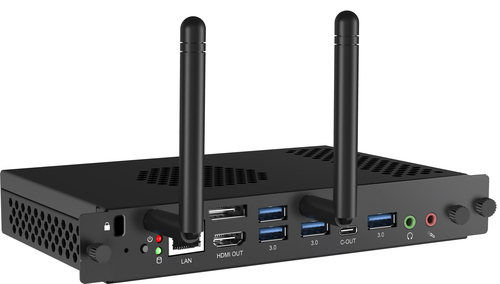

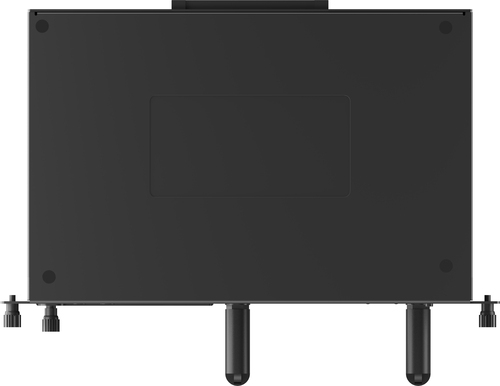

iiyama OPC51204BC-1, Intel Core i5, i5-12450H, 8 GB, 256 GB mini PC
This mini PC is built for businesses that use large format interactive displays for meetings, digital signage, or training. It fits into the dedicated OPS slot, so you avoid floor stands or rear-mount boxes. With 8 GB RAM and a 256 GB SSD, it handles Windows 11 IoT apps, video playback, and web browsing smoothly.
Benefits
- Eliminates cable mess and saves floor space.
- Runs silently below 34 dB, keeping meetings distraction-free.
- Provides iiyama-specific OPS integration for instant setup.
- Offers fast boot and load times with PCIe SSD.
- Supports Wi-Fi 6 and Ethernet for reliable connectivity.
- Secure boot with TPM 2.0 protects your data.
Features
- 12th-gen Intel Core i5-12450H processor
- 8 GB DDR4-3200 memory
- 256 GB M.2 PCIe SSD storage
- Intel UHD Graphics integrated
- Wi-Fi 6 (802.11ax) and Bluetooth 5.2
- 1 DisplayPort 1.4, 1 HDMI 2.0
- 4 USB 3.2 Gen 1 Type-A ports
- Compact 30 mm height, 119 mm width
Specifications
| Processor |
| Maximum turbo power |
95 W |
| Processor base power |
45 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Efficient-core Max Turbo Frequency |
3.3 GHz |
| Performance-core Max Turbo Frequency |
4.4 GHz |
| Efficient cores |
4 |
| Performance cores |
4 |
| Processor cores |
8 |
| Processor model |
i5-12450H |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
3200 MHz |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
32 GB |
| Internal memory |
8 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Thunderbolt 3 ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
0 |
| Design |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Product type |
Mini PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 IoT Enterprise |
| Power |
| Power consumption (standby) |
2.9 W |
| Power consumption (typical) |
80.7 W |
| Operational conditions |
| Storage relative humidity (H-H) |
10 - 95% |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
| Package weight |
957 g |
| Package height |
192 mm |
| Package depth |
72 mm |
| Package width |
260 mm |
| Weight |
600 g |
| Height |
30 mm |
| Depth |
180 mm |
| Width |
119 mm |
| Display |
| Display included |
No |
| Other features |
| Maximum internal memory |
32 GB |
| Operating temperature (T-T) |
0 - 45 °C |
