An Intel® i3 SDM-L slot PC with Windows® 11 which supports 4K (3840x2160) resolution

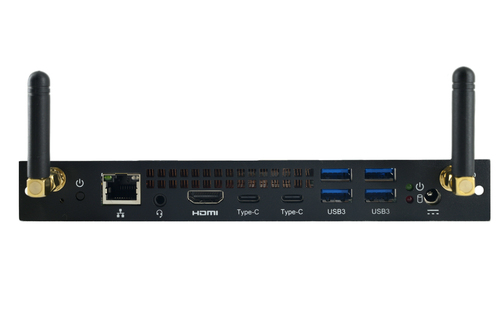

This mini SDM-L PC with an Intel® Core™ i3 processor turns your iiyama large format display from the ProLite LH54 Series and LH75 Series (50" and larger) into a stand-alone solution. It comes equipped with a powerful Intel® processor, integrated Ultra HD graphics, and a fast SSD. It features 4 USB3.2 Gen1 ports and 2 Type-C ports (USB3.2 + DP ALT).
Specifications
| Processor |
| Maximum turbo power |
64 W |
| Processor base power |
28 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Efficient-core Max Turbo Frequency |
3.3 GHz |
| Performance-core Max Turbo Frequency |
4.4 GHz |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
i3-1220P |
| Processor generation |
12th gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| SSD interface |
M.2 |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
0 |
| Design |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Performance |
| Product type |
Mini PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 IoT Enterprise |
| Power |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
72 W |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-5 - 45 °C |
| Weight & dimensions |
| Package weight |
610 g |
| Weight |
400 g |
| Height |
25 mm |
| Depth |
195 mm |
| Width |
110 mm |
| Display |
| Display included |
No |
| Other features |
| Operating temperature (T-T) |
-5 - 45 °C |
