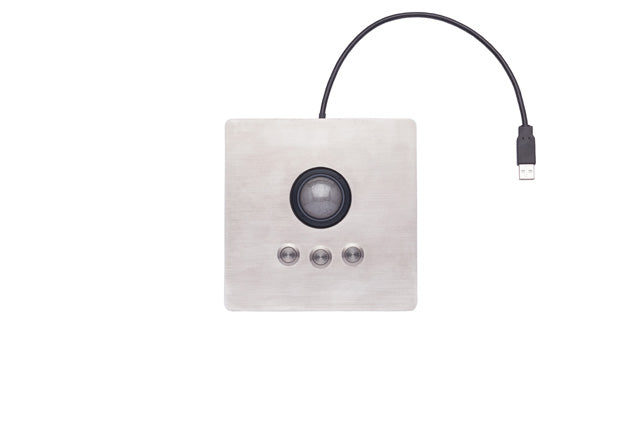

iKey PM-TB-USB, Panel Mount Industrial Optical Trackball

When a fixed workstation needs accurate pointer control without relying on a loose external mouse, a panel-mounted trackball can make operation easier and more controlled. The iKey PM-TB-USB is built for this type of setup, combining a rugged panel mount design with an optical trackball and USB connection for demanding equipment and operator stations.

iKey PM-TB-USB, Panel Mount Industrial Optical Trackball

The iKey PM-TB-USB gives you a dedicated pointing solution for equipment where a compact, fixed control is more practical than a conventional mouse. Its panel mount format keeps the trackball in a set position, while the USB design provides a straightforward connection to compatible systems. The brushed stainless steel key switch is designed for repeated operation and provides tactile feedback with mechanical snap.

Usages

The trackball is suited to fixed equipment where users need reliable cursor control without moving a separate mouse around.

• Industrial control panels

• Fixed operator workstations

• Equipment consoles

• Systems requiring panel-mounted pointing control

Benefits

The panel mount design helps keep the pointing device securely positioned during operation. The optical trackball gives you a practical way to control the pointer from a fixed location. USB connectivity makes the iKey PM-TB-USB suitable for systems supporting compatible Windows and Macintosh operating systems. Its shock and vibration specifications support use in demanding environments. The compact 6.0" x 6.0" x 1.78" (w-h-d) size also helps keep the installation area manageable.

Key Features

• Optical trackball: Provides fixed pointing control for panel-mounted equipment.

• USB connection: Uses USB with 45mA@5V (from CPU port) power.

• Panel mount construction: Designed for fixed installation in suitable equipment and workstations.

• Brushed stainless steel key switch: Provides tactile operation with mechanical snap.

• Key switch life: Rated for Greater than 1 Million Cycles with 0.051 in travel.

• Shock resistance: Tested with 3x11 ms pulses of 50g on each of 3 axes.

• Vibration testing: 0.04g/Hz power spectral density across 20Hz - 2 kHz for 3 hours per axis.

• Temperature range: Operates from 0C to +55C (32F to 181F) and stores from -40C to +85C (-40F to 185F).

• Certifications: NEMA 4X, CE UL60950, FCC Part 15 Class B.

• Dimensions and weight: 6.0" x 6.0" x 1.78" (w-h-d) 152.4mm x 152.4mm x 45.2mm and 2.25 lbs +/-0.10 lbs (1.02 kg +/-0.05 kg).

SPECIFICATION
