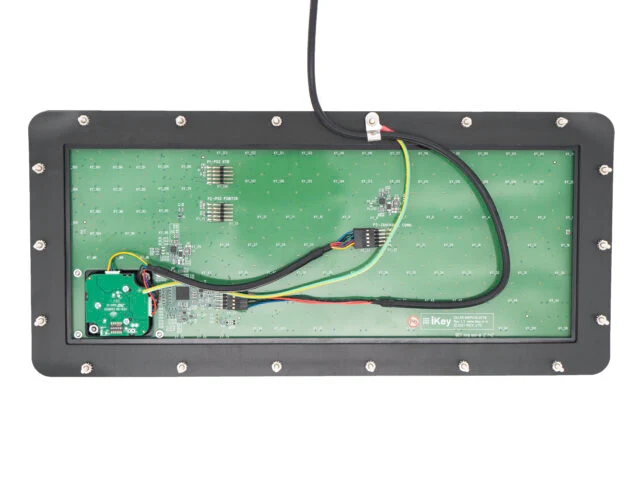

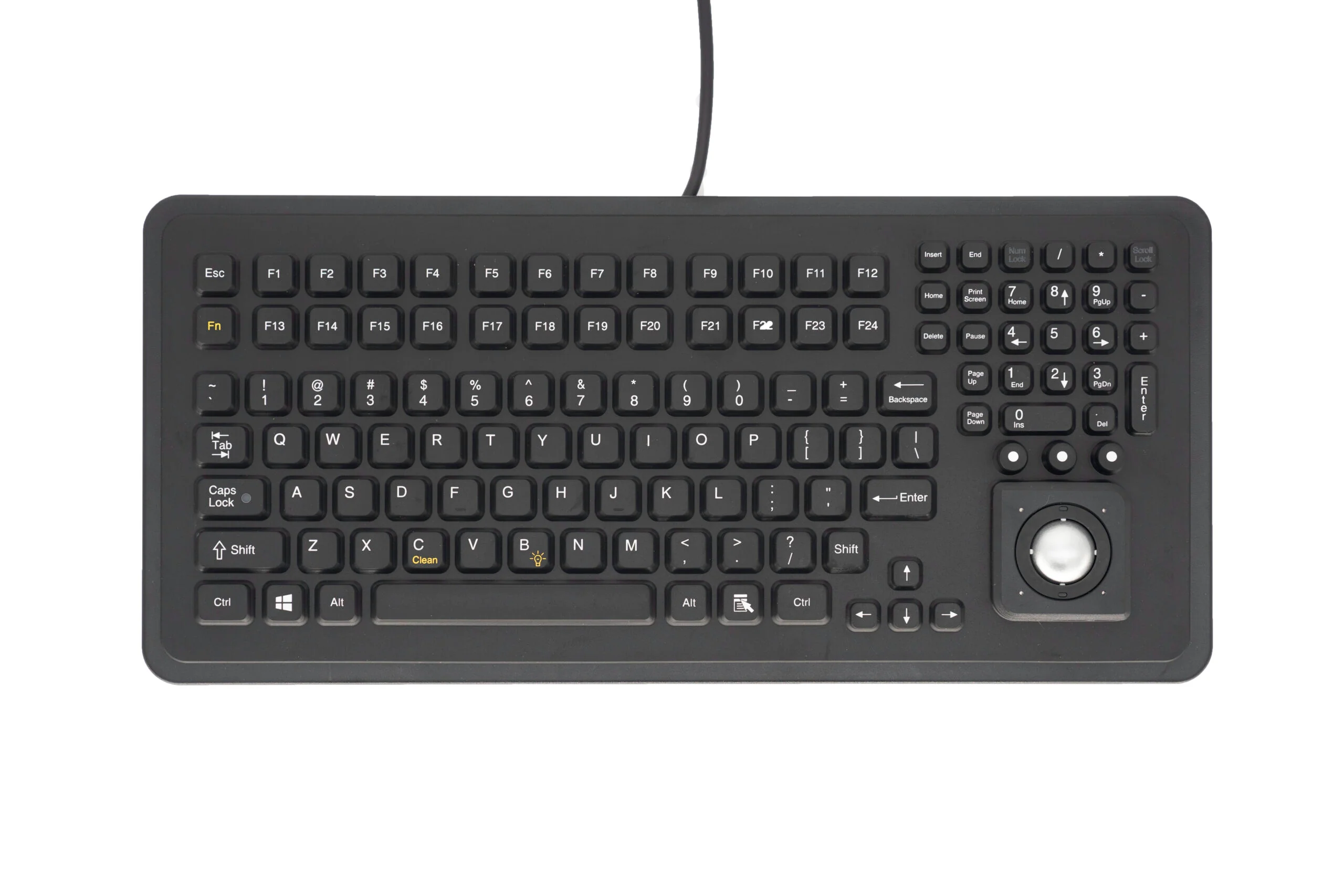

iKey PMU-5K-TB-USB, Panel Mount Keyboard with Trackball & USB Cable
The iKey PMU-5K-TB-USB is a panel mount keyboard with an integrated trackball and USB cable, designed for applications that require a durable keyboard and pointing device in a compact panel-mounted format. It uses industrial silicone rubber key switches with tactile feedback and mechanical snap.
The keyboard keys have a travel of 0.055 in. (1.4mm), an actuation force of 6.35 oz. +/- 1.06 oz. (180g +/- 30g), and a life greater than 10 Million Cycles. The supplied cable length is 10 feet (3 meters), and the design is listed as "Y" PS/2, providing separate keyboard and mouse connections.
The iKey PMU-5K-TB-USB is specified for demanding operating conditions, with NEMA 4X and UL60950 certifications. It is designed to withstand shock consisting of 3x11 ms pulses of 50g on each of 3 axes. The specified vibration power spectral density is 0.04g/Hz across a frequency range of 20Hz - 2 kHz.
The keyboard supports PS/2 and USB power specifications. PS/2 keyboard power is 50mA@5V from the Keyboard port, pointer power is 20mA@5V from the Mouse port, and USB power is 70mA@5V from the CPU port. The listed compatibility for PS/2 keyboard/trackball is all Windows Operating Systems.
The keyboard has a storage temperature range of -40C to +85C (-40F to +185F) and an operating temperature range of 0C to +65C (+32F to 149F). It weighs 2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg), measures 15.39" x 7.06" x 0.50" (w-h-d) 390.9mm x 179.3mm x 12.7mm, and includes a 1 year limited warranty. The specified humidity is 100% when properly installed.
Key features
-
Panel mount keyboard with integrated trackball
-
Industrial silicone rubber key switches
-
Greater than 10 Million Cycles key switch life
-
Tactile with Mechanical Snap feedback
-
10 feet (3 meters) cable length
-
NEMA 4X and UL60950 certifications
-
50g shock testing on each of 3 axes
-
PS/2 and USB power specifications
SPECIFICATION
| Certifications |
NEMA 4X UL60950 |
| Shock |
3x11 ms pulses of 50g on each of 3 axes |
| Cable Length |
10 feet (3 meters) |
| Design |
"Y" PS/2 (providing separate keyboard and mouse connections) |
| Key Switch Material |
Industrial Silicone Rubber |
| Life |
Greater than 10 Million Cycles |
| Travel |
0.055 in. (1.4mm) |
| Actuation Force |
6.35 oz. +/- 1.06 oz. (180g +/- 30g) |
| Feedback |
Tactile with Mechanical Snap |
| Vibration Power Spectral Density |
0.04g/Hz |
| Frequency Range |
20Hz - 2 kHz |
| Duration of Test Per Axis |
3 hours |
| PS2 |
KEYBOARD: 50mA@5V (from Keyboard port)
POINTER: 20mA@5V (from Mouse port)
|
| USB |
70mA@5V (from CPU port) |
| PS/2 KEYBOARD/TRACKBALL |
All Windows Operating Systems |
| Storage |
-40C to +85C (-40F to +185F) |
| Operating |
0C to +65C (+32F to 149F) |
| Weight |
2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg) |
| Humidity |
100% (when properly installed) |
| Dimensions |
15.39" x 7.06" x 0.50" (w-h-d) 390.9mm x 179.3mm x 12.7mm |
| Screws |
0.75" (19.1mm) |
| Cutpit |
13.52" x 5.18" (w-h) 343.4mm x 131.6mm |
