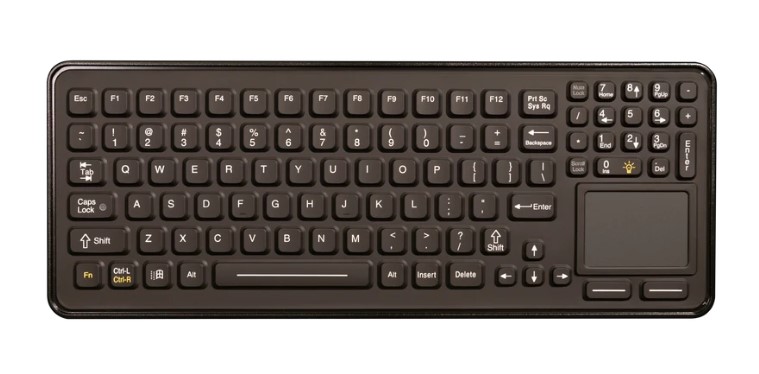

iKey SLP-97-TP-USB, Panel Mount Keyboard with Touch Pad & Backlighting
The iKey SLP-97-TP-USB, Panel Mount Keyboard with Touch Pad & Backlighting is a rugged panel mount keyboard designed for applications requiring durable input and integrated pointing control. It uses industrial silicone rubber key switches with a tactile mechanical snap and a touchpad pointing device.
The iKey SLP-97-TP-USB supports USB and PS/2 cable options. Power specifications include 220mA@5V from the CPU port when using USB, while the PS/2 configuration uses separate keyboard and touchpad power connections.
Designed for harsh operating conditions, the keyboard is 100% humidity resistant and supports an operating temperature of -40°F to +158°F (-40°C to +70°C). It also has specified vibration and shock resistance, including 50g shock pulses on each of 3 axes.
Key features
-
Panel mount keyboard with touchpad
-
Industrial silicone rubber key switches
-
Greater than 10 million cycles key switch life
-
Tactile feedback with mechanical snap
-
USB and PS/2 cable options
-
100% humidity resistant
-
Operating temperature -40°F to +158°F (-40°C to +70°C)
-
ABS Polycarbonate case material
SPECIFICATION
| KEY SWITCH |
|
| MATERIAL |
Industrial Silicone Rubber |
| LIFE |
Greater Than 10 Million Cycles |
| TRAVEL |
0.055 in. |
| ACTUATION FORCE |
7.05 oz. +/- 1.06oz (200g +/- 30g) |
| FEEDBACK |
Tactile with Mechanical Snap |
| POWER |
|
| PS2 |
|
| KEYBOARD |
210mA@5V (from Keyboard port) |
| TOUCH PAD |
10mA@5V (from Mouse port) |
| USB |
220mA@5V (from CPU port) |
| TEMPERATURE RANGE |
|
| STORAGE |
-40°F to +194°F (-40°C to +90°C) |
| OPERATING |
-40°F to +158°F (-40°C to +70°C) |
| HUMIDITY |
|
| HUMIDITY |
100% Humidity Resistant |
| VIBRATION |
|
| POWER SPECTRAL DENSITY |
.04g²/Hz |
| FREQUENCY RANGE |
20Hz-2Khz |
| DURATION OF TEST PER AXIS |
3 hours |
| SHOCK |
|
| SHOCK |
3 X 11 ms pulses of 50g on each of 3 axes |
| WEIGHT |
|
| WEIGHT |
1.50 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg) |
| CABLE |
|
| CABLE |
PS/2 or USB |
| KEY SWITCH |
|
| KEY SWITCH |
Material: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.55in. ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap |
| VIBRATION |
|
| VIBRATION |
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY
RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
|
| POWER |
|
| POWER |
PS2: KEYBOARD: 210mA@5V (from Keyboard port) TOUCHPAD: 10mA@5V (from Mouse port)
USB: 220mA@5V (from CPU port)
|
| TEMPERATURE RANGE |
|
| TEMPERATURE RANGE |
STORAGE: -40F to +194F (-40C to +90C) OPERATING: -40F to +158F (-40C to +70C) |
| DIMENSIONS |
|
| DIMENSIONS |
15.10" x 6.05" x 1.09" (w-h-d) 383.5mm x 153.7mm x 27.7mm |
| POINTING DEVICE |
|
| POINTING DEVICE |
Touchpad |
| CASE MATERIAL |
|
| CASE MATERIAL |
ABS Polycarbonate |
