Infineon DEMO BGT24ATR22 DPA Kit with 24GHz Radar Sensor & Dual-patch Antennas

Imagine you need to see objects that are hidden from the eye, but you have no tool that can do it reliably. The Infineon DEMO BGT24ATR22 DPA Kit with 24GHz Radar Sensor & Dual-patch Antennas gives you a ready-to-use radar system that works in the 24 GHz band. It is built for developers who want to test motion detection, angle of arrival and direction of motion without designing a sensor from scratch. If you have struggled with noisy data or bulky prototypes, this kit solves those problems instantly.

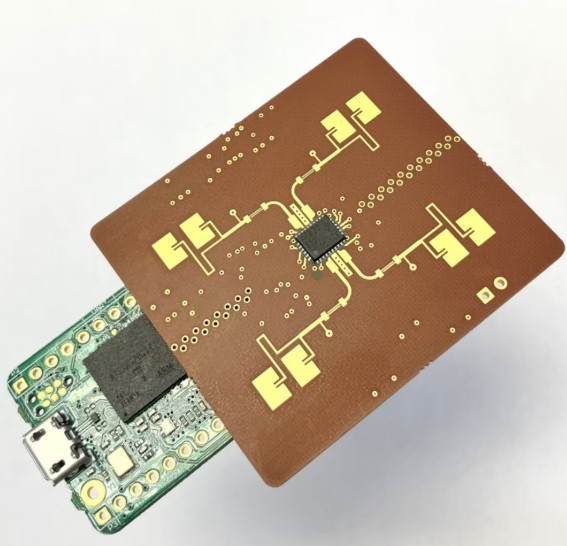

Infineon DEMO BGT24ATR22 DPA Kit with 24GHz Radar Sensor & Dual-patch Antennas

Many engineers need a compact radar that can measure both distance and direction, yet most modules miss one of those features. Missing direction data means you cannot tell if an object is moving toward or away from you, which limits safety and automation projects. This kit combines a 24 GHz XENSIV sensor with two transmit and two receive patch antennas, giving you accurate angle-of-arrival and motion detection in one package. The USB 2.0 interface and IC configuration let you start testing within minutes, turning a complex radar design into a simple plug-and-play experiment.

Key Features

• 24 GHz to 24.25 GHz frequency range.
• Two transmit and two receive patch antennas.
• Angle-of-arrival detection enabled.
• Direction of motion measurement.
• Noise figure of 13 dB for clear signals.
• Automotive qualification for safety-critical use.
• DC input for simple power supply.
• Hi-Speed USB 2.0 interface.
• IC port for configuration and data transfer.
• Supported by Radar Baseboard MCU7.
• Compact 48 x 42 mm RF shield form factor.
• Works with Radar Fusion GUI software.

Specifications
