Infineon DEMO BGT24ATR22 YPA kit with 24GHz Radar Sensor & Yagi patch Antennas

Tired of guessing how objects move in your prototype? The Infineon DEMO BGT24ATR22 YPA kit gives you a ready-to-use 24 GHz radar sensor with built-in Yagi and patch antennas, so you can see distance, speed and direction in real time. Engineers and hobbyists often struggle with expensive test equipment that requires complex integration. This kit removes that barrier and lets you start measuring right away.

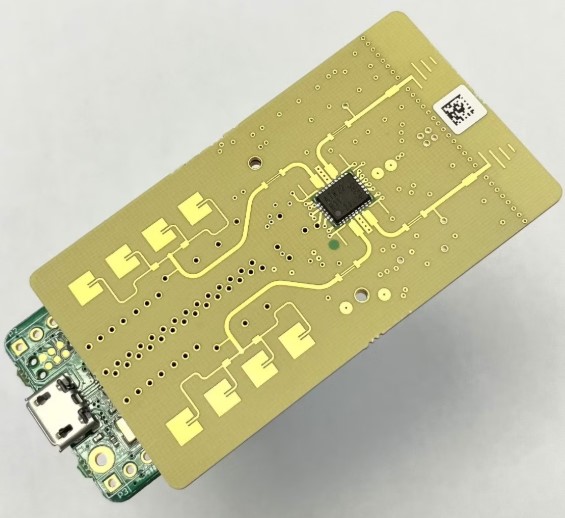

Infineon DEMO BGT24ATR22 YPA kit with 24GHz Radar Sensor & Yagi patch Antennas

The kit solves the problem of missing reliable radar data during early development. Without accurate angle-of-arrival and motion detection, designs can fail late in the cycle, costing time and money. Infineon provides a compact demo board, dual transmit and receive antennas, and a USB interface that delivers data straight to your PC. The result is a clear, low-cost path from concept to functional test.

Key Features

• XENSIV BGT24ATR22 24 GHz radar sensor.
• Frequency range 24 GHz to 24.25 GHz.
• Angle-of-arrival detection enabled.
• Direction-of-motion detection enabled.
• Two transmit and two receive Yagi/patch antennas.
• 13 dB noise figure for clear signal.
• Operating temperature -40 C to +105 C.
• Hi-Speed USB 2.0 interface for fast data transfer.
• IC bus for configuration and data exchange.
• Compatible with Radar Baseboard MCU7.
• RF shield size 32 58.5 mm.

Specifications
