Infineon EiceDRIVER 1EDI302xAS Evaluation Board

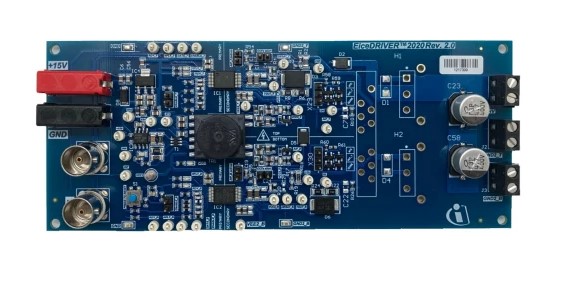

If you are tired of guessing whether a gate driver will work in your motor-drive prototype, you need a board that lets you test it fast and safely. The Infineon EiceDRIVER 1EDI302xAS Evaluation Board is a ready-to-use platform that lets engineers connect a single-channel IGBT driver and see real-time performance. It solves the common problem of long development cycles caused by missing evaluation hardware, so you can move from concept to test bench in hours, not weeks.

Infineon EiceDRIVER 1EDI302xAS Evaluation Board

Designers often struggle with isolated gate drivers because they need reliable isolation, high current output, and protection features all in one package. Without a proper board, you risk damaging expensive power devices or getting inaccurate measurements. This evaluation board removes those worries. It includes the 1EDI3021AS and 1EDI3020AS drivers, coreless transformer isolation, and built-in protection such as active short-circuit detection and UVLO. Plug the board into your power stage, apply the external supply, and you instantly have a safe, isolated test environment that mirrors real-world operation.

Key Features

• Isolated single-channel gate driver for IGBT applications.
• Coreless transformer isolation for high voltage safety.
• CMOS-compatible logic inputs.
• High-current driver output suitable for industrial power stages.
• Active Short Circuit (ASC) protection on the low side.
• Desaturation detection and soft turn-off support.
• Under-Voltage Lockout (UVLO) to prevent undervoltage operation.
• Fault monitoring with clear reporting signals.
• Integrated ADC for temperature measurement.
• Ready-to-use test points and connector interfaces.
• External power supply required for flexible voltage selection.
• Complete design support: simulation files, user manual, and evaluation documentation.
