Designing a reliable control unit for cars or industrial machines is hard. You need a chip that can run fast, stay safe, and work in extreme temperatures. If the chip fails, the whole system can stop, costing time and money. The Infineon SAK-TC377TX-96F300S AB gives you a 300 MHz processor, built-in safety features, and plenty of memory, so you can meet strict standards without extra hardware.

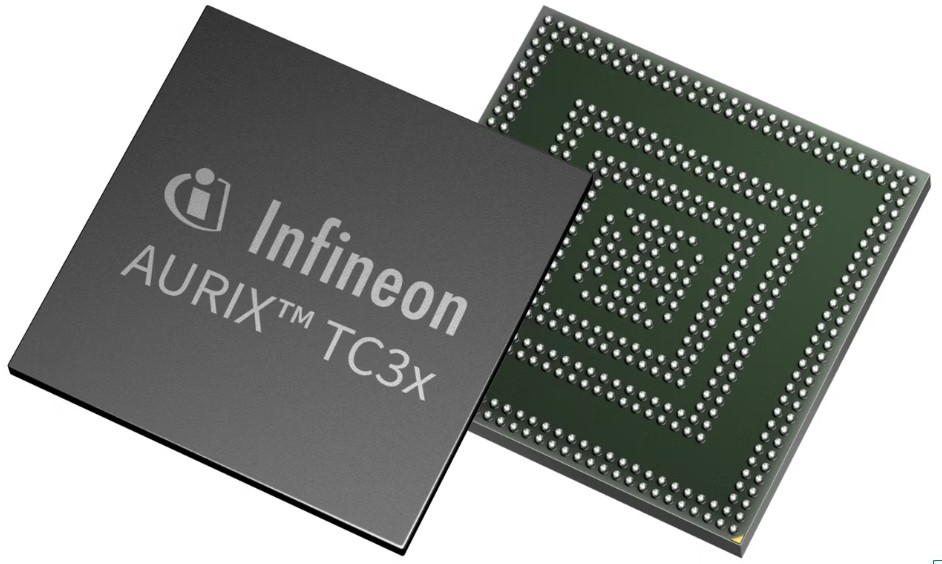

Infineon SAK-TC377TX-96F300S AB, 32 Bit Microcontroller, Aurix TriCore, 300MHz with Infineon
You need a brain that can handle many tasks at once and still keep safety in mind. This microcontroller is a 32-bit Aurix TriCore device that runs at 300 MHz. It is made for automotive and industrial safety-critical applications. Engineers who struggle with slow processors or missing safety modules will find this chip solves both speed and compliance problems. With Infineons proven technology, you get a stable platform that reduces development risk.
Key Features
- 3 TriCore™ running at 300 MHz
- Supporting floating point and fix point
- 6 MB flash withECC protection
- 3 MB SRAM with ECC protection
- 2x Gbit Ethernet
- 12x CAN FD, 1xFlexRay, 12x LINs, 5xQSPI
- eVita fullHSM(ECC256 and SHA2)
- LFBGA-292 package
- ISO 26262 ASIL-D support
- AUTOSAR4.2 support
- Single voltage supply 5 V or 3.3 V
- Standby mode controller
Specifications
| Processor |
|
| # of cores / lockstep cores |
3/3 |
| DSP Functionality |
Yes |
| Floating Point Unit |
Yes |
| Hardware Accelerator |
No |
| Safety & Compliance |
|
| ASIL/SIL support |
ASIL-D/SIL-3 |
| Classification |
ISO 26262-compliant |
| Oscillator Watchdog |
Yes |
| Watchdog Timer |
Yes |
| Memory |
|
| Program Memory |
6 MByte |
| SRAM (incl. Cache) |
4352 kByte |
| Type of Memory |
Flash |
| eMMC |
Yes |
| DMA Channels |
128 |
| Analog & I/O |
|
| A/D Input Lines |
92 |
| Number of ADC Modules |
8 |
| I/O Operation Voltages range |
3.3 V to 5 V |
| Communication Interfaces |
|
| 2xEthernet |
|
| CAN Nodes |
12 |
| LIN |
12 |
| SPI |
5 |
| External Bus Interface |
No |
| Clock & Power |
|
| On-chip Clock Generation |
Yes |
| On-chip Voltage Regulator |
Yes |
| Real Time Clock |
Yes |
| General |
|
| Family |
AURIX™ TC3 |
| Temperature |
-40°C - +125°C |
