Tired of spending hours wiring a test board just to talk to an Infineon chip? The Infineon UIO STICK, Four GPIOs, 3 on-board status LEDs, USB HID device gives you a ready-to-use bridge between your PC and Infineon devices. It lets you program, debug, and monitor without soldering a custom circuit. If you need reliable communication for motor control or automotive prototypes, this stick removes the guesswork and speeds up development.

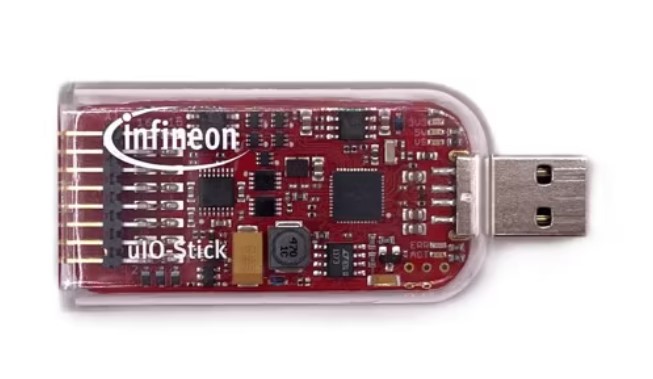

Infineon UIO STICK, Four GPIOs, 3 on-board status LEDs, USB HID device
Many engineers struggle with complex wiring when they try to connect a System Basis Chip to a laptop. Missing signals or wrong voltage levels can damage the chip and delay testing. This problem matters because every lost hour adds cost to a project that already has tight deadlines. The UIO STICK solves it by providing a USB HID interface, four configurable GPIOs and three LEDs that show power, data and error status, so you can start testing in minutes.
Key Features
- Communication with device via LIN, SPI
- Four GPIOs
- PWM signal generation up to 20 kHz
- Measurement of analog voltages up to 20V
- Read and keep functionality
- USB HID device (no additional driver)
- µIO-Stick can power a target device
- Possibility of an external power supply
- 3 on-board status LEDs
- Additional BSL updater GUI
Specifications
| Product |
|
| Board Type |
Evaluation Board |
| Family |
System Basis Chip (SBC), High/Low Side Switch, MOTIX™ Multi Half-Bridge ICs,
MOTIX™ MCU | 32-bit motor control SoC
|
| Application |
|
| Qualification |
Automotive |
| Sub Application |
Establish communication between Infineon device and PC |
| Interfaces |
|
| Interfaces |
USB, SPI, LIN, GPIO, UART, Analog |
| Electrical Specifications |
|
| Input Type |
DC |
| Output Voltage range |
3.3 V to 12 V |
