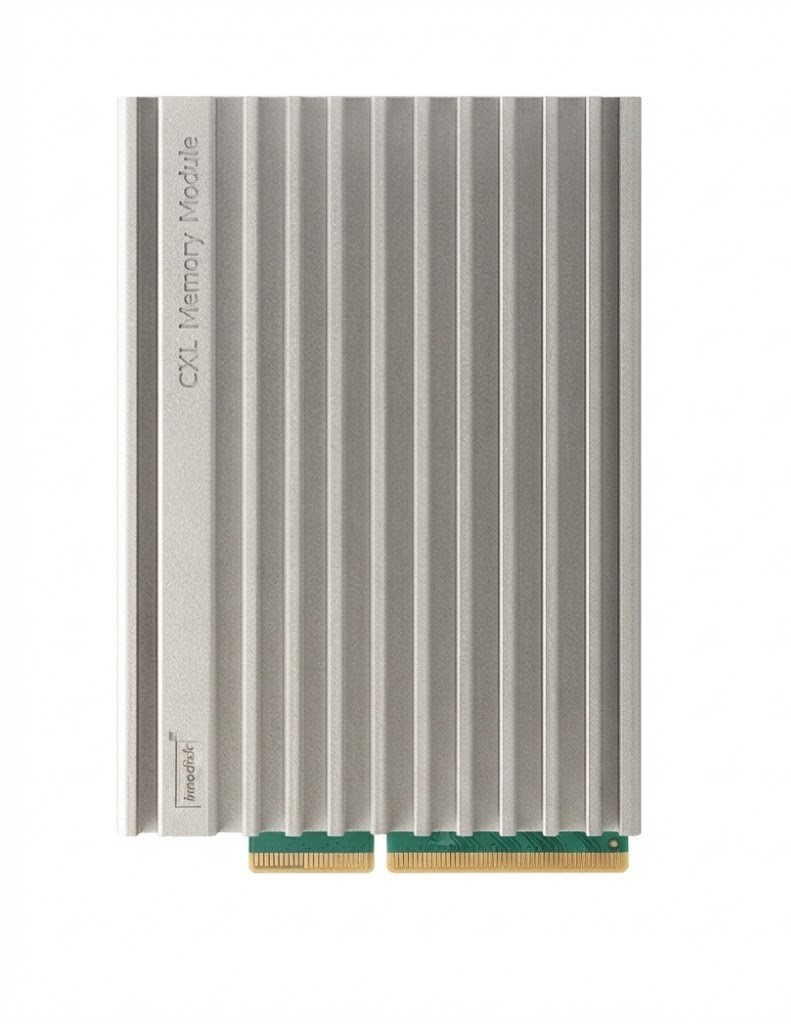

InnoDisk MM111-5DGH3A2BCA00, E3.S 2T PCIe Gen 5 CXL 2.0 128GB Memory Module

InnoDisk MM111-5DGH3A2BCA00, E3.S 2T PCIe Gen 5 CXL 2.0 128GB Memory Module

The InnoDisk MM111-5DGH3A2BCA00 is a 128GB CXL memory module designed for compatible data center and enterprise computing systems. It uses DDR5 DRAM technology and the E3.S 2T form factor to provide high-capacity memory expansion in a compact enterprise design.

The module complies with CXL 2.0 and supports Type 3 CXL with CXL.mem and CXL.io protocols. Its PCIe Gen 5 x8 interface provides the specified high-speed connectivity for compatible CXL-enabled systems.

The MM111-5DGH3A2BCA00 uses an EDSFF 2C connector with an 84-pin configuration. The module is available in 64GB, 96GB, and 128GB densities, with the specified configuration providing 128GB capacity.

Designed for operating temperatures from 0°C to 70°C, the module is suitable for compatible systems operating within the specified environmental range. Its E3.S 2T form factor is intended for systems supporting this EDSFF memory module design.

The InnoDisk MM111-5DGH3A2BCA00 combines DDR5 memory technology, CXL 2.0 Type 3 support, and PCIe Gen 5 x8 connectivity in a 128GB E3.S 2T module. It is designed for compatible platforms requiring CXL-based memory expansion.

Key Features

• 128GB memory capacity
• CXL 2.0 compliance
• CXL 2.0 Type 3 protocol
• CXL.mem & CXL.io support
• PCIe Gen 5 x8 interface
• DDR5 DRAM IC generation
• E3.S 2T form factor
• EDSFF 2C 84-pin connector
• 0°C ~ 70°C operating temperature
• 64GB, 96GB, 128GB density options
