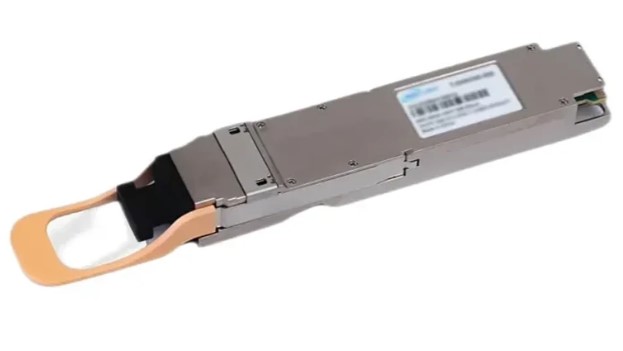

InnoLight T-OH8CNT-N00 800G DR8+ Universal OSFP112 Transceiver Module

The InnoLight T-OH8CNT-N00 800G DR8+ Universal OSFP112 Transceiver Module is an 800G optical transceiver designed for high-speed Ethernet networking over single-mode fiber. It uses PAM4 modulation and a 1310nm typical wavelength, supporting transmission distances of up to 2km (6562 ft).

InnoLight T-OH8CNT-N00 800G DR8+ OSFP112 1310nm 2km PAM4 Transceiver

The InnoLight T-OH8CNT-N00 features the OSFP112 form factor and supports a maximum data rate of 800Gbps. Its DR8+ design uses PAM4 modulation and an MTP/MPO-12 APC connector for high-speed optical connectivity.

Designed for single-mode fiber applications, the module operates across a 1305–1318nm TX/RX wavelength range, with a typical wavelength of 1310nm. Its maximum transmission distance of 2km makes it suitable for longer-reach 800G network connections compared with short-reach multimode solutions.

The transceiver can be used for 800G Ethernet networking, data center interconnects, high-speed switch connections, and other high-bandwidth single-mode fiber links requiring extended optical reach. Its OSFP112 form factor supports deployment in compatible high-density networking equipment.

With 16W maximum power consumption, a 3.5dB extinction ratio, and an operating temperature range of 0°C to 70°C, the T-OH8CNT-N00 provides high-speed optical connectivity for demanding network environments.

Key Features

• 800G OSFP112 data rate and form factor

• InnoLight T-OH8CNT-N00 model

• DR8+ transceiver type

• Maximum data rate of 800Gbps

• PAM4 modulation

• 1310nm typical TX/RX wavelength

• 1305–1318nm TX/RX wavelength range

• Up to 2km (6562 ft) transmission distance

• Single-mode fiber media

• MTP/MPO-12 APC connector

• Maximum power consumption of 16W

• 3.5dB extinction ratio

• Operating temperature of 0°C to 70°C (32°F to 158°F)

• Suitable for 800G Ethernet, high-speed networking, and data center interconnects

Specifications:
