Struggling to get reliable depth data when dust or water splashes hit your sensor? You need a camera that keeps working while you move around a busy factory floor or outdoor site. The Intel solution delivers high-speed stereo imaging that stays accurate up to six metres, even in dusty, wet conditions. It captures depth data fast, protects the optics, and sends the stream over a single high-bandwidth link.

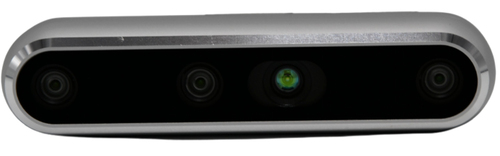

Intel RealSense Depth Camera D457, Camera, Intel, Black, Grey, 6 m Range
This is a depth camera designed for developers and engineers building robotics, inspection or AR systems. It combines a 90 fps infrared pair with a 30 fps color sensor, packaged in an IP65 enclosure. The on-board serializer lets you transmit high-bandwidth streams over GMSL, requiring only a matching de-serializer on the host.
Benefits
- Capture precise 3D data up to 6 m without recalibrating.

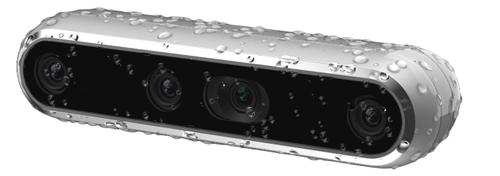

- Work in dusty or wet environments thanks to IP65 protection.
- Reduce latency with 90 fps infrared imaging.
- Simplify wiring using a single high-speed GMSL link.
- Fit smoothly into your current hardware stack.
- Keep your project on schedule with reliable, consistent depth output.
Features
- Maximum range 6 m.
- Infrared resolution 1280 x 720.
- Color resolution 1280 x 800.
- Infrared frame rate 90 fps.
- Color frame rate 30 fps.
- IP65 sealed enclosure.
- On-board Maxim serializer.
- Compact dimensions 124 x 29 x 36 mm.
Specifications
| Features |
| Maximum range |
6 m |
| Product colour |
Black, Grey |
| Brand compatibility |
Intel |
| Product type |
Camera |
| Camera |
| Infrared camera frame rate |
90 fps |
| Color camera frame rate |
30 fps |
| Infrared camera resolution |
1280 x 720 pixels |
| Infrared (IR) camera |
Yes |
| Color camera resolution |
1280 x 800 pixels |
| Weight & dimensions |
| Height |
29 mm |
| Depth |
36 mm |
| Width |
124 mm |
