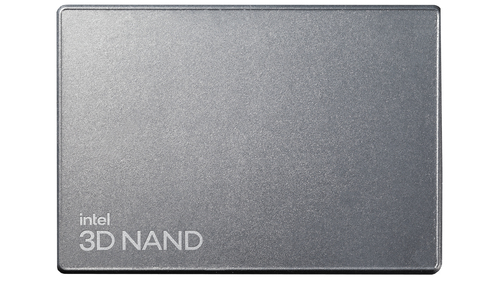

Intel (SSDPF2KX038TZ01) D7 P5510 Series SSD - 3.84 TB - U.2 PCIe 4.0 x4 (NVMe)
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Intel® Rapid Start Technology
Intel® Rapid Start Technology allows quick system resumes from the hibernate state.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
Intel® Smart Response Technology
Intel® Smart Response Technology combines the fast performance of a small solid state drive with the large capacity of a hard disk drive.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Intel® Remote Secure Erase
Intel® Remote Secure Erase provides IT administrators a secure method for remotely wiping an Intel SSD from a familiar management console when retiring or repurposing a system. This allows for immediate re-use while saving administrative time and costs.
Specifications
| Features |
| SSD ARK ID |
205379 |
| Mean time between failures (MTBF) |
2000000 h |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| SSD temperature monitoring |
Yes |
| Enhanced Power Loss Data Protection technology |
Yes |
| End-to-End Data Protection |
Yes |
| Write latency |
15 µs |
| Read latency |
82 µs |
| Sequential latency - write (up to) |
13 µs |
| Sequential latency - read (up to) |
10 µs |
| Random latency - write (up to) |
15 µs |
| Random latency - read (up to) |
82 µs |
| Random write (100% span) |
170000 IOPS |
| Random read (100% span) |
700000 IOPS |
| Security algorithms |
256-bit AES |
| Hardware encryption |
Yes |
| Component for |
Server/workstation |
| Memory type |
3D TLC NAND |
| NVMe |
Yes |
| Interface |
PCI Express 4.0 |
| SSD form factor |
U.2 |
| SSD capacity |
3.84 TB |
| Power |
| Power consumption (idle) |
5 W |
| Brand-specific features |
| Intel® Smart Response Technology |
No |
| Intel High Endurance Technology (HET) |
No |
| Intel® Rapid Start Technology |
No |
| Intel® Remote Secure Erase |
No |
| Operational conditions |
| Non-operating vibration |
3.13 G |
| Operating vibration |
2.17 G |
| Maximum operating temperature |
70 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Other features |
| Launch date |
Q4'20 |
| SSD endurance rating |
Up to 7.0PBW (JESD219 workload) |
| SSD shock |
1000G,0.5ms |
| Sequential reading |
6500 MB/s |
| Sequential writing speed |
3400 MB/s |
| Status |
Launched |
| Internal memory type |
PCIe 4.0 x4, NVMe |
| Operating temperature (T-T) |
0 - 70 °C |
| Processor family |
Intel SSD D7 |
