Milesight IoT Controller Modbus to LoRaWAN Converter UC100 RS485

Many factories and farms still use Modbus devices that only talk over RS485 wires. Those wires can be long, costly to install, and they limit where you can place sensors. When you cannot see the data in real time, you lose control and may waste energy or miss a fault. The IoT Controller Modbus to LoRaWAN Converter UC100 RS485 turns that wired link into a low-power wireless link, letting you collect data from anywhere without digging new cables.

Milesight IoT Controller Modbus to LoRaWAN Converter UC100 RS485 with IoT

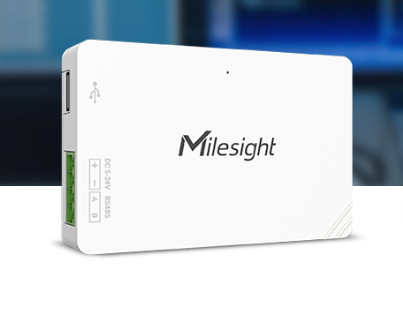

Imagine a tiny box that lets old Modbus meters talk to modern cloud platforms. That is exactly what this converter does. It reads Modbus RTU data on an RS485 line and sends it over LoRaWAN, a long-range, low-power network. If you struggle with missing sensor readings or expensive wiring, this device gives you a clear, wireless path to your IoT dashboard.

Usages

The UC100 RS485 fits in any place where you need remote monitoring. Use it in water-meter stations to send consumption data to a central server. Install it on temperature probes in a greenhouse and watch climate changes from a phone. It works for building automation, sending HVAC status to a management system. It also helps in oil and gas fields where devices are spread over large distances and power is limited.

Benefits

• Eliminates costly cable runs and reduces installation time.
• Provides real-time data to cloud platforms for faster decisions.
• Works on battery power, extending device life without frequent changes.
• Supports multiple frequency bands, so it fits most regional networks.
• Easy configuration through a USB-C port, no special software needed.

Key Features

• LoRaWAN and Milesight D2D wireless technology.

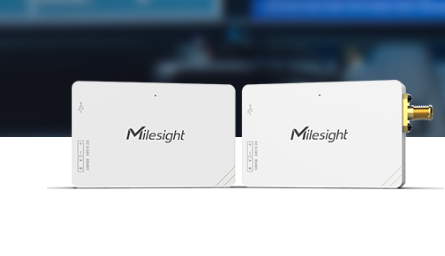

• Internal or optional external antenna for flexible placement.
• Supports CN470, IN865, EU868, RU864, US915, AU915, KR920, AS923 bands.
• Tx power up to 22 dBm for reliable long-range links.
• RS485 port with 1200-115200 bps baud rate range.
• Modbus RTU and passthrough protocol support.
• USB-C connector for power, configuration, and console access.
• Built-in 120 termination resistor switch.
• Advanced functions: threshold alarms, data storage for 800 entries, IF-THEN commands, and firmware over-the-air updates.
• Power supply 5-24 V DC via terminal block or 5 V/1 A via USB-C, consuming less than 0.5 W.

Specifications
