Features
Performance & Scale Without Compromise
The TrueNAS M-Series combines DRAM, TrueCache® NVMe, and NVMe-oF with high-density disks for low-latency flash performance at flash capacity and cost, yet capacity for hundreds of terabytes.
TrueCache® NVMe Technology
Found in the M30, M40, and M60, TrueCache® NVMe delivers fast, reliable, low-latency flash cache with endurance approaching 3PB of writes, enabling protection and mirroring for high availability.
Self-Healing Data Protection
Utilizing the OpenZFS file system, M-Series autonomously detects and repairs silent data corruption errors at each data block, ensuring data integrity and resilience against unexpected issues.
Intelligent Storage Optimization
The M-Series employs storage with compression, snapshots, clones, and replication to enhance storage efficiency and data protection. Dynamic Compression for (d) reduces capacity requirements for active datasets.
Benefits
Unmatched Data Integrity
The self-healing capabilities of the openZFS file system ensure data remains pristine, automatically correcting any corruption and preventing data loss.
Cost-Effective Scalability
With intelligent storage optimization features like compression, clones, and snapshots, organizations can scale storage hardware while minimizing costs and reducing the need for frequent hardware upgrades.
Enhanced Data Protection
Integrated snapshots and replication protect against data loss from hardware failure, ransomware, or accidental deletion, allowing quick recovery and business continuity.
Capacity Powerhouse
Enterprise storage solutions, offering unparalleled performance and reliability for mission-critical operations. Designed with high-availability in mind, it seamlessly integrates open-source economics with enterprise-grade hardware, providing organizations with flexibility and scalability they demand.

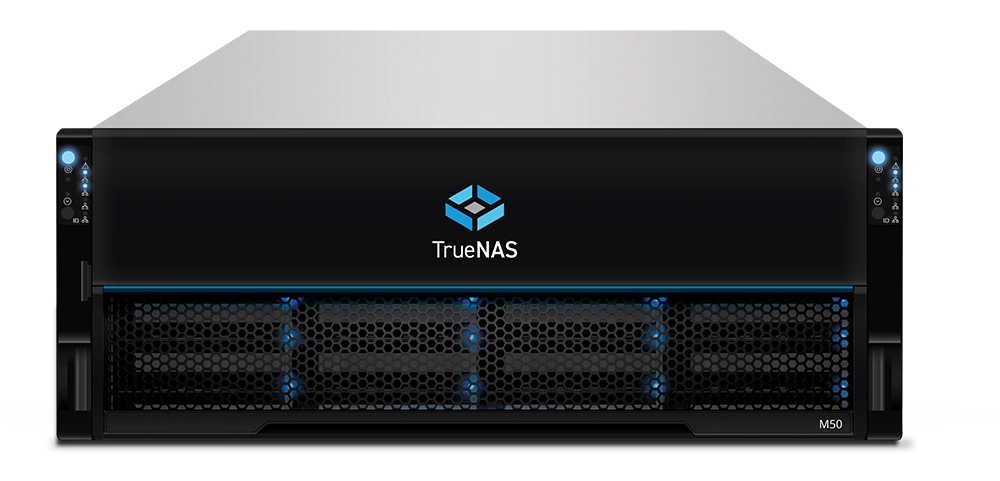

Available in four versatile models—M30, M40, M50, and M60—the M-Series delivers unified file, block, and S3-compliant object storage. These systems support configurations ranging from hybrid to all-flash setups, featuring impressive specifications such as up to 1.5 TB of system memory, TrueCache NVMe cache, and scalability reaching up to 30 PB of capacity. With networking capabilities that include multiple high-speed connections (up to 4x 100 GbE), the M-Series is adept at handling intensive IT workloads, from virtualization and media production to high-speed file sharing and backup operations.

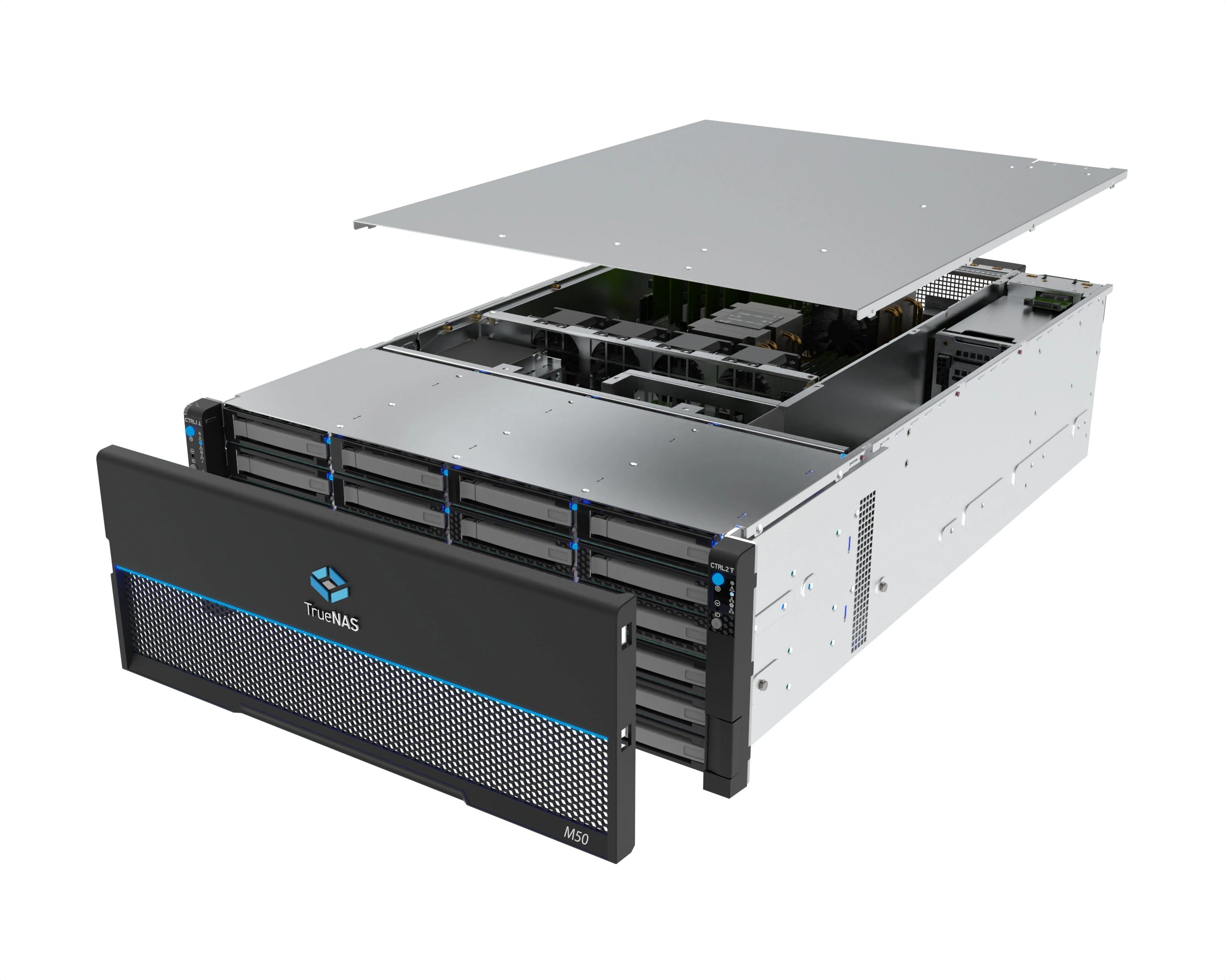

Built to conserve power, space, and cooling, the M-Series employs a modular hardware architecture that supports diverse applications through its hybrid flash and disk storage pools. High Availability (HA) configurations ensure continuous storage services, while Intelligent Storage Optimization achieves data reduction ratios exceeding 2.5x, maximizing storage efficiency. Coupled with simplified management via a robust web-based interface and comprehensive enterprise support, the TrueNAS M-Series offers a seamless blend of performance, scalability, and data integrity, catering to the needs of organizations that operate around the clock.
Specifications:
| Max Capacity |
5.5 PB |
| Max Throughput |
6 GB/s |
| Max Drives Supported |
228 |
| Max Expansion Shelves |
2 |
| Appliance Height |
4U – 12U |
| High Availability |
Yes |
| Certifications |
Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated |
| Hybrid or All-Flash Storage |
Optional |
| Dual Controller (HA) |
Optional |
| Controller |
10 Cores (20 Threads) |
| RAM (Max) |
192 GB |
| Read Cache (Max) |
2.4 TB SAS or 3.2 TB NVMe |
| Write Cache |
16 GB TrueCache® NVDIMM |
| Networking |
2x 10/25/40/100GbE (optical)2x 10GBase-T (standard) |
| Fibre Channel |
4x 16 Gb |
| Max Storage |
3 PB |
| Max Expansion Shelves |
2 |
| Maximum Power Draw (Single) |
825 Watts |
| Maximum Power Draw (Dual HA) |
950 Watts |
| Heat Output |
2815/3241 BTU/h |
| Operating Temperature |
0deg C to 35deg C |
| Non Operating Temperature |
-10deg C to 70deg C |
| Humidity |
5% to 95% Non considering |
| Empty Weight |
34Kg |
| Fully Loaded Weight |
52Kg |
