When you install a car audio system, the biggest frustration is weak sound and distortion at high volumes. That problem makes long drives feel dull and stops you from enjoying your favorite music. The JBL CLUB A754 High performance Class H 4Ch Bridgeable Amplifier fixes this by delivering clean, powerful power to every speaker. It gives you the volume and clarity you expect without stressing the wiring or the battery.

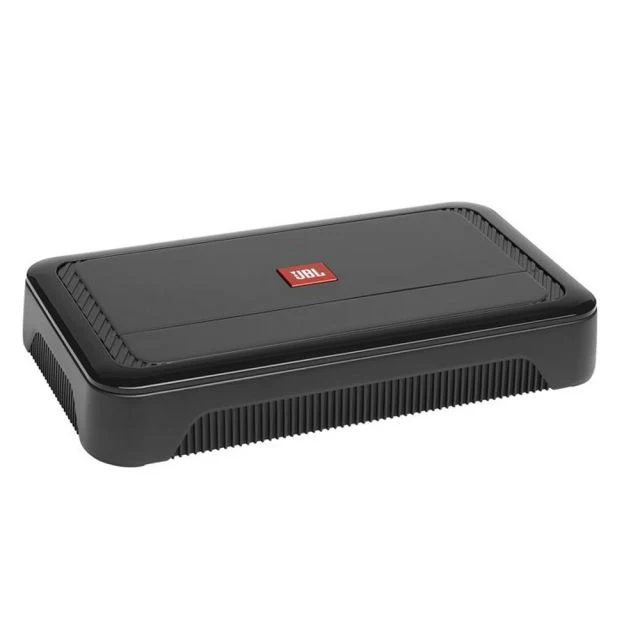

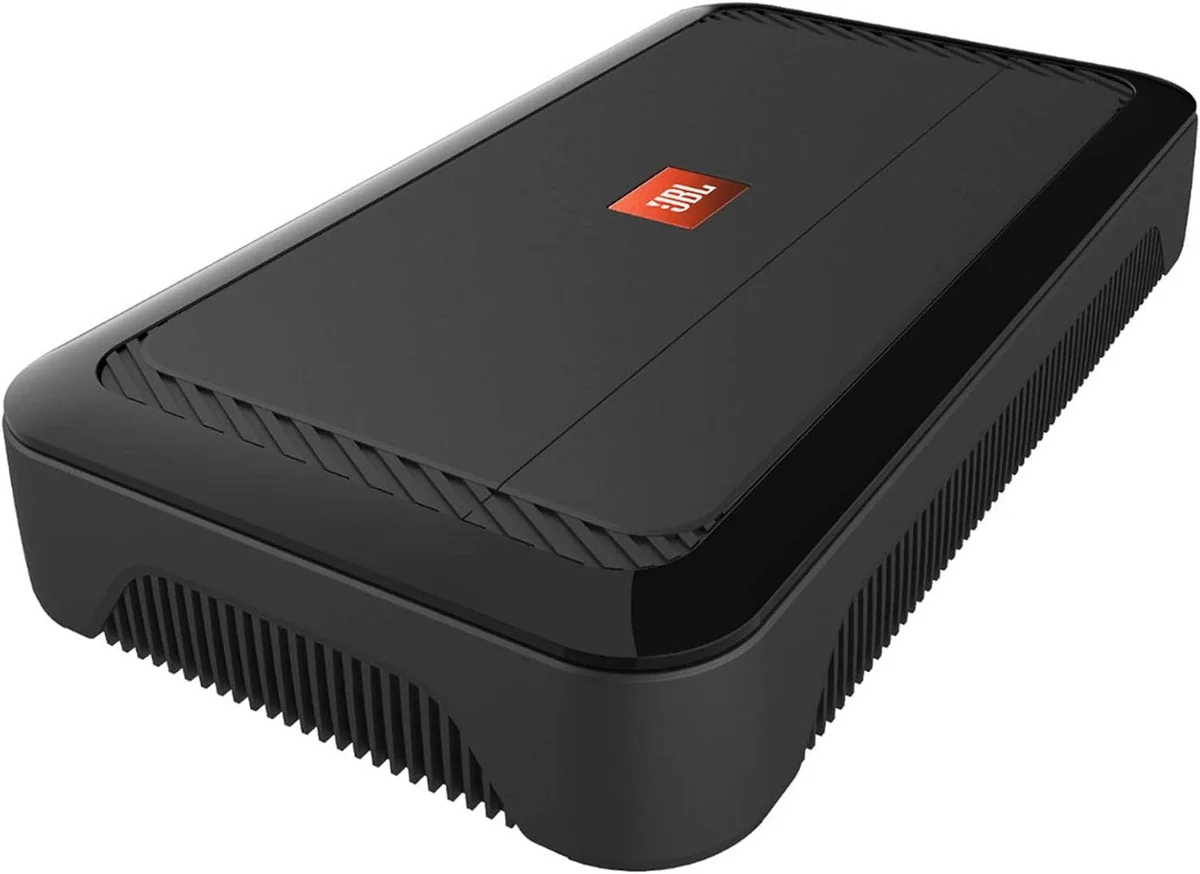

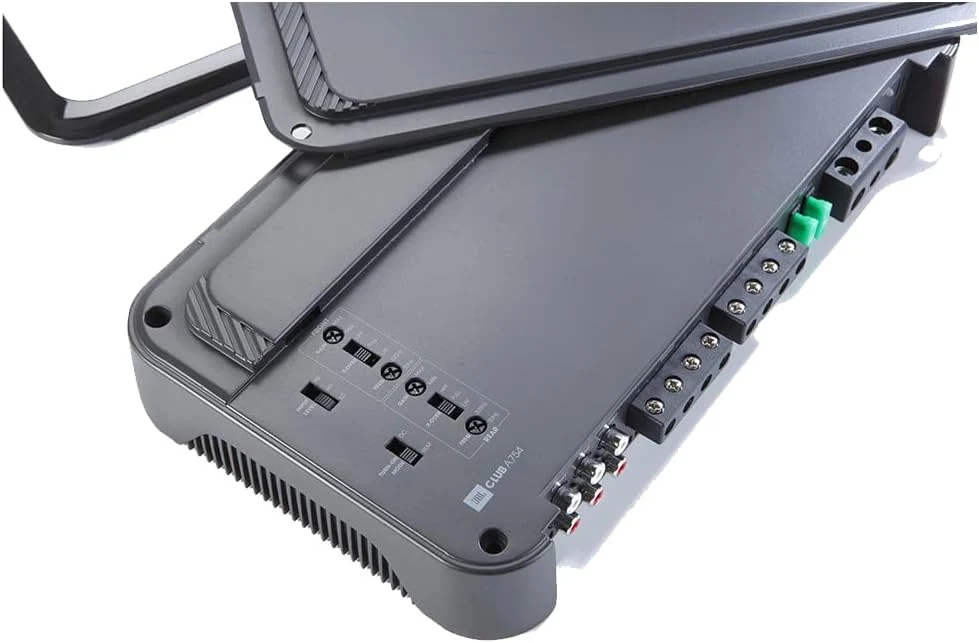

JBL CLUB A754 High performance Class H 4Ch Bridgeable Amplifier with JBL
Imagine a car amp that can fill the cabin with rich bass and crystal-clear highs, even when you crank the music. The JBL CLUB A754 is a four-channel Class H amplifier designed for car audio enthusiasts who want real power without the hassle of multiple units. If you have thin sound or speakers that struggle to keep up, this amp bridges the gap and lets you hear every detail. It works with any JBL speaker line and gives you the control you need for a perfect soundstage.
Key Features
- Four-channel Class H architecture.
- 75 W RMS per channel at 4 .
- 100 W RMS per channel at 2 .
- 200 W RMS bridged at 4 , stable in bridge mode.
- 32-320 Hz variable high- and low-pass filters, 12 dB/octave.
- Preamp and speaker-level inputs for flexible source connections.
- Built-in preamp outputs for system expansion.
- 30 A dual fuse rating for reliable protection.
- Recommended 8-gauge power and ground leads for optimal performance.
- Compact dimensions: 320 mm 51.3 mm 180 mm (12-5/8 2-1/16 7-1/8).
Specifications
| Amplifier Type |
4 channel car amplifier |
| RMS Power Output @ 4 ohms |
75 watts RMS x 4 at 4 ohms |
| RMS Power Output @ 2 ohms |
100 watts RMS x 4 at 2 ohms |
| RMS Bridged Power @ 4 ohms |
200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode) |
| Variable high- and low-pass filters |
32–320Hz, 12dB/octave on front and rear channels |
| Inputs |
Preamp and speaker-level inputs |
| Preamp outputs |
Yes |
| Fuse rating |
30A x 2 |
| Recommended power and ground leads |
8-gauge power and ground leads recommended – wiring and hardware not included with amplifier |
| Dimensions (W x H x D) |
320mm x 51.3mm x 180mm |
| Dimensions (W x H x D) |
12-5/8" x 2-1/16" x 7-1/8" |
