In factories and remote sites you often need a small computer that never stops, even when dust, heat or vibration are present. If the device crashes, production lines halt and data is lost, which costs time and money. The Jetway BFNZASL2 Intel Atom x7835RE SoC processor, 32GB Embedded Industrial PC gives you a rugged, always-on platform that runs Windows 11 or Linux and keeps your operations running smoothly.

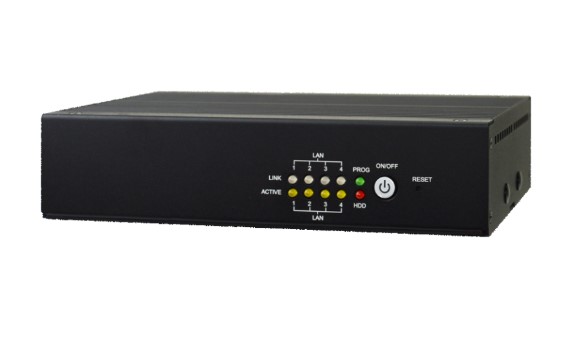

Jetway BFNZASL2 Intel Atom x7835RE SoC processor, 32GB Embedded Industrial PC with Jetway
A compact, fan-less board that packs an Intel Atom x7835RE processor, DDR5 memory and four 2.5 GbE ports. It is built for edge devices that need fast data handling, secure boot and long-term reliability. If you are tired of slow, fragile boxes that overheat, this Jetway solution delivers the power and stability you need without a large footprint.
Key Features
- Intel Atom x7835RE SoC, 12 W TDP.
- Up to 32 GB DDR5 4800 MT/s, single-channel SO-DIMM.
- Four Intel I226-V 2.5 GbE RJ45 ports.
- 1 HDMI 2.0, 4K @ 60 Hz output.
- AMI Flash ROM BIOS with Wake-on-LAN support.
- Integrated Intel PTT fTPM and optional dTPM.
- Multiple M.2 slots: Wi-Fi/BT, 4G/5G, NVMe storage.
- CE/FCC Class A and LVD certifications.
Specifications
| System |
|
| MB Form Factor |
Others |
| CPU |
Onboard Intel Atom® x7835RE Processor (Formerly Amston Lake, TDP 12W) |
| Chipset |
Intel® SoC |
| Memory |
1 × DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB |
| BIOS |
AMI Flash ROM |
| Wake on LAN |
Yes |
| Watchdog Timer |
255 Levels |
| Security |
Intel® PTT (Integrated fTPM) Default & TPM (dTPM) |
| RTC Battery |
Lithium Battery |
| OS Support |
Windows® 11 (64-bit), Linux, pfSense, OpenWrt |
| Power |
|
| Power Requirement |
DC-in 12V |
| Power Adapter |
60W Adapter, AC100~240V, DC12V/5.0A |
| Power On Mode |
AT / ATX (Default) Mode |
| Graphics |
|
| GPU |
Intel® UHD Graphics |
| HDMI |
1 × HDMI® 2.0 (Max Resolution: 3840 × 2160 @ 60Hz) |
| Networking |
|
| Ethernet |
4 × RJ45, Intel® I226-V 2.5GbE |

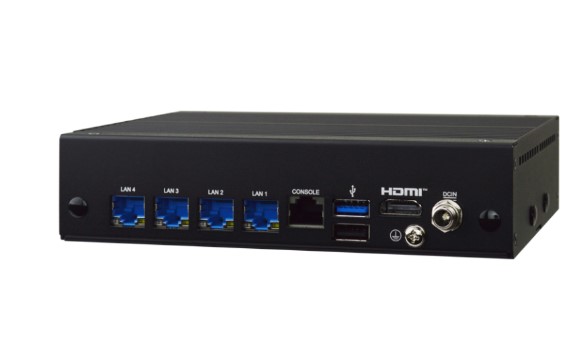

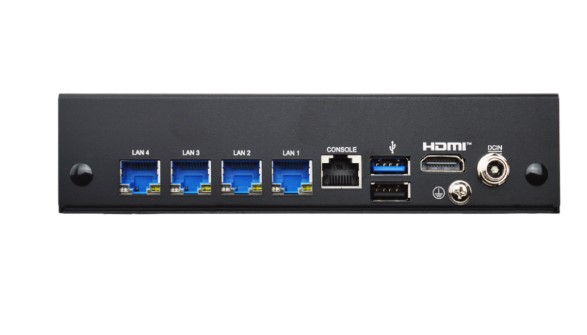

| Rear I/O |
|
| HDMI |
1 × HDMI® |
| USB |
1 × USB 2.0, 1 × USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) |
| Ethernet |
4 × RJ45 for 2.5GbE LAN |
| Console |
1 × RJ45 for Console |
| Grounding |
1 × Grounding Screw |

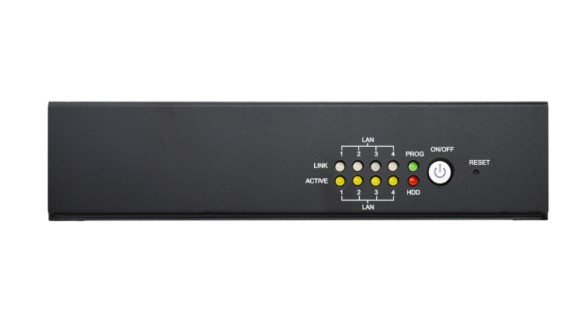

| Front I/O |
|
| Buttons |
1 × Power Button, 1 × Reset Button |
| LEDs |
1 × HDD LED, 8 × LAN Speed LED, 8 × LAN Speed LED, 1 × Programmable LED |
| Storage |
|
| eMMC |
eMMC 64GB (By Request) |
| Expansion |
|
| M.2 Slots |
1 × E-Key 2230 (USB 2.0/PCIe x1) for Wi-Fi/Bluetooth Module, 1 × B-Key 3042/3052 (USB 3.2) for 4G/5G/LTE,
1 × M-Key 2280 (SATA III/PCIe Gen 3 ×1) supporting NVMe
|
| SIM Slot |
1 × Nano SIM Card Slot |
| Other Features |
|
| Other |
4 × Wi-Fi Antenna Holes, 1 × Wi-Fi LED Header, 1 × 4G/5G/LTE LED Header |
| Mechanical |
|
| Mounting |
Desktop, Wallmount |
| Dimensions (W × D × H) |
170.0 × 106.0 × 40.0 mm (6.7 × 4.2 × 1.57 in) |
| Construction |
Aluminum Heatsink + Metal Chassis |
| Net Weight |
1.0 kg (2.2 lb) |
| Gross Weight |
1.2 kg (2.6 lb) |
| Environmental |
|
| Shock |
15G, 11ms duration |
| Vibration |
1 Grms / 5 ~ 500Hz / Operation |
| Operating Temperature |
-15°C ~ 55°C (5°F ~ 131°F) |
| Storage Temperature |
-20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity |
10 ~ 90% Relative Humidity, Non-condensing |
| Storage Humidity |
0 ~ 95% Relative Humidity, Non-condensing |
| Certifications |
|
| Certifications |
CE/FCC Class A, LVD |
