Name: Jetway HBJC501F697 Intel® LGA1151 2 LAN 6 COM Fanless Industrial PC
SKU: MNHO-090
Price: 359.99 USD
Availability: InStock

Jetway HBJC501F697 Intel® LGA1151 2 LAN 6 COM Fanless Industrial PC

In Stock

UK Free Shipping

$430.56 $359.99 exc. VAT save 16.39%

Description
Documents
Reviews

Jetway HBJC501F697 Intel® LGA1151 2 LAN 6 COM Fanless Industrial PC

The Jetway HBJC501F697 is a high-performance fanless industrial PC designed for demanding industrial and embedded applications. Powered by Intel® LGA1151 socket processors, it supports 6th and 7th Generation Intel® Pentium® and Core™ i3, i5, and i7 CPUs, delivering reliable computing performance while maintaining energy efficiency.

This industrial system supports dual DDR4 SODIMM memory with a maximum capacity of 32GB, ensuring smooth multitasking and stable operation for data-intensive workloads. For networking, it features dual Gigabit Ethernet (GbE) ports, providing fast, secure, and dependable connectivity for industrial automation and network-based applications.

The HBJC501F697 offers triple display support, including 1 × HDMI and 2 × DisplayPort outputs, with 4K resolution capability, making it ideal for control rooms, digital signage, and monitoring systems. Its rich I/O interface includes 4 × USB 3.0, 2 × USB 2.0, and 6 × COM ports, allowing seamless integration with legacy and modern industrial devices.

Features

Supports Dual DDR4 SODIMM Up to 32GB

Dual GbE Ethernet Ports provide high-speed and reliable networking

Triple Display Support: 1 x HDMI, 2 x DP, with 4K resolution capability

Comprehensive I/O: 4 x USB 3.0, 2 x USB 2.0, 6 x COM Ports

Specification

Category	Specification
System
Motherboard Form Factor	Mini-ITX
CPU	Support Intel® LGA1151 6th/7th Gen Socket Processor
Chipset	Intel® Q170
Memory	2 × DDR4 2133 MHz SO-DIMM, Dual Channel
Max Memory	Up to 32 GB
BIOS	AMI Flash ROM
Wake on LAN	Yes
Watchdog Timer	255 Levels
RTC Battery	Lithium Battery
OS Support	Windows® 10 (64-bit)
	Windows® 8 / 8.1 (64-bit)
	Windows® 7 (64-bit / 32-bit)
	Linux
Power
Power Requirement	DC-in 9 ~ 24 V
Power Adapter	19 V / 6.3 A, 120 W
Display
DisplayPort	2 × DP (Max Resolution: 4096 × 2304 @ 60 Hz)
HDMI	1 × HDMI (Max Resolution: 4096 × 2160 @ 24 Hz)
LAN
Ethernet	1 × RJ45 (Intel® i211-AT GbE)
	1 × RJ45 (Intel® I219-LM GbE)

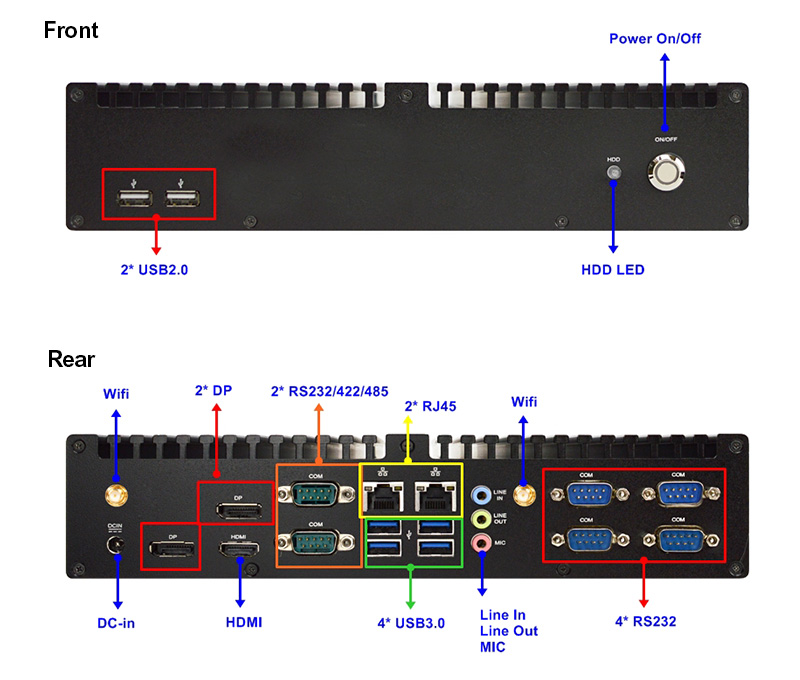

System I/O
Rear Panel I/O	4 × USB 3.0
	1 × HDMI
	2 × DisplayPort
	2 × RJ45
	1 × Audio (Line-in / Line-out / MIC)
	2 × RS-232/422/485
	4 × RS-232
	2 × Wi-Fi Antenna Holes
	1 × DC Jack
Front Panel I/O	1 × Power Button
	1 × HDD LED
	2 × USB 2.0
Storage
SATA	1 × 2.5" SATA 6 Gb/s internal drive bay
	Supports 2.5" HDD (Height ≤ 10 mm)
Expansion
Mini PCI-E	1 × Full-size Mini PCI-E
Environment
Operating Temperature	−20 °C ~ 50 °C (−4 °F ~ 122 °F)
Dimensions	406 x 148 x 359 mm
