When a driver looks away from the road, accidents can happen in seconds. That risk hurts families, businesses, and insurance costs. You need a way to see if the driver stays focused, especially on long trips or busy city routes. The JimiIoT CD02 camera watches the drivers face, records clear images, and alerts you when attention drops, giving you a simple, reliable safety net.

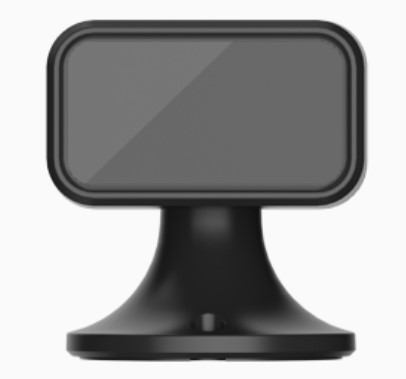

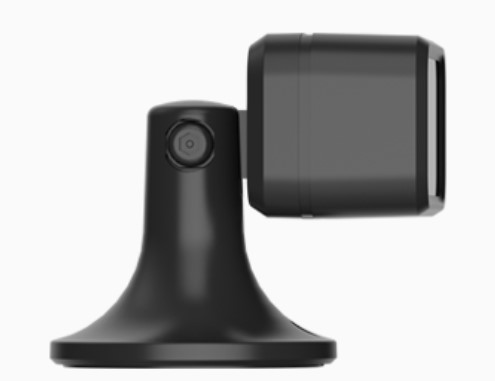

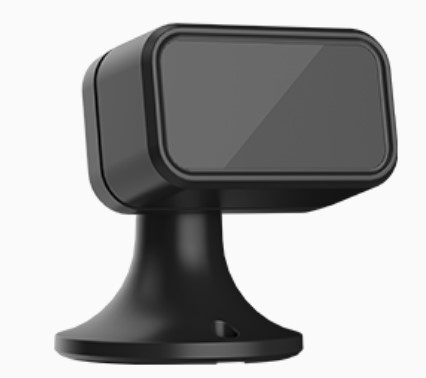

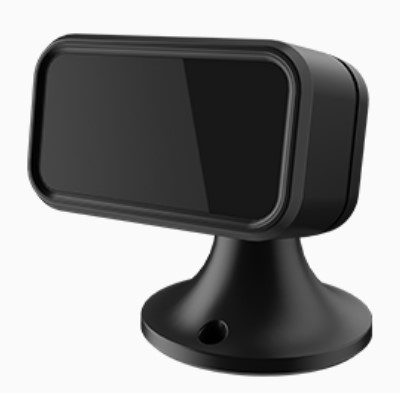

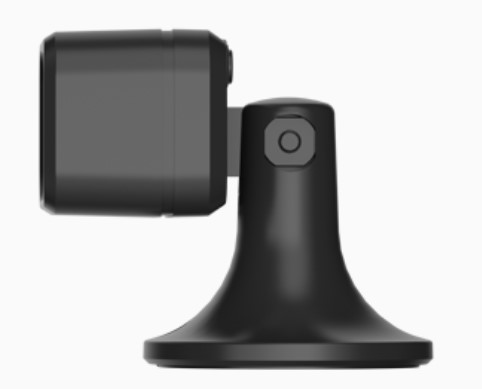

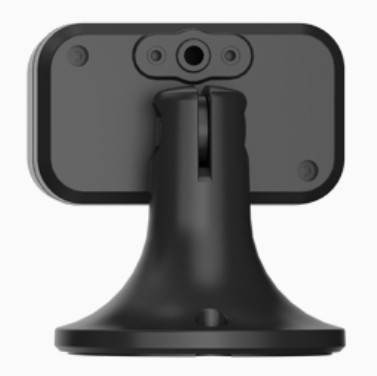

JimiIoT CD02, 1280 x 720 pixels, Monochrome Mini Infrared DMS Camera with JimiIoT
Imagine a tiny eye on your dashboard that never blinks. The JimiIoT CD02 is a monochrome mini infrared camera that captures 720p images even in total darkness. It is built for driver monitoring systems, so you can detect drowsiness or distraction the moment it starts. If you run a fleet or just want extra peace of mind on your daily commute, this camera gives you the data you need without distracting the driver.
Key Features
- Resolution: 1280 x 720 pixels for sharp facial detail.
- Monochrome sensor reduces data load while keeping image clarity.
- Field of view: 56 horizontal, 31 vertical, 65 diagonal.
- Infrared LEDs (IR-940 2) provide true night vision.
- Operating voltage: DC 3.6-5.5 V fits standard vehicle power.
- Dimensions: 32 x 54 x 33 mm - fits discreetly on any dash.
- Cable length: 2.5 m gives flexibility for routing.
- Recommended install position: driver-side dashboard for optimal view.
- Fixation options: screws or double-sided adhesive tape for secure mounting.
- Compatible with JC450 series DMS platforms for seamless integration.
Specifications:
| Product |
|
| Scenario |
Monitor driver attentiveness |
| Compatibility |
JC450 series |
| Camera Specifications |
|
| FoV |
56° (H), 31° (V), 65° (D) |
| Resolution |
1280 × 720 |
| Color |
Monochrome |
| Night Vision |
IR-940 × 2 |
| Electrical Specifications |
|
| Operating Voltage |
DC 3.6–5.5V |
| Mechanical Specifications |
|
| Dimensions |
32 × 54 × 33 mm |
| Cable Length |
2.5 m |
| Installation |
|
| Recommended Install Position |
Dashboard at driver side |
| Fixation |
Fix with screws or double-sided adhesive tape |
