Imagine you are driving and an accident happens. You need clear proof of what really occurred. The JimiIoT JC181 dashcam records both the road ahead and the cabin at full HD, and it can send the video to the cloud instantly with 4G LTE. This device protects you from false claims and gives you peace of mind.

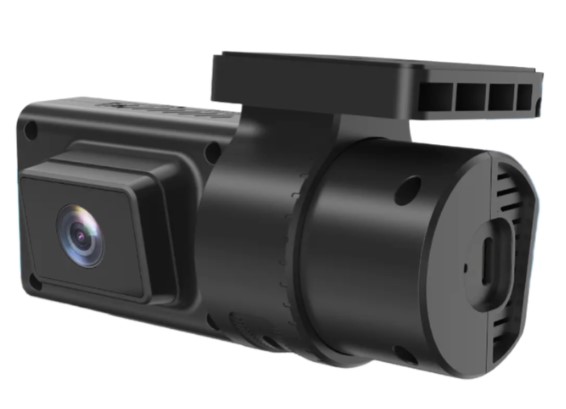

JimiIoT JC181, 4G LTE Cat 1, 1920 x 1080 Pixels Dual-Channel Dashcam
Many drivers worry that a blurry video or a missing file will make insurance disputes harder. Without reliable footage, you may lose a claim or pay extra costs. The JC181 solves this by capturing crystal-clear 1080p video from the front and a wide-angle view from the inside. Its built-in 4G LTE connection uploads the file right away, so you never lose evidence even if the dashcam is damaged.
Key Features
- 4G LTE Cat 1 and 2G GSM connectivity.
- GPS and AGPS positioning for accurate location data.
- Front camera 1920 x 1080 @ 30 FPS, F2.2 lens.
- Rear camera 640 x 360 @ 10 FPS, 100 view.
- Supports TF card up to 128 GB for local storage.
- Type-C USB for power and firmware updates.
- 2.4 GHz Wi-Fi with Direct mode for quick file transfer.
- LED indicators for power, cellular, and GPS status.
- 3-axis accelerometer detects collisions automatically.
Specifications
| Cellular |
|
| Technology |
4G LTE Cat 1, 2G (GSM) |
| Frequency |
|
| JC181-LA: |
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
GSM: B2/B3/B5/B8 |
| JC181-EU: |
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8 |
| GNSS |
|
| Positioning system |
GPS, AGPS |
| Camera |
|
| Front camera (main) |
1920x1080/30FPS/F2.2/Full color/110° (HFoV) |
| Sub camera |
640x360/10FPS/F2.8/Color in daytime & mono in dim light/100° (HFoV) |
| Video format |
.mp4 |
| Power |
|
| Input voltage |
DC 9–30V |
| Operating environment |
|
| Operating temperature |
–20°C to +70°C |
| Storage temperature |
–30°C to +85°C |
| Interface |
|
| LED indication |
Red (Power), Blue (Cellular), Green (GNSS) |
| SIM |
Nano-SIM |
| External memory |
TF card (up to 128GB) |
| USB |
Type-C |
| WiFi |
2.4GHz, Support WiFi Direct |
| Bluetooth |
N/A |
| Microphone |
Support |
| Speaker |
Support |
| Digital I/Os |
1*Relay |
| Analog I/Os |
N/A |
| Serial ports |
N/A |
| Sensor |
3-Axis accelerometer |
| Feature |
|
| ADAS |
N/A |
| DMS |
N/A |
| Configuration support |
GPRS, SMS, Memory card, APP |
| Firmware update |
USB Cable, Memory card, OTA |
| Certification |
CE, FCC |
| Physical specification |
|
| Dimensions |
118.0 × 46.5 × 43.5mm |
| Weight |
143g |
| Standard Packing |
|
| JC181 unit |
1 |
| Power cable |
1 |
| Mount base |
1 |
| Screws |
3 |
| Screwdriver |
1 |
