Tired of missing important moments on the road? The JimiIoT JC450, 3-axis Sensor, 4G AI Dashboard Camera captures every angle, every incident, and sends the video straight to the cloud. It is built for drivers who need reliable evidence, fleet managers who want real-time monitoring, and anyone who wants peace of mind while driving. With built-in AI and 4G connectivity, you never have to worry about losing footage again.

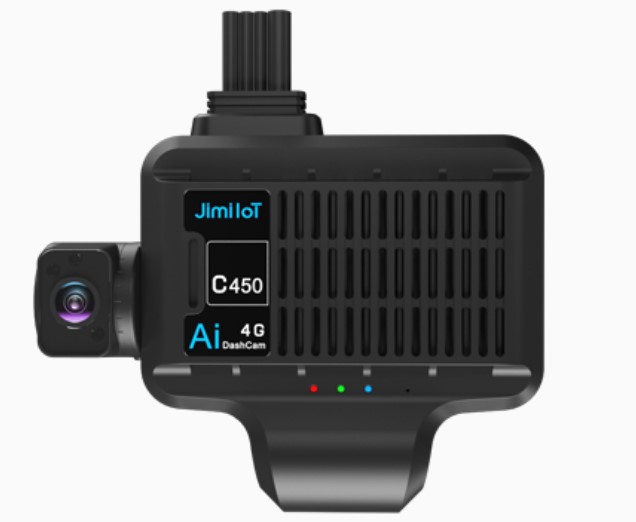

JimiIoT JC450, 3-axis Sensor, 4G AI Dashboard Camera
Many drivers face unclear video, delayed uploads, and no sensor data when an accident happens. Without clear proof, insurance claims become a hassle and safety reviews are incomplete. This matters because every second of video can decide who is at fault and can help improve driver behavior. The JC450 solves the problem by combining a high-definition front camera, a 3-axis motion sensor, and 4G LTE that streams video instantly to an AI dashboard. The result is fast, reliable evidence that is easy to access from any device.
Key Features
- 4G LTE Cat.4 network for fast streaming.
- 1920 x 1080 full-color front camera at 25 FPS, 80 HFoV.
- 3-axis motion sensor for tilt and impact detection.
- GPS positioning for accurate location tagging.
- Supports up to 256 GB TF card for local backup.
- Multiple interfaces: Type-C USB, RS232, TTL, relay, digital inputs, CVBS-OUT.
- BLE 4.0 Bluetooth for easy pairing with mobile apps.
- Wi-Fi 2.4 GHz with AP, STA, and Direct modes.
- LED indicators for power, cellular, and GNSS status.
Specifications
| Network |
| Standard |
4G LTE Cat.4 |
| WiFi |
2.4GHz, Support AP Mode/STA Mode/WiFi Direct |
| Bluetooth |
BLE 4.0 |
| Band |
Eurasian Version
FDD-LTE: B1/B3/B7/B8/B20/B28A
TDD-LTE: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8 |
Northern American Version
FDD-LTE: B2/B4/B5/B12/B13/B14/B66
WCDMA: B2/B4/B5 |
Latin American Version
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28
TDD-LTE: B40
WCDMA: B1/B2/B4/B5/B8
GSM: B2/B3/B5/B8 |
| Camera |
| Front Camera (Main) |
1920×1080/25FPS/F2.0/Full color/80° (HFoV) |
| Video Format |
.ts |
| Configuration |
| GNSS |
GPS |
| Sensor |
3-axis |
| Microphone |
Support |
| Speaker |
Support |
| Interface |
Type-C USB*1, SOS*1, RS232*1, TTL*1, Relay*1, Digital Input*2, CVBS-OUT*1 |
| Memory Support |
TF Card (Up to 256GB*2) |
| SIM Card Type |
Nano |
| LED Indication |
Red (Power), Blue (Cellular), Green (GNSS) |
| Others |
| Power Supply |
Power cable: B+/ACC/GND |
| Operating Voltage |
DC 9–30V |
| Operating Temperature |
–20°C to +70°C |
| Storage Temperature |
–30°C to +85°C |
| Device Weight |
374g |
| Device Dimension |
114 x113 x 33mm |
| Certifications |
CE/FCC/PTCRB/RoHS |
