Modern data centers and carrier networks need to move huge amounts of data without delay. When a router cannot keep up, traffic backs up, customers notice slow apps, and revenue falls. You also face the risk of hardware that cannot grow with faster links or new standards. The Juniper ACX7100-32C-AC-AO 32 QSFP28/ 4 QSFP56-DD Multirate ports, AC PSU Router gives you a single, compact platform that handles 100 GbE, 400 GbE and everything in between, so your network stays fast, secure and ready for tomorrow.

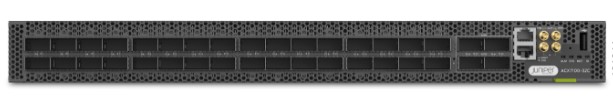

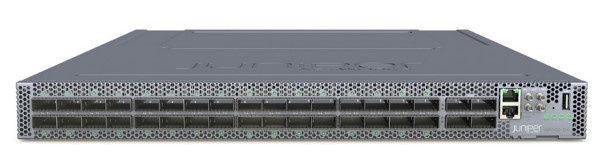

Juniper ACX7100-32C-AC-AO 32 QSFP28/ 4 QSFP56-DD Multirate ports, AC PSU Router with Juniper
If you need a powerful metro-edge router that fits in a 1U rack, this device is the answer. It delivers up to 4.8 Tbps of ASIC throughput and supports both 100 GbE QSFP28 and 400 GbE QSFP56-DD optics. Operators who struggle with limited port density or outdated speeds will find a clear upgrade path, thanks to multirate ports, MACsec security and hot-swappable power and fans.
Key Features
- 32 x QSFP28 ports supporting 100 GbE or 40 GbE.
- 4 x QSFP56-DD ports with a default 400 GbE speed.
- Fixed 1U chassis for dense rack deployment.
- AC power supply with 500 W typical, 960 W maximum draw.
- Front-to-back airflow and 5+1 redundant fan modules.
- Hot-removable power and fan modules for zero-downtime service.
- Junos OS Evolved for automation and secure management.
- Supports QSFP56-DD, QSFP28-DD, QSFP28, QSFP+, AOC and DAC optics.
- MACsec on all high-speed ports for data-in-motion encryption.
- Multiple synchronization interfaces including RJ-45 TOD and PPS.
- Console, management and USB ports for local access and monitoring.
Specifications
| Product Family |
ACX7100 Cloud Metro Routers |
| Product Type |
Cloud Metro Router |
| Chassis Type |
Fixed |
| Form Factor |
1U |
| Network Ports |
32 × QSFP28 + 4 × QSFP56-DD |
| QSFP28 Port Count |
32 |
| QSFP28 Port Speed |
100GbE / 40GbE |
| QSFP28 Port Channelization |
Supported |
| QSFP28 MACsec |
Supported |
| QSFP56-DD Port Count |
4 |
| QSFP56-DD Default Speed |
400GbE |
| QSFP56-DD Port Channelization |
Supported |
| QSFP56-DD MACsec |
Supported |
| QSFP56-DD Supported Transceivers |
QSFP56-DD, QSFP28-DD, QSFP28, QSFP+, AOC, DAC |
| Maximum 400GbE Ports |
4 |
| Maximum 100GbE Ports |
48 |
| Maximum 50GbE Ports |
96 |
| Maximum 40GbE Ports |
36 |
| Maximum 25GbE Ports |
96 |
| Maximum 10GbE Ports |
96 |
| ASIC Throughput |
4.8 Tbps |
| Console Port |
1 × RJ-45 |
| Management Port |
1 × RJ-45 |
| USB Port |
1 × USB Type-A |
| 10 MHz Port |
Supported |
| PPS Port |
Supported |
| Synchronization Interfaces |
1 × RJ-45 + Time of Day (TOD); 1M/10M PPS input and output |
| Operating System |
Junos OS Evolved |
| Power Supply |
AC |
| PSU Airflow |
Front-to-back |
| Airflow Direction |
Front-to-back (AFO) |
| Fan Modules |
6 |
| Fan Redundancy |
5+1 |
| Fan Module |
JNP7100-FAN1RU-AO |
| Fan Modules Hot-Removable |
Yes |
| PSU Hot-Removable |
Yes |
| Dimensions (W × H × D) |
17.36 × 1.75 × 23.42 in. (44.09 × 4.45 × 59.49 cm) |
| Chassis Weight |
22.24 lb / 10.09 kg |
| Fully Loaded Weight |
28.58 lb / 12.96 kg |
| Power (AC) |
115/240 VAC |
Typical power draw
(without optics)* |
500 W |
Maximum power draw
(without Optics) |
960 W |
| Operating Temperature |
0°C to 40°C |
| Short-Term Operating Temperature |
0°C to 55°C |
| Operating Humidity |
5% to 90% noncondensing |
| Product Number |
ACX7100-32C-AC-AO |
| Vendor Description |
ACX7100 chassis with 32 QSFP28/4 QSFP56-DD multi-rate ports, AC PSU, airflow out (AFO) |
