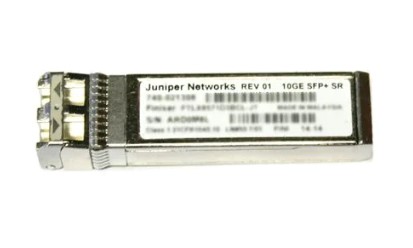

Juniper EX-SFP-10GE-SR 10GbE 850nm SFP+ 300m OM3 Optical Transceiver
The Juniper EX-SFP-10GE-SR is a 10 GbE SFP+ optical transceiver designed for high-speed Ethernet connectivity over multimode fiber (MMF). It supports a distance of up to 300 m and is designed for compatible Juniper networking equipment.
This 10GbE SFP+ transceiver uses a 50/125 µm core size/cladding and OM3 fiber grade. It features an effective modal bandwidth of 2000 MHz x km and operates at a transmitter wavelength of 850 nm.
The module supports Digital Diagnostic Monitoring for transceiver temperature, transceiver supply voltage, TX bias current, TX output power, and RX received optical power. Its signaling rate is 10 Gbps per lane.
The Juniper EX-SFP-10GE-SR has a maximum power consumption of 1 W and operates from 0° C to 70° C. It features dual transmitter fibers for optical connectivity.
The transceiver provides specified transmitter and receiver optical power levels for compatible 10GbE optical links. Its compact SFP+ form factor makes it suitable for 300 m OM3 MMF networking applications.
Key Features
-
10 Gbps signaling rate
-
SFP+ optical transceiver
-
MMF cable type
-
300 m distance
-
50/125 µm core size/cladding
-
OM3 fiber grade
-
2000 MHz x km effective modal bandwidth
-
850 nm transmitter wavelength
-
Digital Diagnostic Monitoring
-
1 W maximum power consumption
-
0° C to 70° C operating temperature
-
Dual transmitter fibers
Specifications
| Parameter |
|
| Cable type |
MMF |
| Core size/cladding |
50/125 µm |
| Digital Diagnostic Monitoring |
Transceiver temperature, Transceiver supply voltage, TX bias current, TX output power, RX received optical power |
| Distance |
300 m |
| Effective modal bandwidth |
2000 MHz x km |
| Fiber grade |
OM3 |
| Max Distance(km) |
0.4 |
| Maximum Power consumption (W) |
1 W |
| Operating Temperature (range) |
0° C to 70° C |
| Receiver input power, each lane (maximum) |
–1 dBm |
| Receiver input power, each lane (minimum) |
–9.9 dBm |
| Signaling rate, each lane |
10 Gbps |
| Storage temperature |
–40° C to 85° C |
| Transmitter fibers |
Dual |
| Transmitter output power, each lane (maximum) |
–1 dBm |
| Transmitter output power, each lane (minimum) |
–7.3 dBm |
| Transmitter wavelengths (range) |
850 nm |
