Imagine a data center that never slows down, even when traffic spikes. The Juniper QFX5240-64OD-AO 64-Port 800GbE OSFP Switch AC Air-Out is built for that exact need. It is a high-performance network switch that connects servers, storage and routers at blazing 800 GbE speeds. If you struggle with bottlenecks, limited port density or unreliable uptime, this switch removes those pain points and lets your network run smooth and fast.

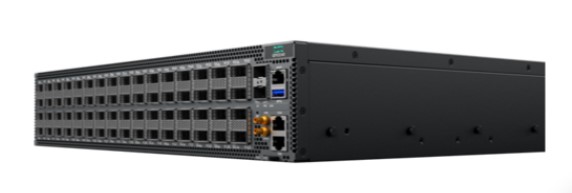

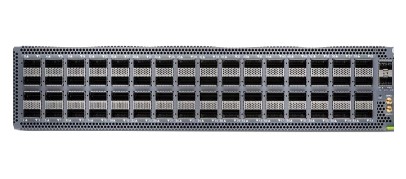

Juniper QFX5240-64OD-AO 64-Port 800GbE OSFP Switch AC Air-Out
Large enterprises and cloud providers often face the problem of scaling bandwidth without adding bulky equipment. When traffic grows, old switches can become a choke point, causing latency and lost revenue. This switch solves the problem by offering 64 OSFP ports that each deliver 800 GbE, plus flexible breakout options for 400 GbE, 200 GbE or 100 GbE. The result is a single, compact chassis that handles massive data flows while keeping power use and space requirements low.
Key Features
- 64 OSFP ports each supporting 800 GbE.
- Breakout options: 64 800 GbE, 128 400 GbE, 256 200 GbE, 256 100 GbE.
- Two hot-removable AC power supplies with 1 + 1 redundancy.
- Four hot-swap fan modules with front-to-back airflow.
- Intel 4-core 2.2 GHz CPU and 32 GB DRAM for smooth operation.
- 960 GB SSD storage for fast boot and logging.
- Junos OS Evolved for easy automation and security.
- Maximum system throughput of 51.2 Tbps unidirectional, 102.4 Tbps bidirectional.
- 21.2 Bpps forwarding rate for ultra-low latency.
- Supports up to 2 million IPv4/IPv6 routes and 136 k MAC addresses.
- Front-to-back airflow (AFO) and 377 CFM fan capacity for reliable cooling.
Specifications
| Product |
QFX5240 Switch |
| Product Model |
QFX5240-64OD-AO |
| Chassis |
Fixed |
| Form Factor |
2 U |
| Chassis Height |
3.46 in / 8.7884 cm |
| Chassis Width |
17.26 in / 43.8404 cm |
| Chassis Depth |
25.51 in / 64.7954 cm |
| Chassis Weight (As Shipped) |
48.5 lb / 22 kg |
| Chassis Model Number |
QFX5240-64OD-CHAS |
| Operating System |
Junos OS Evolved |
| OS Supported |
Junos OS Evolved |
| OSFP Port Count |
64 |
| OSFP Port Speed |
800GbE |
| SFP+ Port Count |
2 |
| SFP+ Port Speed |
10GbE / 1GbE |
| Console Port Count |
1 |
| Console Port Type |
RJ-45 |
| Management Port Count |
1 |
| Management Port Type |
RJ-45 |
| USB Port Count |
1 |
| USB Port Type |
Type A |
| 10 MHz Port |
Y |
| PPS Port |
Y |
| ToD Port |
Y |
| Port Density |
64 ports of OSFP 800GbE |
| Breakout Options |
64 × 800GbE, 128 × 400GbE, 256 × 200GbE, 256 × 100GbE |
| Maximum Port Density with Mixed Speeds |
320 |
| Throughput (Unidirectional) |
51200 Gbps |
| System Throughput |
51.2/102.4 Tbps uni/bidirectional |
| Max Forwarding Rate |
21.2 Bpps |
| IPv4 Unicast Routes |
2,000,000 |
| IPv4 Unicast Host Routes |
880,000 |
| IPv6 Unicast Routes |
2,000,000 |
| IPv6 Unicast Host Routes |
875,000 |
| MAC Addresses Per System |
136,000 |
| Total Packet Buffer |
165 MB |
| QoS Hardware Queues Per Port (Multicast) |
2 |
| QoS Hardware Queues Per Port (Unicast) |
8 |
| Switch Chip |
Broadcom Tomahawk5 |
| CPU |
Intel 4-core 2.2-GHz Ice Lake |
| DRAM |
32 GB |
| Internal Storage Size |
960 (480+480) GB |
| Internal Storage Type |
SSD |
| PSU Count |
2 |
| PSU Redundancy |
1 + 1 |
| AC PSU Model Number |
QFX5240-PWR-AC-AO |
| AC Max Power Consumption |
2400 W |
| AC Average Power Consumption |
576 W |
| AC Input Voltage |
200 VAC through 277 VAC |
| AC Input Line Frequency |
50–60 Hz |
| AC Input Current Rating |
6 A at 200 VAC; 3.8 A at 240 VAC |
| PSU Airflow Direction |
Front-to-back |
| PSU Hot-Removable And Hot-Insertable? |
Y |
| Airflow Direction |
Front-to-back |
| Airflow Volume |
377 CFM |
| AFO/AFI? |
AFO |
| Fan Module Model Number |
QFX5240-2U-FANAO |
| Fan Module Count |
4 |
| Fan Module Hot-Removable And Hot-Insertable? |
Y |
| Operating Temperature |
32° through 104°F / 0° through 40°C |
| Storage Temperature |
-40° through 158°F / -40° through 70°C |
| Operating Altitude |
6000 ft / 1828 m |
| Relative Humidity, Noncondensing (Operating) |
5% through 90% |
| Relative Humidity, Noncondensing (Nonoperating) |
5% through 90% |
| Seismic Tolerance |
Zone 4 |
| Maintenance Clearance |
30 in / 76.2 cm |
| Typical Power Consumption |
220-240 V: 613 W |
| Maximum Power Consumption |
220-240 V: 2198 W |
| Warranty |
Juniper standard one-year warranty |
| Airflow / Product Suffix |
Front-to-back airflow |
| Ordering Information |
64x800GE OSFP800, AC, Front-to-back airflow |
