Name: KEBA KeTop T150 Wireless Mobile Teach Pendant
SKU: PNLP-050
Price: 2669.99 USD
Availability: InStock

KEBA KeTop T150 Wireless Mobile Teach Pendant

UK Free Shipping

Description
Documents
Reviews

User experience at the highest level

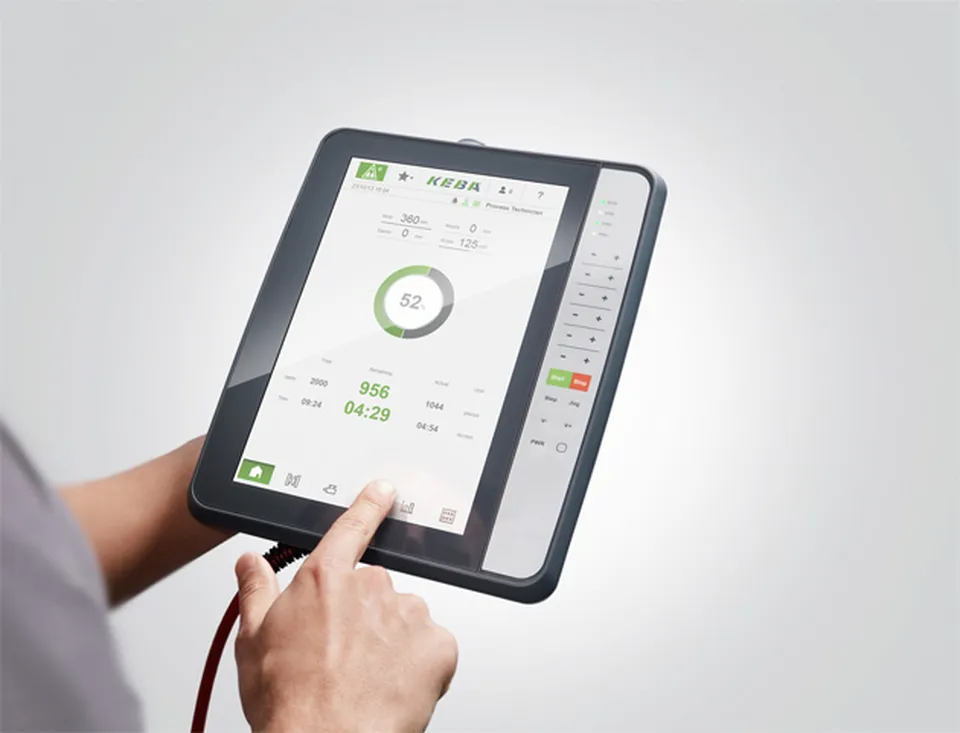

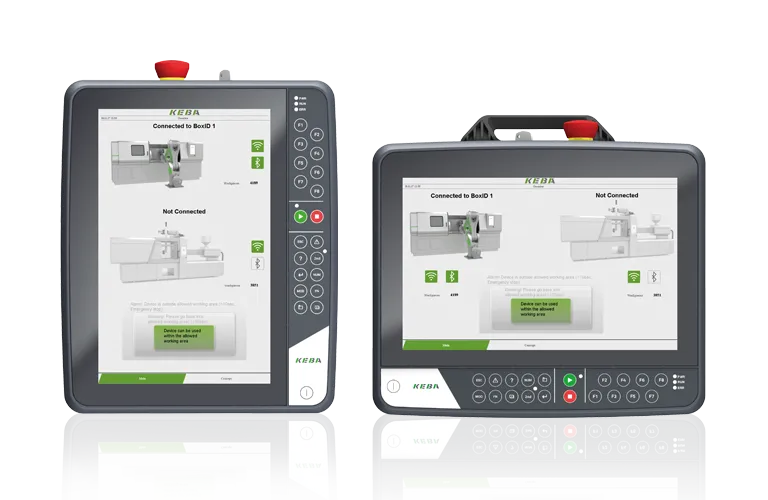

The KeTop T150 in portrait format and the KeTop T155 in landscape format have a capacitive touch screen that can be operated as a real multi-touch and thus score points with intuitive operability, highest ergonomics and best user experience. High-end device operation familiar from everyday use is now also possible in tough industrial environments.

According to the desired requirements, KeTop T15x is available with Linux and Windows IoT Enterprise. Optional features such as energy storage and RFID, among others, allow for additional versatile application scenarios.

Your benefits at a glance

Display size 10 inch
Lightweight with 1.150g
Choice between two operating systems: Linux as well as Windows IoT
Maximum ergonomics
Customizing possible

Ergonomic operation

The design of the KeTop T15x allows narrow edges, which reduced the required housing volume. This resulted in a particularly light-weight device with unchanged robustness. An improved ergonomic position of the enabling switch enables both left- and right-handed users to operate the device for a long time without fatigue and thus without errors.

Reliable investment protection

User interfaces must be fast and fluid. In order to meet future requirements, the KeTop T15x has a modular design. This enables a simple and fast changeover to newer processor technologies. Performance drops when expanding the visualization applications are now a thing of the past.

Open for all applications

Depending on the respective requirements, the KeTop T15x offers a choice between the operating systems Linux and Windows IoT Enterprise. Out-of-the-box remote or browser operation is of course also possible. Based on the operating systems, KEBA offers different software solutions for the project planning of applications, tailored to the respective requirements.

Multitalented individualization

The KeTop T15x has the customizing options that have been proven with other KEBA products. This means that individual devices can be optimally adapted to the respective application and design requirements.

Specifications:

Display
Type	TFT
Size	10.1" (16:10)
Resolution	WXGA 800 × 1,280 pixel (portrait version) / 1,280 × 800 pixel (landscape version)
Touchscreen	Projective capacitive
Backlight	LED
Operating Elements	(internally or externally wired / two elements with marked can be selected)
Membrane Keyboard	Max. 30 buttons, 6 LEDs
Selection Switch*	2 or 4 levels
Rotary Encoding Switch*	16 levels
Key Switch*	2 or 3 positions
Push Button*	No-detent / Detent
Characteristics	KEBA standard
Safety Elements
Enabling Switch	1 piece (optional safety electronics), 3 levels, 2 channels
Emergency-Stop Button	2 channels, B10d = 250,000
Safety Category	With safety electronics: PLe acc. EN 13849-1 or SIL3 acc. EN 61508 can be achieved; without safety electronics: PLe acc. EN 13849-1 or SIL3 acc. EN 61508 can be achieved
Dimensions/Weight
Dimensions (L × W × H)	215 × 284 × 69 mm / 272 × 227 × 69 mm
Weight	Approx. 1,120 g
