Product Description

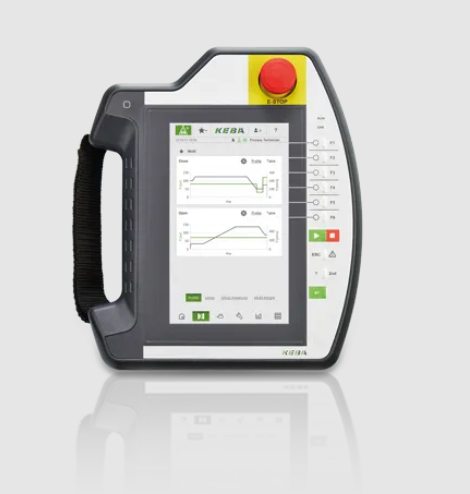

The KeTop T70 is a high-performance mobile HMI designed for demanding visualization and operating applications. With its high-resolution 7″ display, fast x86 processor, and full Windows 10 IoT Enterprise, it ensures smooth operation even for complex tasks. The ergonomically shaped, lightweight housing allows long-term, fatigue-free use.
Optional features, such as a rear side keyboard, a magnetic holder, stylus holder, and USB data backup, enhance usability and versatility. Integrated drivers for Siemens, Beckhoff, Modbus TCP, and OPC UA make the device highly compatible with industrial controllers. The portrait-format display ensures compactness and easy readability on-site. With IP65 protection and rugged construction, the KeTop T70 is ideal for mobile operation in industrial environments.
Key Features
-
7″ WSVGA high-resolution display (600 × 1024 pixels, 16 million colors)
-
Analog resistive touch screen with stylus support
-
Ergonomic, lightweight housing for fatigue-free long-term operation
-

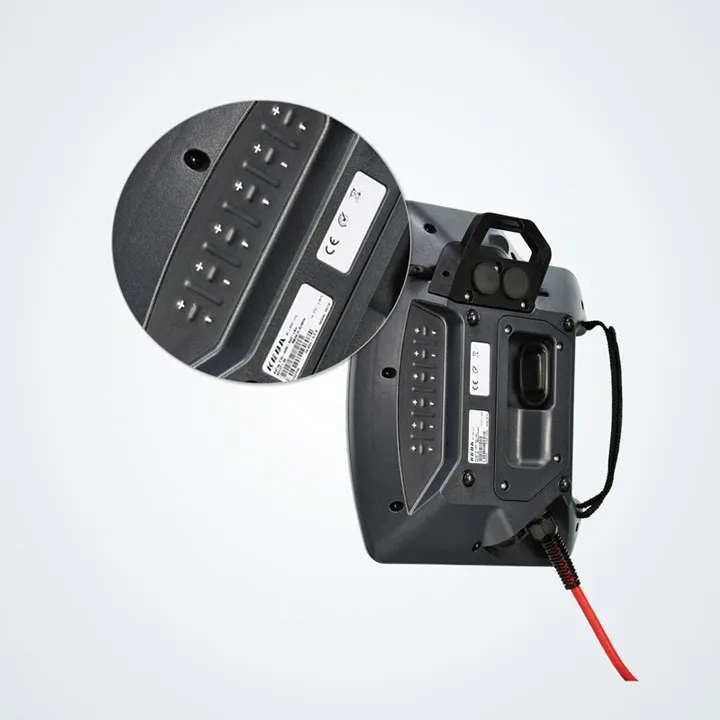

Optional rear-side keyboard for multi-axis programming and faster operation
-
Integrated selection switches, rotary switch, key switch, handwheel, and illuminated push buttons
-
Safety elements: 3-level enabling button, emergency stop (illuminated or unlighted)
-
Full Windows 10 IoT Enterprise operating system
-
Communication interfaces: Ethernet 10/100 Mbit/s
-
Supports industrial drivers: Siemens S7, Beckhoff ADS, Modbus TCP, OPC UA
-
USB 2.0 port for data backup, fully protected under IP65 cover
-
Robust ABS-PC housing, IP65 protection, weight ~950 g
-
Operating temperature: 0 °C to 40 °C, storage: −25 °C to 70 °C
-
Certified UL, CE
Specifications
| Category |
Feature |
Specification |
| Housing |
Dimensions (L×W×H) |
250 × 210 × 50 mm |
| |
Weight |
Approx. 950 g (without cable) |
| |
Color |
RAL 7016 Anthracite grey |
| |
Material |
ABS-PC |
| |
Protection Class |
IP65 |
| Display |
Size |
7″ (153 × 90 mm) |
| |
Resolution |
WSVGA, 600 × 1024 pixels |
| |
Colors |
16 million |
| |
Touch Screen |
Analog resistive (supports stylus) |
| Operating Elements |
Selection Switch |
4 levels |
| |
Rotary Switch |
16 levels |
| |
Key Switch |
Yes |
| |
Illuminated Push Button |
Impulse or click-stop function |
| |
Handwheel |
50 increments |
| |
Membrane Keyboard |
Max. 20 tactile keys (front), 12 tactile keys (rear) |
| Safety Elements |
Enabling Button |
3-level, 2-circuit |
| |
Emergency Stop |
Illuminated and unlighted (compatible with CB310 hot plug box) |
| CPU / Memory |
Processor |
Atom x6211 |
| |
RAM |
4 GB DDR3L |
| |
Storage |
64 GB or 256 GB SSD Flash |
| Communication Interfaces |
Ethernet |
10/100 Mbit/s |
| |
Industrial Protocols |
Siemens S7, Beckhoff ADS, Modbus TCP, OPC UA (DA) |
| Data Backup |
USB |
USB 2.0 port, fully IP65 protected |
| Power Supply |
Voltage |
24 V DC |
| |
Current Consumption |
Max. 530 mA at 24 V DC |
| Ambient Conditions |
Operating Temp |
0 °C to 40 °C |
| |
Storage Temp |
−25 °C to 70 °C |
| |
Humidity |
5% to 95% RH, non-condensing |
| |
Vibration / Shock |
According to EN 61131-2 |
| Certifications |
Standards |
UL, CE |
| Options |
Accessories |
Magnetic holder, stylus holder, optional rear keyboard |
