| General Features |
|
| DIN Size |
1 DIN |
| Detachable Faceplate |
Yes |
| Key Illumination |
Variable LED |
| Rotary Encoder & Control Knob |
Yes |
| Dual Accent Key |
Handsfree & Voice Assistant |
| Back-up Memory |
Tuner presets & menu settings |
| Attenuator with Smooth Volume Return |
Yes |
| Touch Sensor Tone |
Yes |
| Digital Clock (24H) |
Yes |
| Clock display when power-off |
default off |
| All-off Select (20/40/60 minutes) |
Yes |
| Built-in Connector |
Mitsumi, 16 pin |
| ISO connector |
Yes, Mitsumi to ISO cable |
| Bluetooth unit built-in |
Yes |
| USB interface x 1 |
Yes, (Front) |
| Firmware upgreadable |
Yes |
| Display Features |
|
| Display Type |
Liquid Crystal Display (LCD) |
| Display Layout |
2 line text + custom icons |
| Vertical Aligment Liquid Crystal Display |
Yes |
| Display Illumination |
Variable by RGB LED |
| Dimmer Control |
Manual / Set by Timer |
| Brightness control |
0 - 31 steps |
| Demo Mode |
Yes |
| Menu text in selectable language |
English(default) / Spanish / French / German / Russian |
| Cosmetics features |
|
| Dress plate |
Piano Black |
| Preset key finish |
Piano Black |
| Escutcheon finish |
Piano Black |
| Volume & operation knob or wheel |
Transparant Lighting & Chrome Finished Ring |
| Triangle Illumination |
Red LED |
| Front terminals dust cover |
Yes |
| Key illumination |
Variable by RGB LED |
| Illuminated front USB port |
Variable by RGB LED |
| Brightness Control (Key) |
0 - 31 step |
| Dimmer Control (Key) |
Manual / Set by Timer |
| Variable color illumination |
Yes |
| Color Zone Concept |
2 zone colour control |
| Brightness zone concept |
2 zone brightness control |
| Chrome-finished accents |
Volume knod & faceplate |
| Tuner Features |
|
| FM Reception |
Yes |
| FM Stereo / Mono Selector |
Yes |
| AM (MW/LW) Reception |
Yes |
| Up/Down Seek/Scan |
Yes |
| Station Select |
Manual / Preset |
| Tuner Presets (FM/AM) |
24 Presets (18FM / 6AM) |
| Mixed preset memory (FM & AM) |
6 presets |
| Automatic Memory Entry (AME) |
Yes |
| Tuner Preset Back-up Memory |
Yes |
| Radio Data System |
Yes |
| Radio Text Plus |
Yes |
| Traffic Information |
Yes |
| Local search |
Yes |
| AF Regional |
Selectable: AF/AF Reg/OFF |
| Auto TP search |
Yes |
| Enhanced Other Networks Function (EON) |
Yes |
| Program Type Function (PTY) |
Yes |
| CE DAB tuner features |
|
| DAB+ tuner built-in |
Yes |
| DAB-AF (Alternative frequency) |
Yes |
| Tuning mode / Seek mode |
Auto1/Auto2/Manual |
| Service preset |
6 ch * 3 bank presets |
| Preset list |
Yes |
| Auto service memory (AME) |
Yes |
| Service list by alphabet order |
Yes |
| Intelligent seek |
Yes |
| Ensemble seek |
Yes |
| Related service |
Yes |
| Traffic Information |
Yes |
| DAB-RDS integrated TI |
Yes |
| Announcement Switching (ASW) Select |
Yes |
| Audio interrupt standby by announcement |
Yes |
| DMB Audio (Digital multimedia broadcasting) |
Yes |
| Audio interrupt standby by PTY |
Yes |
| Soft linking |
Yes |
| Antenna power supply on/off switch |
Yes |
| DAB antenna included |
Yes |
| Digital Radio Certification Mark |
Yes |
| Playable Audio File |
|
| AAC (*.m4a) files are playable |
USB |
| AAC (*.aac) files are playable |
CD/USB |
| MP3 files are playable |
CD/USB |
| WMA (.wma) files are playable |
CD/USB |
| WAV (.wav) files are playable |
USB |
| FLAC files are playable |
USB |
| CD Features |
|
| CD-R/RW Compatible |
Yes |
| CD Text with special Character Support |
English(default) / Spanish / French / German / Russian / Greek |
| D.A.C. processing |
24bit |
| 0 bit Mute |
Yes |
| Random Function |
DISC Random/Random OFF |
| Repeat Function |
Track Repeat/All Repeat |
| USB Features |
|
| USB Type |
2.0 High speed |
| Repeat/Scan/Random search |
Yes |
| Repeat / Random Play |
Yes |
| Direct search |
Yes |
| Last Position Memory / Resume |
Yes |
| Time code display |
Yes |
| iPhone Features |
|
| Made for iPhone |
Yes |
| Music playback |
Yes |
| Alphabet search |
Yes |
| Skip search |
Yes |
| Related search |
Yes |
| Direct Search |
Yes |
| Control by hand |
Yes |
| App & iPod control mode |
Yes |
| Spotify App Link |
Yes |
| iAP over Bluetooth |
Yes |
| iTunes Radio App |
yes iAP1 |
| Reverse browsing |
Yes |
| Battery charge + power control |
Yes |
| * Always update to latest Apple firmware |
|
| Audio Features |
|
| Maximum Output Power |
50W x 4 |
| MOSFET Power IC |
Yes |
| Auxiliary Type |
Mini-jack, front panel |
| Pre-out |
3 RCA |
| Pre-out Output Level |
5V |
| Preout Rear / Subwoofer Switchable |
Yes |
| Subwoofer Reference Level Adj. |
Yes |
| 2-Way X'over network |
Yes |
| 3-Way x'over (bi-amp connection) |
Yes |
| Tone Control / Easy EQ |
13 band, 8 presets |
| Balance/Fader/Loudness Control |
Yes |
| Bass Boost Circuit |
Off/+1/+2/+3/+4/+5 |
| Att.(-20dB) with smooth Volume Return |
Yes |
| Easy 3-band EQ mode |
Yes |
| Graphic Equalizer + Preset |
13-Bands Graphic Equalizer with 8 Presets. |
| Digital Sound Processor (DSP) Built-in |
Yes |
| Digital Time Aligment (DTA) |
Yes |
| Low- & High-pass Filter |
Yes |
| Speaker Size Control |
Yes, Front/rear/subwoofer independently |
| Kenwood Sound Reconstruction |
Yes |
| Sound Reconstruction |
Yes |
| Space Enhancer |
Yes |
| Sound Realizer |
Yes |
| Stage EQ |
Yes |
| Drive EQ |
Yes |
| Bluetooth General Features |
|
| Bluetooth technology version |
V 4.2 |
| Max num. of regist. phones for HFP & A2DP |
5 phones |
| Hands Free Profile with High Sound Quality |
HFP V1.7.1 |
| 2 phones full time connection |
Yes |
| Audio Streaming (A2DP) |
Yes |
| High Quality Audio Streaming |
SBC/AAC |
| Serial Port Profile (SPP) |
Yes |
| Phonebook Access Profile (PBAP) |
Yes |
| iPhone & Android automatic pairing via USB |
Yes |
| KENWOOD Remote App Ready |
|
| KENWOOD Music Mix Support |
Yes |
| Amazon Alexa ready |
Yes |
| Catchphone / Call Waiting |
Yes |
| Private mode |
Yes |
| Alphabet Search (Phonebook) |
Yes |
| Noise Canceller |
Yes |
| Echo Canceller |
Yes |
| Phone device status display |
Yes |
| Signal strength display |
Yes |
| Remaining battery display |
Yes |
| High-quality noise canceling microphone |
Rear Wired |
| Bluetooth firmware upgradeable |
Yes |
| * depends on phone model/make |
& Kenwood unit |

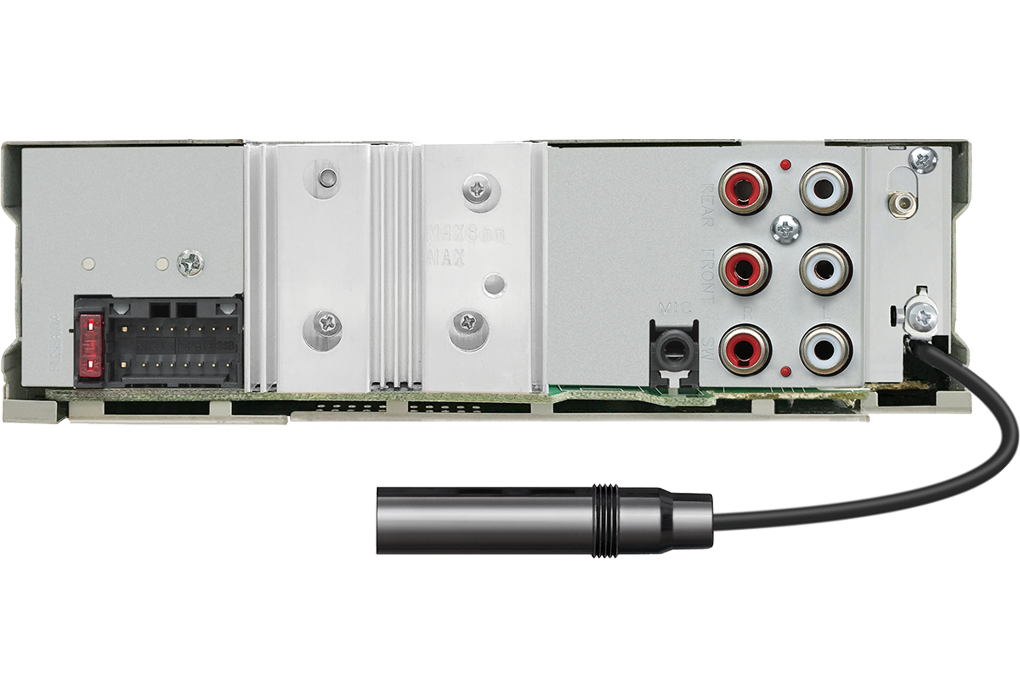

| Connectivity |
|
| Front USB & AUX Input |
Yes |
| DC-Cord |
Mitsumi to ISO |
| Power Control (P.CON) wire |
Yes |
| Amplifier pre-out |
3 x RCA: Front/Rear/Subwoofer |
| FM Antenna Input |
JASO connector |
| DAB Aerial input |
SMB connector |
| External microphone input |
3,5mm mini-jack |
| OEM Wired Remote Control ready |
Yes |
| Tuner Specifications |
|
| FM range: 87.5Mhz - 108MHz (50Khz step) |
Yes |
| FM Usable Sensitivity |
0.56μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity |
1.58μV/75ohm (S/N 46dBf) |
| FM Frequency Response |
30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) |
68dB |
| FM Stereo Separation (1kHz) |
40dB |
| MW range: 531kHz - 1611kHz (9kHz step) |
Yes |
| MW Usable Sensitivity |
28.5μV |
| LW range: 153kHz - 279kHz (9kHz step) |
Yes |
| LW Usable Sensitivity |
45μV |
| DAB Tuner specifications |
|
| Band III - Frequency range |
174.928 MHz - 239.2MHz |
| Sensitivity |
- 100dBm |
| Signal to noise ratio |
90dB |
| DAB Aerial Connector Type |
SMB |
| Output Voltage |
14.4V (10.5V to 16V allowable) |
| Maximum Current |
< 100 mA |
| Codec Specs |
|
| MP3 Format |
MPEG 1/2 Audio Layer 3-Files |
| WMA Format |
in accordance with Windows Media Audio |
| AAC Format |
AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files |
| WAV Format |
RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format |
FLAC files (up to 96kHz/24bit) |
| CD Specifications |
|
| Laser Diode |
GaAIAs |
| Digital Filter(D/A) |
8 Times Over Sampling |
| Digital/Analogue Converter |
24 Bit |
| Wow & Flutter |
Below Measurable Limit |
| Frequency Response |
20Hz ~ 20kHz (±1dB) |
| Total Harmonic Distortion |
0.01% (1kHz) |
| Signal to Noise Ratio |
97dB (1kHz) |
| Dynamic Range |
92dB |
| Channel Separation |
90dB |
| MP3 Decoder |
Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decoder |
Compliant with Windows Media Audio |
| AAC Decoder |
AAC-LC".aac" Files |
| USB Specifications |
|
| USB Version compatibility |
USB 1.1 / 2.0 full speed |
| File System |
FAT 32 / 16 / 12 |
| Maximum Supply current |
1500mA |
| D/A Converter |
24bit |
| MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode |
Compliant with Windows Media Audio |
| AAC Decode |
"m4a" & "aac" file encoded by AAC-LC format |
| WAV Decode |
Linear - PCM Files |
| flac Decode |
FLAC files up to 96kHz/24bit |
| Audio Specifications |
|
| Maximum Power |
50 W x 4 |
| Output Power (DIN45324,+B=14.4v) |
22 W x 4 |
| Preout Level |
5000 mV / 10 kOhm, |
| Preout Impedance |
≤ 600 Ohm |
| Speaker Impedance |
4 Ohm ~ 8 Ohm |
| AUX Frequency Response |
20 Hz ~ 20 kHz (±1dB) |
| AUX Maximum Input Voltage |
1000 mV |
| AUX Input Impedance |
30 kOhm |
| DSP Specifications |
|
| Frequency band - Front |
62.5Hz ~ 16kHz |
| Equalizer Gain |
–9db ~ +9db |
| Q Control |
0.25/ 0.50/ 1.00/ 2.00 |
| High Pass Filter frequency |
Through/50 ~ 220 (Hz) |
| High Pass Filter Slope |
-12/-18/-24 dB/Oct |
| Low Pass Filter frequency |
50 ~ 120(Hz)/Through |
| Low Pass Filter Slope |
-12/-18/-24 dB/Oct |
| Time Alignment |
0 — 610cm(2 cm step) |
| Car type control |
► OFF► COMPACT► Full SIZE CAR► WAGON► MINIVAN► SUV► MINIVAN LONG |
| Equalizer Type |
Graphic |
| Frequency band |
13 bands |
| Bluetooth specifications |
|
| Frequency |
2.402 - 2.48 GHz |
| Output power |
+4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range |
Line of sight approx. 10 meter |
| Audio Codec |
SBC/AAC |
| Accessories |
|
| Release keys |
2 pieces |
| Escutcheon |
Yes |
| Installation Sleeve |
Yes |
| DC cord (Mitsumi to ISO) |
15 cm |
| DAB antenna |
with 3 m cable |
| Handsfree Microphone |
with 3 m cable |
| General Specifications |
|
| Operating voltage |
14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption |
10A |
| Dark Current Consumption |
Below 1mA |
| Dimensions (WxHxD) |
182 x 53 x 155.5mm |
| Weight |
1200 gr. |
| Operation Temperature Range |
-10°C ~ 60°C |
| Instruction Manuals |
Multi-language quick Guide |
