Tired of thin, lifeless sound from cheap car speakers? The Kenwood KFC-PS1797, 17cm 2-way Performance Standard Series Speaker System brings clear, powerful audio to any vehicle. It replaces dull factory speakers and fills the cabin with music that feels alive. If you want music that matches the beat of your drive, this speaker is the answer.

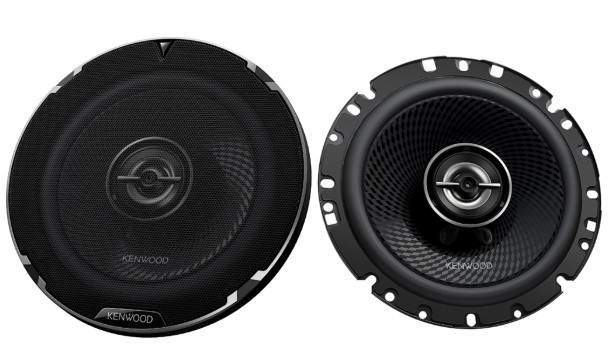

Kenwood KFC-PS1797, 17cm 2-way Performance Standard Series Speaker System
Many drivers struggle with weak bass and muffled highs, especially when listening to modern tracks. Poor sound makes long trips feel tiring and reduces enjoyment. The KFC-PS1797 solves this by delivering a balanced 2-way design that handles deep bass and crisp treble, so you hear every detail without strain.
Key Features
- 2-way coaxial design with 17 cm woofer and 30 mm tweeter.
- Diamond array pattern woofer cone for smooth bass dispersion.
- Peak input power 350 W, rated power 100 W for strong performance.
- Sensitivity 88 dB/W/m ensures loud output with modest power.
- Frequency response 73 Hz - 18 kHz covers most music needs.
- Ferrite magnet and neodymium tweeter magnet for efficient drive.
- Black-painted steel basket and rubber surround for durability.
- Acoustic sound harmonizer and sound field enhancer improve imaging.
- Factory fit includes screws, speed nuts, adhesive pad and grille.
- Includes 0.5 m speaker cable for quick connection.
Specifications
| Speaker Features |
|
| Speaker System |
2-way 2-speaker |
| Speaker Type |
Coaxial |
| Diamond Array Pattern Woofer Cone |
Yes |
| Sound Field Enhancer |
Yes |
| Acoustic Sound Harmonizer |
Yes |
| Black-painted Woofer Yoke Plate |
Yes |
| Factory Location Fit |
Yes |
| Speaker/woofer Specifications |
|
| Peak Input Power |
350W |
| Rated Input Power |
100W |
| Woofer Cone material |
Black Polypropylene (PP) Cone |
| Woofer cone dimensions |
170mm Ø |
| Speaker Basket |
Steel (Black painted) |
| Magnet type |
Ferrit (Ø85 x t12) |
| Speaker Surround |
Rubber |
| Sensitivity |
88dB/W/m |
| Frequency Response |
73Hz ~ 18000Hz |
| Speaker Impedance |
4Ω |
| Dimensions with Grill (WxHxD) |
179 x 179 x 66.2mm |
| Dimensions w/o Grill (WxHxD) |
165 x 165 x 54mm |
| Mouting Hole Diameter Ø |
139.6mm |
| Mounting Depth |
48mm |
| Tweeter Height |
6mm |
| Tweeter Specifications |
|
| Cone Size |
30mm |
| Cone Material |
Silver Balanced Dome |
| Magnet Type |
Neodymium |
| Accessories |
|
| Screws (Parker-type) |
Ø 4 x 25mm, 8 pieces |
| Speed nut |
φ 4, 8 pieces |
| Adhesive tape pad |
1 piece(s) |
| Grille assembly included |
Yes |
| Speaker cable |
0.5m |
