Feel the power of real bass without the hassle of extra amps or complicated wiring. The Kenwood KSC-PSW7EQ 160W Powered Enclosure Subwoofer with ACTIVE EQ TECHNOLOGY is a compact, ready-to-play speaker that turns weak low-end tones into deep, clear rumble. If your car or home audio sounds thin, you are missing the foundation that makes music feel alive. This subwoofer gives you that missing foundation in a single, easy-to-install box.

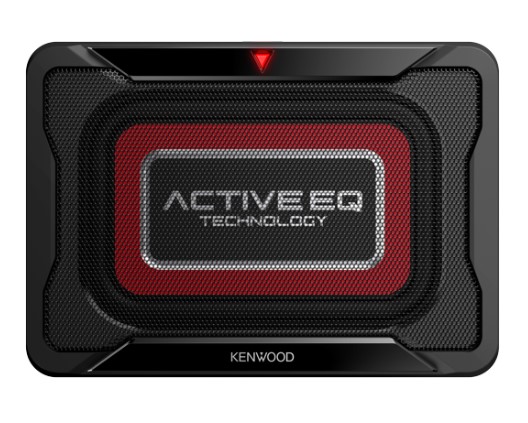

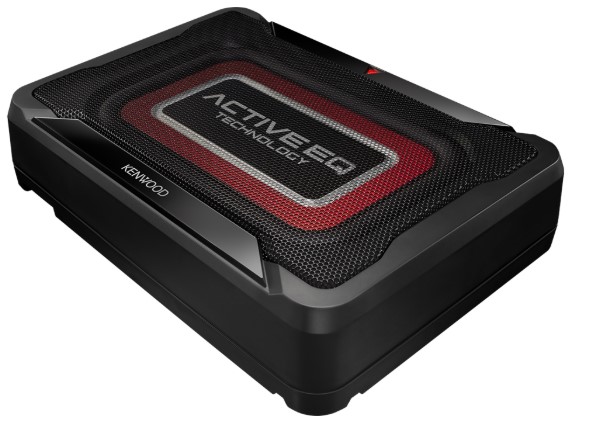

Kenwood KSC-PSW7EQ 160W Powered Enclosure Subwoofer with ACTIVE EQ TECHNOLOGY
Many drivers and listeners complain that their sound system lacks punch, especially at low frequencies. Weak bass makes vocals sound flat and road noise feel louder. The problem matters because music and movies lose impact, and you may miss important audio cues while driving. This Kenwood subwoofer solves the issue with a built-in 160 W Class D amplifier, active equalizer, and a sealed aluminum enclosure. Plug it in, set the remote, and the unit automatically adjusts to give you tight, controlled bass that matches any music style.
Key Features
- 160 W maximum output power for strong low-frequency impact.
- 200 130 mm aluminum woofer cone with high-roll urethane surround.
- Built-in Class D amplifier for efficient power use.
- Low-pass filter (50 Hz ~ 125 Hz) to keep only the bass range.
- Phase inverter (0 / 180) for flexible speaker placement.
- Built-in equalizer with ACTIVE EQ technology.
- Power indicator and remote control for easy monitoring.
- RCA line-in and speaker-level inputs for versatile connections.
- Signal-sensing auto-on/off to protect the system.
Specifications
| Speaker Features |
|
| Speaker System |
Active subwoofer system |
| Maximum Output Power |
160 W |
| Speaker Size |
200 x 130mm |
| Wired remote included |
Yes |
| Amplifier Included |
Built-in |
| Enclosure type |
Aluminum die-cast |
| Enclosure size (BxHxD) |
350 x 75 x 240 mm |
| Enclosure net weight |
2.6 kg |
| Amplifier Features |
|
| Class D Amplifier |
Yes |
| Maximum power output |
160W |
| Low-pass Filter |
Yes |
| Phase inverter 0°(Normal) / 180°(Reverse) |
Yes |
| Built-in Equalizer |
Yes |
| Power Indicator |
Yes |
| Signal Sensing Turn-on |
Yes |
| Line in |
RCA |
| Speaker level Input |
Yes |
| Chassis |
Aluminum Die-cast |
| |
Yes |

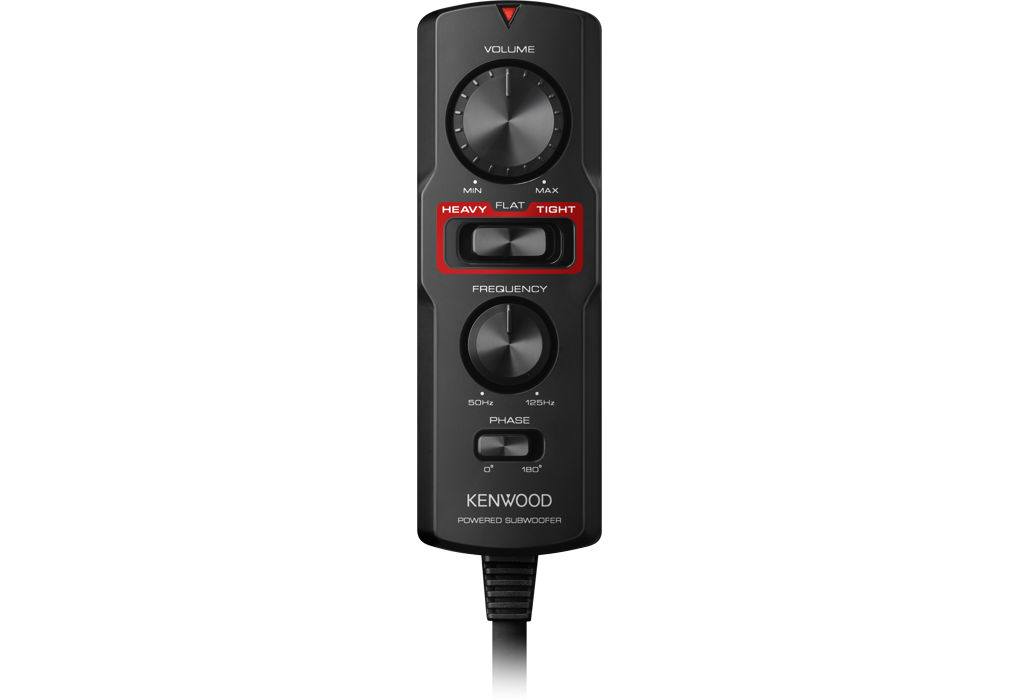

| Wired Remote Support |
Power indicator / Volume / Active EQ / Frequency / Phase |
| Speaker/woofer Specifications |
|
| Woofer Cone material |
Aluminum |
| Woofer cone dimensions |
200 x 130mm |
| Speaker Surround |
High-roll urethane |
| Sensitivity |
89dB/W/m |
| Frequency Response |
40Hz ~ 200Hz |
| Speaker Impedance |
1Ω |
| Amplifier-Specifications |
|
| Maximum power output (4Ω) |
160W x 1 |
| Low-pass Filter |
50Hz ~125Hz (-18dB) |
| Line-in Sensitivity |
20 mV |
| Speaker Input Sensitivity |
400 mV |
| Line-in Impedance |
22 kΩ |
| Speaker Input Impedance |
10 kΩ |
| Signal to Noise Ratio |
90dB |
| Frequency response (+0dB, -3dB) |
35Hz ~ 150Hz |
| Operating voltage |
14.4V (11V ～ 16V allowable) |
| Maximum current consumption |
5.9A |
