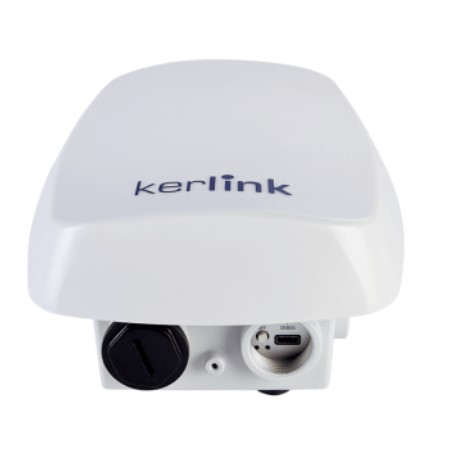

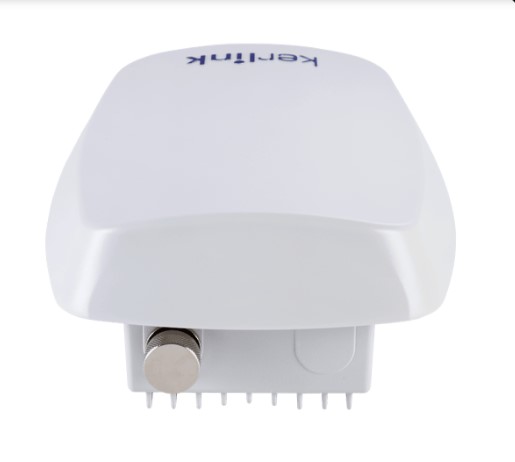

Kerlink PDTIOT-ISS04 Wirnet iStation 868 MHz LoRaWAN Gateway

Kerlink PDTIOT-ISS04 Wirnet iStation 868 MHz LoRaWAN Gateway

The Kerlink PDTIOT-ISS04 Wirnet iStation is an 868 MHz LoRaWAN gateway designed for reliable LoRa network connectivity. It supports 8-channel LoRa operation across the specified ISM frequency range of 863-874.4MHz.

The gateway includes LBT sniffer capability and built-in high rejection SAW filters to support stable radio communication. Its receiver provides a sensitivity of -141 dBm at SF12, while conducted TX power can be configured from 5dBm to 27 dBm.

For network connectivity, the PDTIOT-ISS04 supports 2G/3G/4G backhaul as well as Ethernet backhaul. The ARM Cortex A9 CPU, 256MB DDRAM, and 8GB eMMC provide the processing and storage resources for gateway applications.

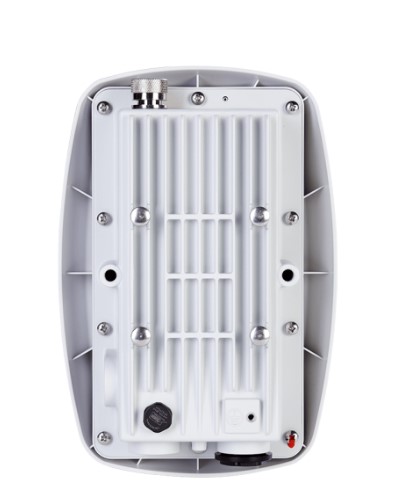

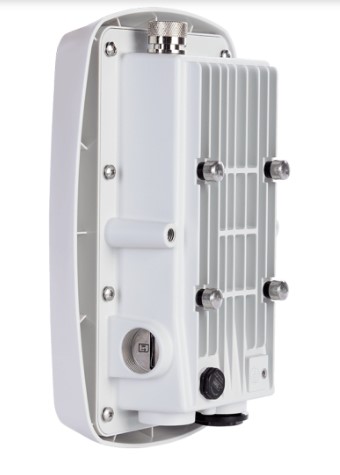

The Wirnet iStation is designed for outdoor and demanding environments with an operating range of -40°C +60°C and 95% humidity. Its IP67 casing combines an aluminium back, polycarbonate front, and stainless steel mounting kit for protection and installation.

The gateway also includes spectrum analysis compliance and a capacitor for clean shut down of applications in case of power failure. A surge protection option is available for the RF LoRa link, while its compact 265 x 165 x 100 mm design and 1.4kg weight with mounting kit support practical deployment.

Key Features

• 868 MHz LoRaWAN gateway with 8CH LoRa

• ISM frequency range: 863-874.4MHz

• Sniffer for LBT (Listen Before Talk)

• Built-in high rejection SAW filters

• Rx Sensitivity: -141 dBm (SF12)

• Conducted TX Power: configurable from 5dBm to 27 dBm

• 2G/3G/4G backhaul + ETH backhaul

• ARM Cortex A9 CPU with 256MB DDRAM

• 8GB eMMC with 6GB available for user

• Operating range: -40°C +60°C

• IP67 Alu (Back), Polycarbonate (Front), Inox (mounting kit)

• Size: 265 x 165 x 100 mm

• Weight: 1,4kg (mounting kit included)
