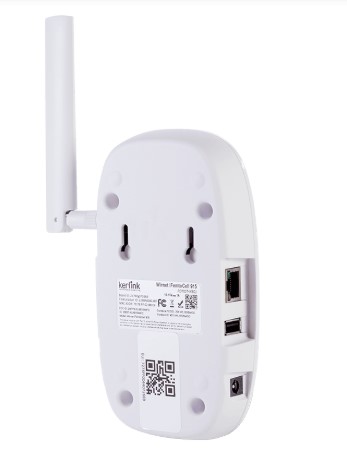

Kerlink Wirnet iFemtoCell PDTIOT-IFE00 863-874.4MHz LoRaWAN Gateway
The Kerlink Wirnet iFemtoCell PDTIOT-IFE00 is an 8-channel LoRaWAN gateway designed for indoor IoT connectivity in the 863-874.4MHz ISM frequency range. It supports Wi-Fi and Ethernet backhaul, providing flexible network connectivity for LoRaWAN deployments.
The gateway features a LoRa receiver sensitivity of -141 dBm at SF12, helping it receive low-power signals over extended distances. Its configurable transmission power ranges from 5dBm to 27dBm, allowing the gateway to be configured according to network requirements.
The Wirnet iFemtoCell includes a Listen Before Talk sniffer and spectrum analysis functionality. These features support monitoring and network operation in environments where radio spectrum conditions need to be evaluated.
Powered by an ARM Cortex A9 processor with 256MB DDRAM and 8GB eMMC storage, the gateway provides the processing and storage resources required for its LoRaWAN gateway functions. Of the 8GB eMMC storage, 6GB is available for user use.
With an IP30 casing, compact 160 x 90 x 35 mm dimensions, and a gateway-only weight of 163g, the Wirnet iFemtoCell is designed for indoor deployment. It operates from -20°C to +55°C and supports 5% to 95% humidity, making it suitable for a range of indoor LoRaWAN and IoT applications.
Key Features
-
8-channel LoRaWAN gateway for indoor IoT deployments
-
863-874.4MHz ISM frequency range
-
Wi-Fi backhaul and Ethernet backhaul support
-
Rx Sensitivity of -141 dBm at SF12
-
Configurable TX Power from 5dBm to 27dBm
-
Sniffer for LBT (Listen Before Talk)
-
Spectrum analysis compliant
-
ARM Cortex A9 CPU with 256MB DDRAM
-
8GB eMMC with 6GB available for user
Specifications
| Reference Designation |
|
| PDTIOT-IFE00 |
Wirnet iFemtocell 868 MHz 8CH LoRa, Indoor, Wifi backhaul + ETH backhaul 863-874.4MHz |
| Technical Features |
|
| Sniffer for LBT (Listen Before Talk) |
|
| |
Sniffer for LBT (Listen Before Talk), |
| Rx Sensitivity |
-141 dBm (SF12), |
| TX Power |
configurable from 5dBm to 27dBm, |
| Range |
-20°C +55°C, (for gateway only, without power supply), |
| Humidity |
5% to 95%, |
| Size |
160 x 90 x 35 mm, |
| Weight |
163g (Gateway only); 372g (with packing), |
| Spectrum analysis |
compliant, |
| Casing |
IP30, |
| CPU |
ARM Cortex A9, |
| DDRAM |
256MB, |
| eMMC |
8GB eMMC (6GB available for user). |
